Pulsar AWZ516 Manual

Time relay module
Hide thumbs

Advertisement

Quick Links

Download this manual
10 ÷ 16V DC power supply
18 time-logic programs
The range of measured times: up to 100 hours
High precision time measurements
High load capacity of relay contacts
LED display
Three function buttons
Activated by plus "S +" or mass "S-"
Reset input activated by mass "R-"
Optical indication of power supply and relay output status
The possibility of implementing additional time-logic programs
Warranty - 2 year from the production date

TABLE OF CONTENTS.

1.
General description. ....................................................................................................................................... 1
2.
Components arrangement. ............................................................................................................................ 2
3.
Programming the time module. ..................................................................................................................... 3
4.
Preview - the parameters of currently set program. .................................................................................... 4
5.
Previewing the status. .................................................................................................................................... 4
6.
Timer programs. .............................................................................................................................................. 5
7.
Programming example. ................................................................................................................................ 10
The time module is factory set to PR0 program mode with active REL relay.

1. General description.

The PC1 time module is a transceiver allowing execution of time-logic programs. The device is
characterized by versatility, high accuracy of the measured time based on the crystal oscillator and the possibility
of its precise and repeatable adjustment. The relay can be used to extend short control impulses, e.g. controlling
the operation locks, electromagnetic jumpers, bistable control, etc. The relay is used in automation and control
circuits and access control projects, with logical dependencies on the state of: the controller, door opening sensor
(reed switch), exit button, etc.
AWZ516
v.2.1
PC1
Time relay module.
Edition: 5 from 01.03.2018
Supersedes the edition: 4 from 15.01.2015
Features:
1
EN*

Advertisement

loading
Need help?

Need help?

Do you have a question about the AWZ516 and is the answer not in the manual?

Questions and answers

Related Manuals for Pulsar AWZ516

Summary of Contents for Pulsar AWZ516

  • Page 1: Table Of Contents

    AWZ516 v.2.1 Time relay module. Edition: 5 from 01.03.2018 Supersedes the edition: 4 from 15.01.2015 Features:  10 ÷ 16V DC power supply  18 time-logic programs  The range of measured times: up to 100 hours  High precision time measurements ...

  • Page 2: Components Arrangement

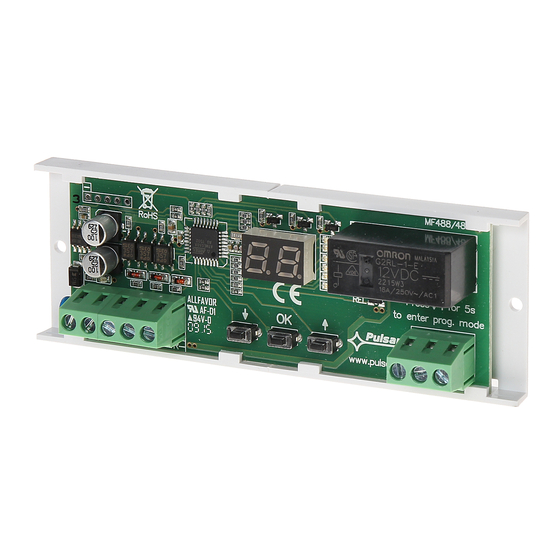

    2. Components arrangement. The figure below shows the arrangement of the most important components and connectors of the relay module. Fig. 1. The module’s view. Table 1. The description of components and connectors of the module. Number Description [Fig. 1] Connector: +12V- - the module’s power supply, DC voltage - control input supplied by the positive power supply...
