connector for direct connection of YAp lead
video signal's detection
four channels of video input/output
four channels of power supply (max. 4x1A)
warranty – 5 year from the production date
1. Technical description.
The 4-channel video module is intended for CCTV systems where the video signal and the cameras' supply are
delivered through Yap cables. The module enables connecting 4 camcorders and 4 independent power supply units
which can work within the same earth potential. MSEP412 does not have galvanic insolation, either between the input
and the output, or between individual channels. The module is intended for working in connection with the
PSBSEP04124 power supply unit, featuring 4 supplying channels with independent adjustment of output voltage,
within the range of 12÷18V
MSEP video module 4 channels
Features:

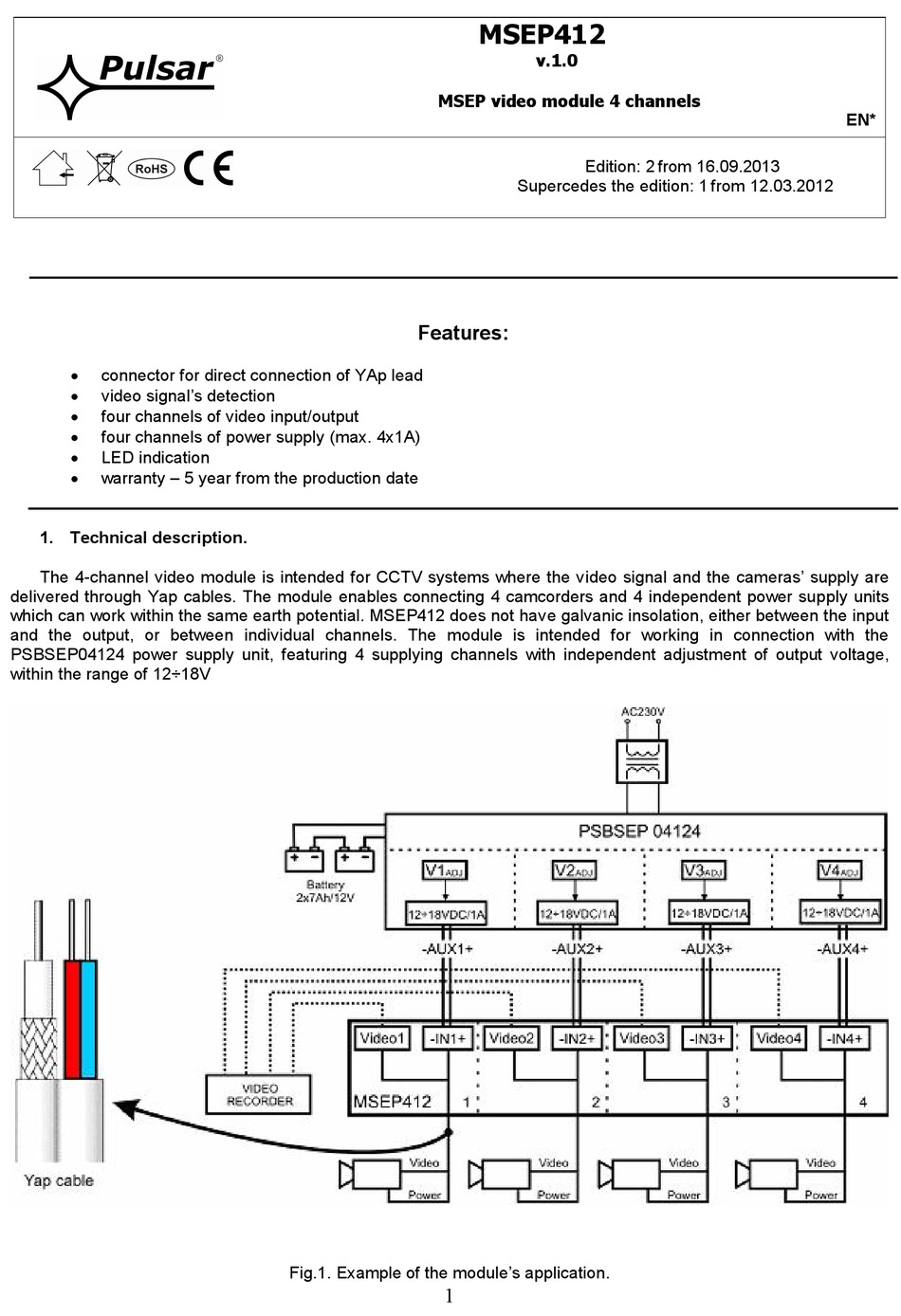

Fig.1. Example of the module's application.
1
MSEP412
v.1.0
Edition: 2 from 16.09.2013
Supercedes the edition: 1 from 12.03.2012
EN*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pulsar MSEP412
Summary of Contents for Pulsar MSEP412
- Page 1 Yap cables. The module enables connecting 4 camcorders and 4 independent power supply units which can work within the same earth potential. MSEP412 does not have galvanic insolation, either between the input and the output, or between individual channels. The module is intended for working in connection with the PSBSEP04124 power supply unit, featuring 4 supplying channels with independent adjustment of output voltage, within the range of 12÷18V...

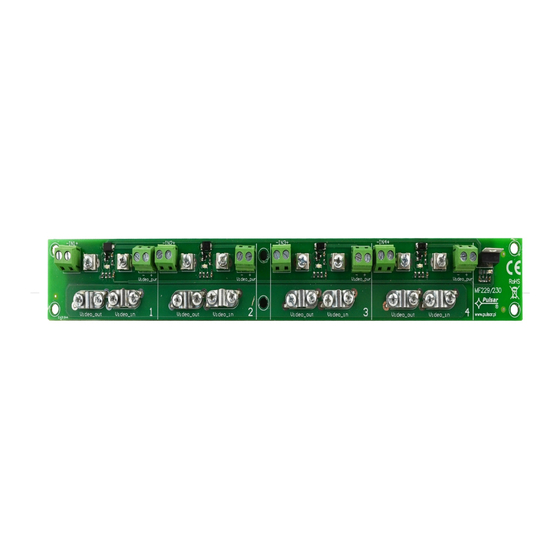

- Page 2 Video1_pwr…Video4_pwr – output voltage for supplying the cameras LED L1…L4 – yellow diodes indicating presence of video signal in individual video channels Fig.2. The view of the MSEP412 video module. 2. Specifications: - electrical specifications (tab.2) - mechanical specifications (tab.3) - operating specifications (tab.4)
- Page 3 3. Installation. 3.1. Requirements. The module is to be mounted by a qualified installer, holding relevant permits and licenses (applicable and required for a given country) for 230V/AC interference and low-voltage installations. The unit should be mounted in confined spaces, in accordance with the 2nd environmental class, with normal relative humidity (RH=90% maximum, without condensation) and temperature from -10°C to +40°C.
- Page 4 WEEE separately. GENERAL WARRANTY CONDITIONS 1. Pulsar K. Bogusz Sp.j. (the manufacturer) grants a five-years warranty for the equipment, counted from the device’s production date. 2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the manufacturer’s discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects,...
