User Manual

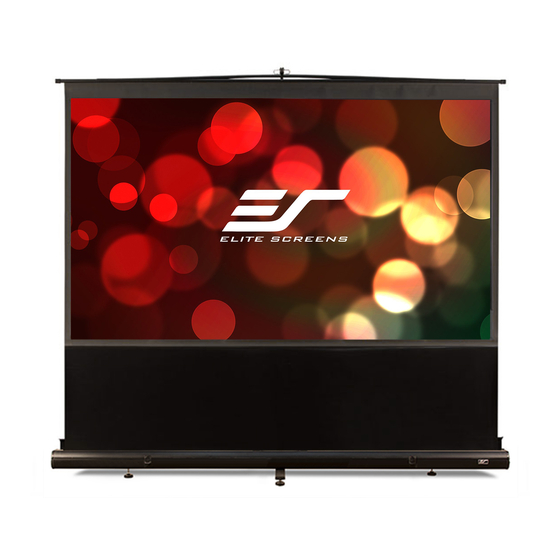

Portable Floor Pull-Up Screen
Elite ez Cinema Series
FOR MODELS: F60NWV / F72NWV / F84NWV / F100NWV /
F84NWH / F100NWH
USER'S GUIDE
MATTE WHITE
Rev. 1.0
Advertisement
Related Manuals for Elite Screens F100NWH
Summary of Contents for Elite Screens F100NWH

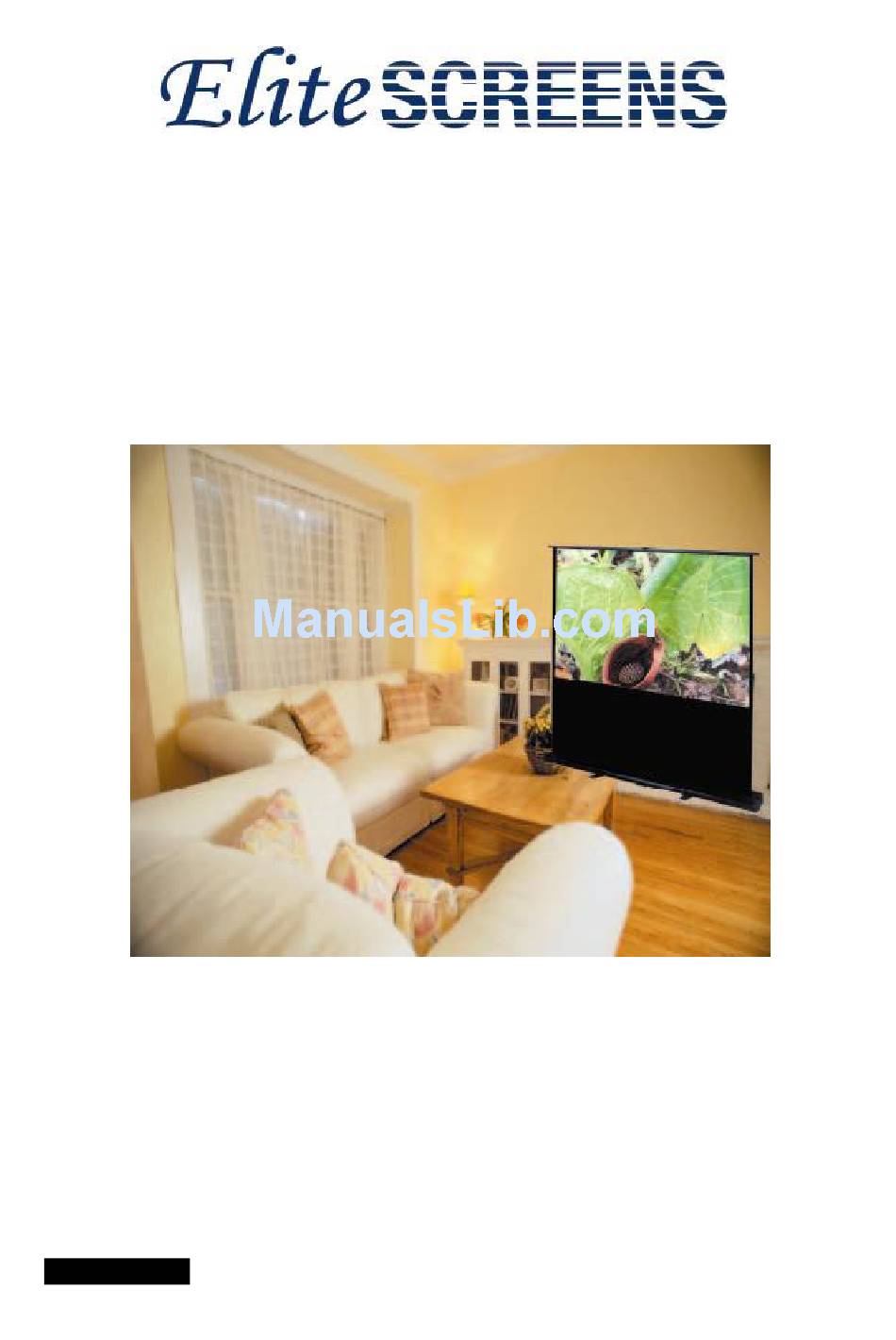

- Page 1 Portable Floor Pull-Up Screen Elite ez Cinema Series FOR MODELS: F60NWV / F72NWV / F84NWV / F100NWV / F84NWH / F100NWH USER’S GUIDE MATTE WHITE Rev. 1.0...
-
Page 2: Parts Identification
PARTS IDENTIFICATION: Precautions: Warning! Physical injuries can result from operation errors and damage to the screen if the following precautions are not taken seriously. Do not place screen near or beside a fireplace or high temperature objects such as a gas stove to avoid damage to the screen or prevent a fire. Rev. - Page 3 Place the screen beyond the reach of children. Operation instructions: Installation: The screen should be installed in an area free of very strong wind and away from any fire activity such as a fireworks display. Extending base feet: Locate the base feet on the bottom of the box cover of each end and rotate the footboard until it forms a right angle between the footboard and the cover box.
- Page 4 Installing the supporting rod: First, make sure that the hanging hook is facing the front face of the screen, then insert the square end of the supporting rod at the fixing plate as shown below. Pull out the screen: Hold the pull hook at the upper scroll with one hand to pull the screen gently and hang it on the hanging hook.
- Page 5 Adjusting the screen: When the screen has been stretched to the desired position, fix the small supporting rod with the left hand and rotate the locking sleeve clockwise while holding it tightly with the right hand till the rod is properly locked. Screen completely assembled Rev.
- Page 6 Preparing screen for storage 1. Pulling down the screen: First, hold the small supporting rod with the left hand and loosen the locking sleeve counter-clockwise with the right hand. Then pull the small supporting rod upwards about one centimeter and bring down the supporting rod downwards slowly.
- Page 7 4. Storing the supporting rod Properly place the supporting rod in the middle of the box to avoid in unbalanced position. 5. Draw the base feet back: Slightly lift one end of the box and turn the two feet at the bottom of the box till they are in a parallel line with the box.
- Page 8 *(see exceptions below) after the DOA unit is received and/or confirmed defective. Once the product is received, Elite Screens will send out a new *unit to the customer by ground service (subject to inventory availability). Should a problem be reported after the 7-day grace period, the item must be shipped to us for warranty repair.
- Page 9 Fill this in!! For the convenience of service, record the following information in the space below. The serial number can be located on the packaging box or inside the screen’s box. Screen Model: Serial Number: Date of Purchase: Dealer / Reseller Purchased from: Tel: 562-483-8198 www.elitescreens.com service@elitescreens.com...
