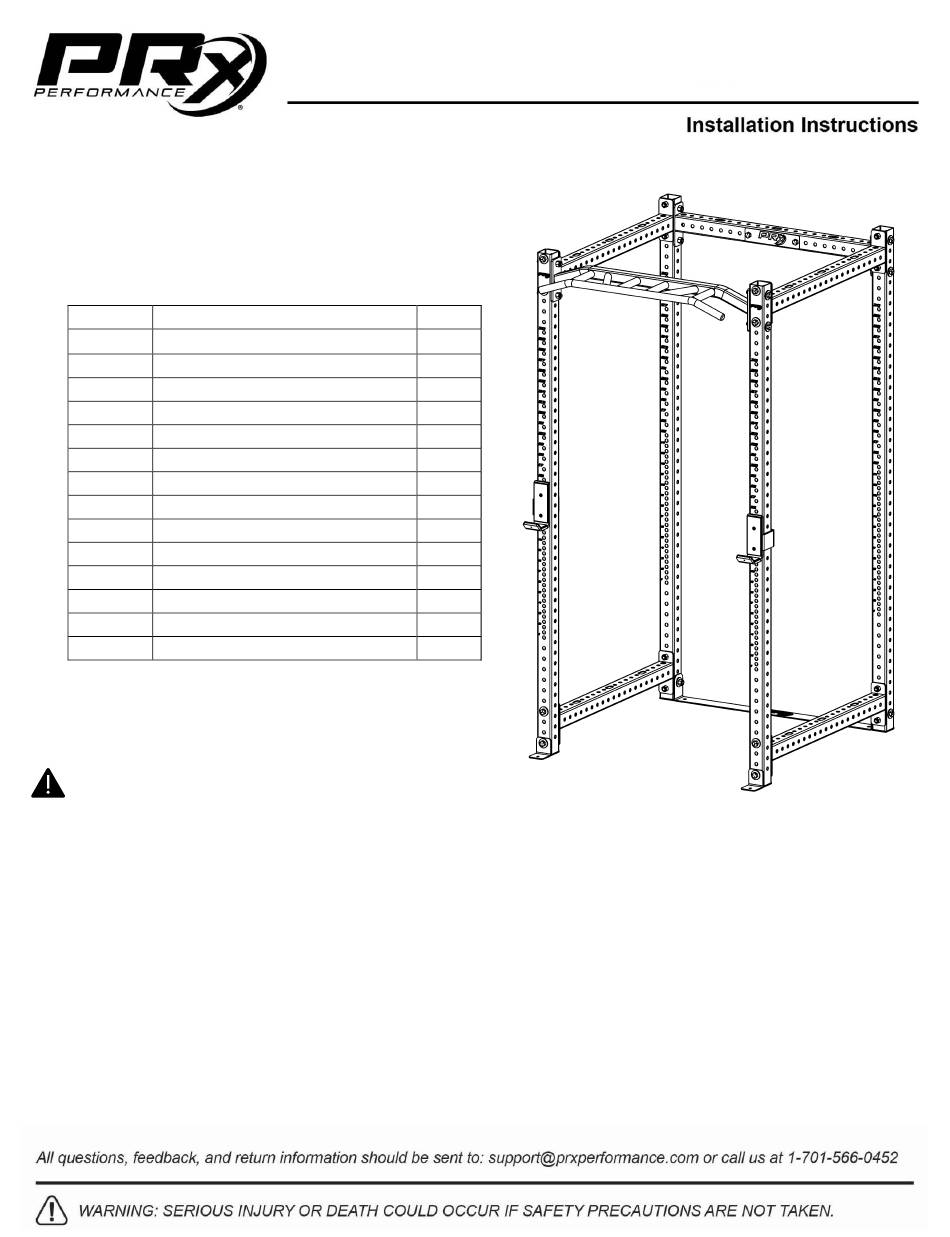

PRx Performance Build Limitless Full Cage Installation Instructions

Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
Tool List
• 15/16" Box End Wrench
• 15/16" Socket
• Ratchet or Impact Driver
Item #
Description
1
Upright (numbers on 1 side)
2
Multi-Grip Pull-Up Bar
3
Crossmember
4
Upright (numbers on 2 sides) 2
5/8" Nylock Nut
5
5/8" Flat Washer
6
5/8" x 4-1/4" Hex Bolt
7
8
L - Foot
5/8" x 4-1/2" Hex Bolt
9
10
J-Cup Pair
11
PRx Logo Plate
12
Logo Plate Backer
13
Floor Spreader Plate
5/8" x 4" Hex Bolt
14
WARNING
• Read all assembly, installation and use instructions in this manual prior to using this equipment.
• Inspect equipment prior to use. DO NOT use if it appears damaged or inoperable
• Use equipment only for the intended use DO NOT modify the machine
• DO NOT attempt to fix broken equipment. Call or email PRx Performance for assistance.
• SQUAT RACK MUST BE BOLTED TO THE GROUND
Save this manual for future reference.
Build Limitless Full Cage
Qty.
2
1
5
28
26
20
2
6
1
1
1
1
2
®
060325_Rev. 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Build Limitless Full Cage and is the answer not in the manual?

Questions and answers

Related Manuals for PRx Performance Build Limitless Full Cage

Summary of Contents for PRx Performance Build Limitless Full Cage

  • Page 1 • Inspect equipment prior to use. DO NOT use if it appears damaged or inoperable • Use equipment only for the intended use DO NOT modify the machine • DO NOT attempt to fix broken equipment. Call or email PRx Performance for assistance. • SQUAT RACK MUST BE BOLTED TO THE GROUND Save this manual for future reference.
  • Page 2 Rack Assembly (Rear): 1. Attach Crossmembers (3) to the top of the rear Uprights (1) with the hardware shown. Figure 1, Detail A NOTE 1: Numbers and PRx Logo shown facing the front of the rack. Customers can choose to rotate the uprights 180 degrees, so they are facing the rear of the rack.
  • Page 3 Rack Assembly (Rear): Figure 1...
  • Page 4 Rack Assembly (Front): 1. Attach the front Uprights (4) to the front of the Crossmembers (3) with hardware shown. Figure 2 Details, C & D 2. Attach the L-Feet (8) to the front of the uprights with hardware shown. Figure 2, Detail D 3.
  • Page 5 Attach Logo Plate and J-Cups: 1. Attach PRx Logo Plate (11) and Backer Plate (12) with hardware shown. Figure 4, Detail F 2. Attach J-Cups (10) onto your uprights. Figure 3...
