- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Edimax GS-3008P o cerca il tuo prodotto tra le migliori offerte di Switch GS-3008P User Manual 11-2017 / v1.0...
-
Page 2: Table Of Contents
CONTENTS Chapter 1 Safety and Regulatory ............4 Chapter 2 Introduction ................. 5 Overview ..........................5 Package contents ........................5 Features ..........................6 Product Components ......................7 2-4-1 Ports ..........................7 2-4-2 LED Indicators ........................ 8 Chapter 3 Installation ................9 Placement Tips ........................ - Page 3 Rate Limiting ........................28 5-10 Loop Detect/Prevent ......................29 5-11 IGMP Snooping ........................30 5-12 PoE ............................31 5-12-1 PoE Port Configuration ....................32 5-13 Password ..........................33 5-14 Logout ..........................33...
-
Page 4: Chapter 1 Safety And Regulatory
Safety and Regulatory Audience This guide is for the networking professionals in managing the standalone GS-3008P switch series. It is recommended that only professionals with experience in Edimax networking devices and who are familiar with the Ethernet and local area networking terminology to... -
Page 5: Chapter 2 Introduction

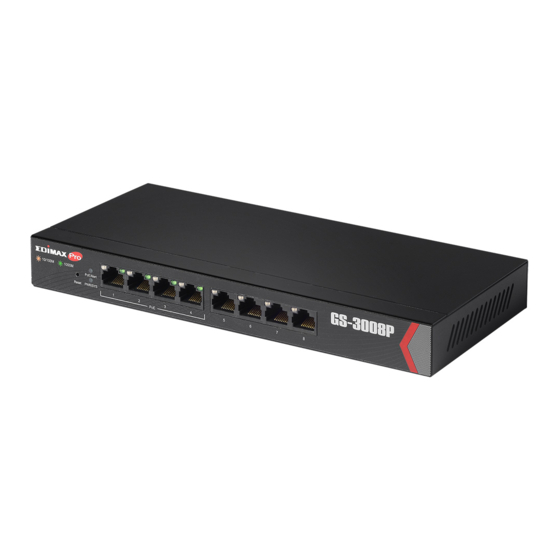

Web Smart web-based software. Overview The GS-3008P is a PoE+ web managed switch with 8 Gigabit Ethernet ports. The 1-4 port takes the POE function. The Giga Ethernet Switch provides a seamless network connection with integrated 1000Mbps Gigabit Ethernet, 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities. -
Page 6: Features
Features IEEE 802.3af/at PoE compliant. Five Gigabit Ethernet ports. Up to 30W per port (total power budget: 72W) for powering PoE-enabled devices. Auto-detection of powered devices (PD) and power consumption levels. Auto fault-detection on over/under current & voltage. ... -
Page 7: Product Components
Product Components 2-4-1 Ports The following view applies to GS-3008P. Figure 1 GS-3008P Front View Figure 2 GS-3008P Rear View No. Name Description Reset button Press seconds to restore factory default parameters. Ethernet (LAN) PoE PoE ports, compatible with IEEE 802.3af, with dedicated internal power. -
Page 8: Led Indicators
2-4-2 LED Indicators The following view applies to GS-3008P. Figure 3 LED Indicators Name Description Green LED: • Off: power off or fail PWR/SYS • On: power on • Blinking: system boot-up Green LED: • Off: power off or fail POE/Alert •... -
Page 9: Chapter 3 Installation
Chapter 3 Installation This chapter describes how to install and connect your Edimax Switch. Read the following topics and perform the procedures in the correct order. Incorrect installation may cause damage to the product. Placement Tips Ambient Temperature – To prevent the switch from overheating, do not operate it in an area that exceeds an ambient temperature of 122°F (50°C). -
Page 10: Chapter 4 Getting Started
Chapter 4 Getting Started This section provides an introduction to the web-based configuration utility, and covers the following topics: Powering on the device Connecting to the network Power over Ethernet (PoE) considerations Starting the web-based configuration utility Power 4-1-1 Connecting to Power The switch is powered by the DC 100-240 V 50/60Hz internal high-performance power supply. -
Page 11: Connecting To The Network
4-1-2 Connecting to the Network To connect the switch to the network: 1. Connect an Ethernet cable to the Ethernet port of a computer 2. Connect the other end of the Ethernet cable to one of the numbered Ethernet ports of the switch. -
Page 12: Power Over Ethernet (Poe) Considerations
4-1-3 Power over Ethernet (PoE) Considerations For PoE switch models, consider the following information: Devices considered a Power Sourcing Equipment (PSE), can support up to 30 Watts per PoE port on ports 1 to 4 and 30 Watts per PoE port on other ports to a Powered Device (PD). Model Power Dedicated to PoE PoE Ports... -
Page 13: Starting The Web-Based Configuration Utility
4-1-4 Starting the Web-based Configuration Utility This section describes how to navigate the web-based switch configuration utility. 4-1-5 Browser Restrictions If you are using older versions of Internet Explorer, you cannot directly use an IPv6 address to access the device. You can, however, use the DNS (Domain Name System) server to create a domain name that contains the IPv6 address, and then use that domain name in the address bar in place of the IPv6 address. -
Page 14: Logging In
Logging In The default username is admin and the default password is 1234. The first time that you log in with the default username and password, you are required to enter a new password. When the login attempt is successful, the System Information Status window displays: Figure 8 System Information Status If you entered incorrect username or password, an error message appears and the Login page remains displayed on the window. -
Page 15: Chapter 5 Web-Based Switch Configuration
Chapter 5 Web-based Switch Configuration The PoE Smart-Lite switch software provides rich Layer 2 functionality for switches in your networks. This chapter describes how to use the web-based management interface (Web UI) to configure the switch’s features. For the purposes of this manual, the user interface is separated into two sections, as shown in the following figure: Figure 9 User Interface No. -
Page 16: System Information
System Information Use this page to view status information such as Device Name, MAC address, IP Address and loop status. To view the System Information menu, navigate to System Information. Figure 10 System Information Item Description Model Name Switch model name. Device Name System name of the switch, configurable according to user preference. -
Page 17: Management
Management Use this page to reset the switch to original factory default settings, reboot the switch, backup and restore switch settings, and upgrade firmware. To view the Management menu, navigate to Management. Figure 11 Management Item Description DHCP Enable Obtain an IP address automatically. Disable Use a static IP address Management... -
Page 18: Port
Port Use this page to view traffic information such as Speed, Connection,TX, RX, on each port. The tracking data on each port can also be reset. To view the Port menu, navigate to Port. Figure 12 Port Item Description Port Designated port number. -
Page 19: Vlan
VLAN Use this section to create and modify VLANs. 5-4-1 IEEE 802.1Q VLAN To view the IEEE 802.1Q VLAN menu, navigate to VLAN. Figure 13 VLAN Item Description Apply Click Apply to save the values and update the screen. Port Designated port number. -
Page 20: Link Aggregation
Link Aggregation Use this option to aggregate multiple Ethernet ports together to form a logical port. This feature supports static allocation and Link Aggregation Control Protocol . To view the Link Aggregation menu, navigate to Link Aggregation. Figure 14 Link Aggregation Item Description Apply... -
Page 21: Port Mirror
Port Mirror Port mirroring selects the network traffic for analysis by a network analyzer. This is done for specific ports of the switch. As such, many switch ports are configured as source ports and one switch port is configured as a destination port. To view the Mirror menu, navigate to Mirror. -
Page 22: Qos
Use this section to configure Quality of Service (QoS) settings. 5-7-1 Disable QoS To view the Disable QoS menu, navigate to QoS > Disable QoS. Figure 16 QoS > Disable QoS Item Description Disable QoS Enable/disable QoS. Port-Based QoS Click to select port-based QoS settings. IEEE 802.1p QoS Click to enter IEEE 802.1Q QoS settings. -
Page 23: Port-Based Qos
5-7-2 Port-Based QoS To view the Port-Based QoS menu, navigate to QoS > Port-Based QoS Figure 17 QoS > Port-Based QoS Item Description Disable QoS Enable/disable QoS. Port-Based QoS Click to select port-based QoS settings. IEEE 802.1p QoS Port-Based QoS Port Designated port number. - Page 24 To view the Port-Based QoS menu, navigate to QoS > Port-Based QoS Figure 18 QoS > Port-Based QoS Item Description Disable QoS Enable/disable QoS. Port-Based QoS Click to select port-based QoS settings. IEEE 802.1p QoS Port-Based QoS. Port Designated port number. According to the resource allocation strategy of the system to choose the Scheduler Method allocated algorithm as Strict Priority or WFQ.
-
Page 25: Ieee 802.1P Qos
5-7-3 IEEE 802.1p QoS To view the IEEE 802.1p QoS menu, navigate to QoS > IEEE 802.1p QoS. Figure 19 QoS > IEEE 802.1p QoS Item Description Disable QoS Enable/disable QoS. Port-Based QoS Click to select port-based QoS settings. IEEE 802.1p QoS Click to enter IEEE 802.1Q QoS settings. - Page 26 To view the IEEE 802.1p QoS menu, navigate to QoS > IEEE 802.1p QoS Figure 20 QoS > IEEE 802.1p QoS Item Description Disable QoS Enable/disable QoS. Port-Based QoS Click to select port-based QoS settings. IEEE 802.1p QoS Click to enter IEEE 802.1Q QoS settings. Port Designated port number.
-
Page 27: Storm Control
Storm Control This page allows you to set ingress port monitoring. To view the Storm Control menu, navigate to Storm Control. Figure 21 Storm Control Item Description Set Broadcast storm control limit: • Broadcast Unlimited • 512Kbp/s to 512Mbp/s Set Multicast storm control limit: •... -
Page 28: Rate Limiting
Rate Limiting This page allows you to display and configure ingress and egress port monitoring settings. Use this page to configure ingress and egress rate limit settings. To view the Rate Limiting menu, navigate to Rate Limit. Figure 22 Rate Limit Item Description Apply... -
Page 29: Loop Detect/Prevent
5-10 Loop Detect/Prevent Use this section to enable/disable and configure network routing loop detection. Select settings from the drop down menu. To view the Loop Detection/Prevention menu, navigate to Loop Detection/Prevention. Figure 23 Network > Loop Detection Item Description Disable loop detection and prevention. Loop Detection Enable loop detection. -
Page 30: Igmp Snooping
5-11 IGMP Snooping Use this section to create an IGMP Snooping Profile. Internet Group Management Protocol (IGMP) Snooping is a feature that allows a switch to forward multicast traffic intelligently on the switch. Multicast IP traffic is traffic that is destined to a host group. Host groups are identified by class D IP addresses, which ranges from 224.0.0.0 to 239.255.255.255. -
Page 31: Poe
5-12 Use this section to configure PoE settings for the switch and its ports. PoE Global Settings and PoE Status To view the PoE Global Settings and PoE Status menu, navigate to PoE. Figure 25 PoE Menu Item Description PoE Global Settings Enter values for PSE1 and PSE2, for a total PSE power which must not PSE Total Power exceed 60W. -
Page 32: Poe Port Configuration
5-12-1 PoE Port Configuration To view the PoE Port Configuration menu, navigate to PoE > PoE Status and click on an individual port number. Figure 26 PoE > PoE Status > Port Number Item Description Port Designated port number. Use the drop down menu to select port power supply options: •... -
Page 33: Password
5-13 Password Use these settings to change an account password. To view the Password menu, navigate to Password. Figure 27 Password Item Description Confirm Click Confirm to save the values and update the screen. Old Password Enter current password. New Password Enter new password. - Page 34 COPYRIGHT Copyright Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co., Ltd.
- Page 35 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 36 This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment.
- Page 37 EU Declaration of Conformity English: This equipment is in compliance with the essential requirements and other relevant provisions of Directive 1995/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC. Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive 1995/5/CE, 2009/125/CE, 2006/95/CE, 2011/65/CE. Čeština: Toto zařízení...
- Page 38 Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European R&TTE directives. Equipment: GS-3008P PoE+ Web Smart Switch Model No.: GS-3008P The following European standards for essential requirements have been followed:...
- Page 39 Notice According to GNU General Public License Version 2 This product includes software that is subject to the GNU General Public License version 2. The program is free software and distributed without any warranty of the author. We offer, valid for at least three years, to give you, for a charge no more than the costs of physically performing source distribution, a complete machine-readable copy of the corresponding source code.
- Page 40 We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software. Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for this free software.
- Page 41 b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
- Page 42 If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.
- Page 43 limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License. 9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.
