- Page 1 16/24/32 Port 10/100Mbps Fast Ethernet Switch ES-3116RL ES-3124RL ES-3132RL User’s Manual...
-
Page 2: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the instructions provided with the equipment, may cause interference to radio and TV reception. The equipment has been tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference in a... - Page 3 Contents Chapter 1 Introduction ........1 Chapter 2 Features & Specifications ....2 Chapter 3 Package Contents ......4 Chapter 4 Physical Description ....…5 Chapter 5 LED Status …………....…7 Chapter 6 Installation ........…8 Chapter 7 Trouble-shooting ......…9...

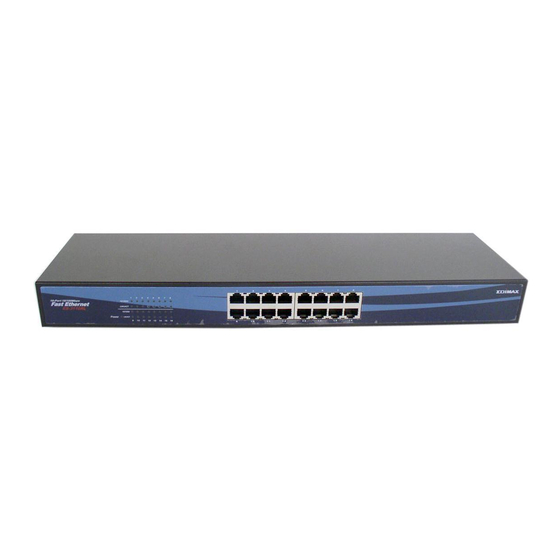

- Page 4 Congratulations on your purchase of this Fast Ethernet Switch. This high performance switch provides Fast Ethernet ports to segment network traffics, extend Fast Ethernet connection distance, and convert data packets between different transmission speeds. This switch utilize stored-and-forward switching architecture that filters and forwards data after the complete data packet is received and examined to be free of errors.
- Page 5 (1) Features Comply with IEEE 802.3 10BaseT Ethernet and 802.3u 100BaseTX Fast Ethernet standards. Simple and economical way to bridge 10BaseT network and 100BaseTX network. IEEE 802.3x compliant flow control for full duplex and Backpressure for half duplex. All of RJ-45 ports support 10BaseT/100BaseTX and Full-Duplex /Half-Duplex Auto-negotiation function.
- Page 6 Standards : IEEE 802.3 10BaseT and 802.3u 100BaseTX 10/100Mbps UTP Ports : ES-3116RL - RJ-45 x 16 with Auto-MDI/MDI-X ES-3124RL - RJ-45 x 24 with Auto-MDI/MDI-X ES-3132RL - RJ-45 x 32 with Auto-MDI/MDI-X Switching Architecture : Store and Forward Filter/Forward Rate : 148,800 packets/sec.
-
Page 7: Rackmount Accessories
One Fast Ethernet Switch One power cord One user’s manual Rackmount accessories S-3116RL FDX/COL 100M LNK/ACT FDX/COL 100M Power LNK/ACT 11 12 13 14 15 S-3124RL 9 10 11 12 FDX/COL 100M LNK/ACT FDX/COL 100M Power LNK/ACT 13 14 15 16 17 18 19 20 21 22 23 24 S-3132RL FDX/COL 100M... - Page 8 (1) Panel 10BaseT/100BaseTX Por FDX/COL Front View 100M LNK/ACT FDX/COL 100M Power LNK/ACT 11 12 13 14 15 COL/FDX LED -3116RL 100Mbps LED Power LED LNK/ACT LED Rear View Power Connector 10BaseT/100BaseTX Port 9 10 11 12 FDX/COL Front View 100M LNK/ACT FDX/COL...
- Page 9 FDX/COL Front View 100M LNK/ACT FDX/COL 100M Power LNK/ACT COL/FDX LED FDX/COL -3132RL 100M LNK/ACT FDX/COL 100M Power LNK/ACT Power LED 100Mbps LED LNK/ACT LED Rear View Power Connector...
-
Page 10: Led Status
Status Description Power is supplied (Power) No power A valid link is established LNK/ACT Flash Data packets received (Link/Activity) No link is established This port run at 100Mbps 10/100M Not connected or run at 10Mbps This port run at Full Duplex COL/FDX Flash Collision detected in this segment... -
Page 11: Operating Environment
1. Operating Environment This switch must be installed and operated within the limits of specified operating temperature and humidity (see previous section under Specifications). Do not place objects on top of the unit. Do not obstruct any vents at the sides of the unit. Do not position the unit near any heating source such as heater, radiator, or direct exposure to sun. - Page 12 1. Power LED is not lit • Check if the power cord is properly connected to the power outlet and the hub. Make sure the power switch on the hub is turned ON. 2. 100M UTP Link is not lit when connect to 100Mbps device •...
