Summary of Contents for PRO SIGNAL PSG3084

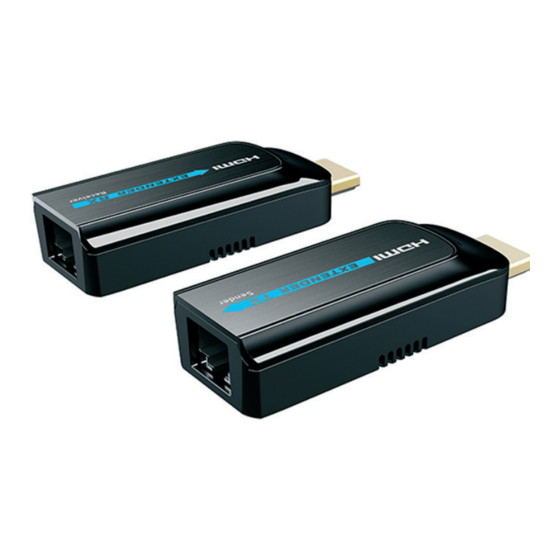

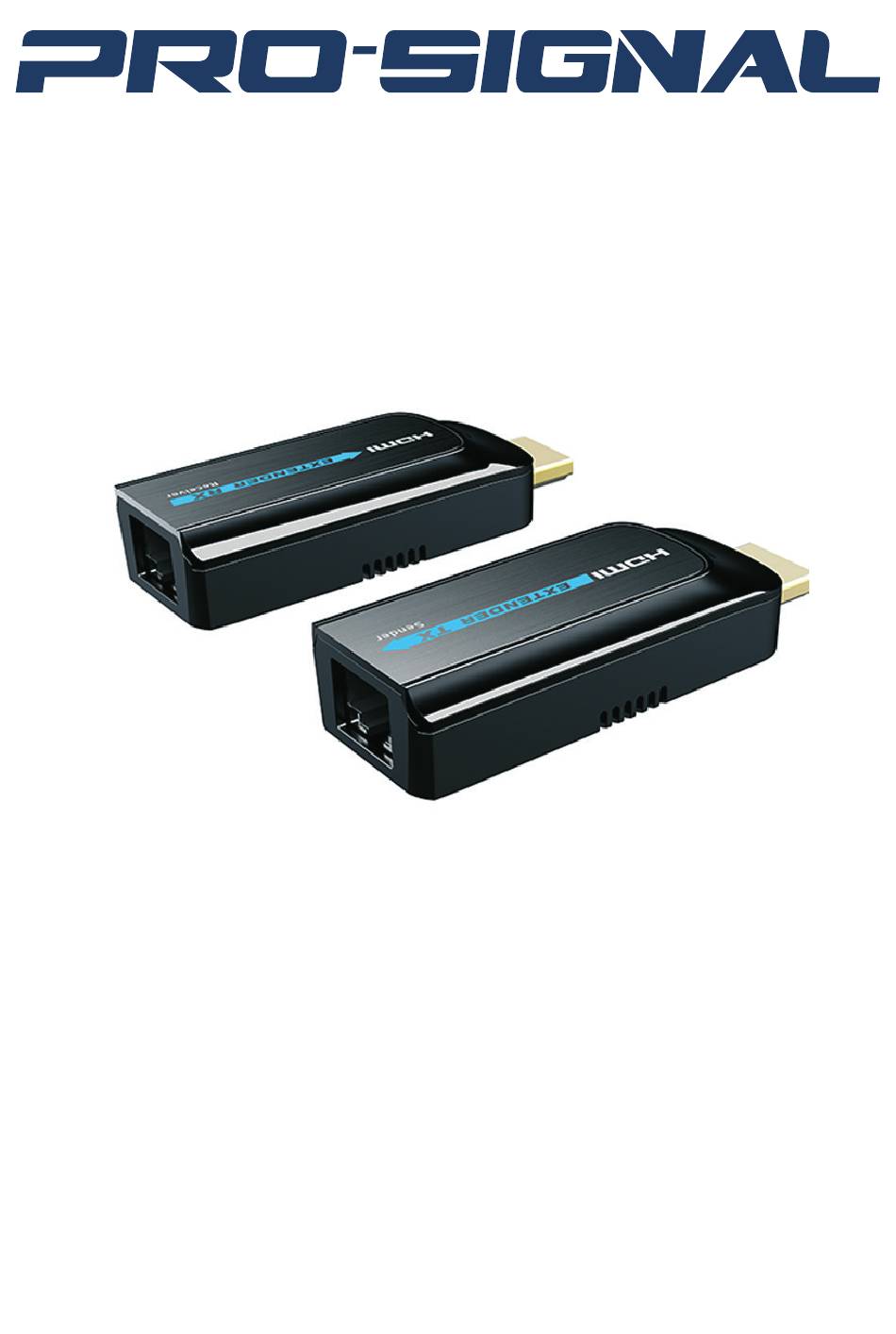

- Page 1 PSG3084 HDMI OVER Cat6/6a/7 EXTENDER...
- Page 2 IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. • When using electrical appliances basic safety precautions should always be followed.. • Do not expose the units to moisture or dust and keep any ventilation slots clear. •...
- Page 3 Transmitter Panel Connections RJ45 network cable socket. HDMI connector (plug into source device HDMI output socket). USB power input socket. Receiver Panel Connections RJ45 network cable socket. HDMI connector (plug into source device HDMI output socket). Length set button USB power input socket. Adjustment •...
- Page 4 MAINTENANCE • Clean the outside casings with a soft cloth lightly moistened with mild soap and water. Never use any abrasive or solvents. • Do not allow moisture to enter the devices. SPECIFICATIONS Parameter Description Standards HDMI 1.3, HDCP 1.2 480i@60Hz, 480p@60Hz, 576i@50Hz, Resolution supported 576p@50Hz, 720p@50/60Hz,...
