Summary of Contents for PRO SIGNAL PSG3079

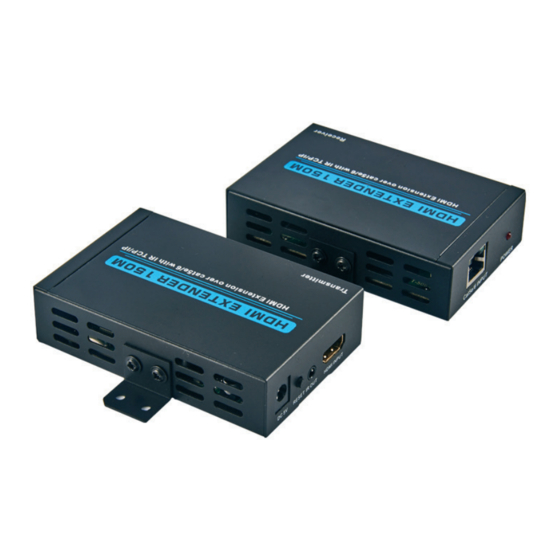

- Page 1 PSG3079 HDMI 1080P EXTENDER OVER CAT5e/6...
- Page 2 IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. • Check that the voltage indicated on the PSU rating plate corresponds with that of the local network before connecting to the mains power supply. •...
- Page 3 CONNECTION DIAGRAM Reset Source Network Power LED Extender SPECIFICATIONS Operating environment 0 to 40 C, Humidity 20 to 90% Power requirement 220-240V~50Hz Power supply 5V DC 1A Power consumption 800mA HDMI Input 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i Audio formats output LPCM7.1/DTS/Dolby-AC3/DSD Audio formats input DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD Input video signal 0.5~1.5Volts p-p...
- Page 4 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical & Electronic Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
