Dukane 220C User Manual

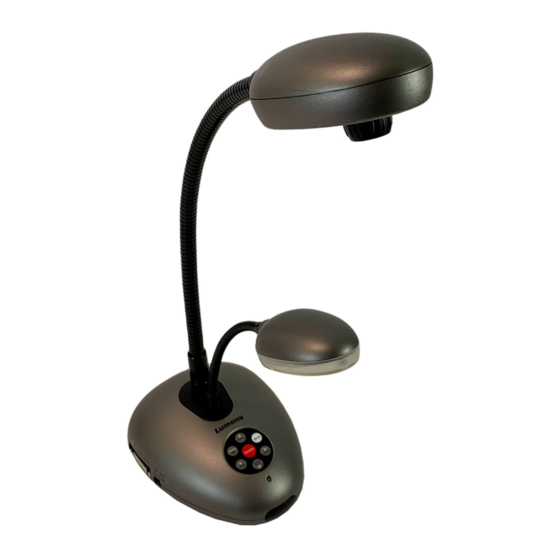

Dukane document camera user's guide 220c
Hide thumbs Also See for 220C:
Table of Contents

Advertisement

Quick Links

Camera 220C

Document Camera

User's Guide
#401-220C-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 220C and is the answer not in the manual?

Questions and answers

Related Manuals for Dukane 220C

Summary of Contents for Dukane 220C

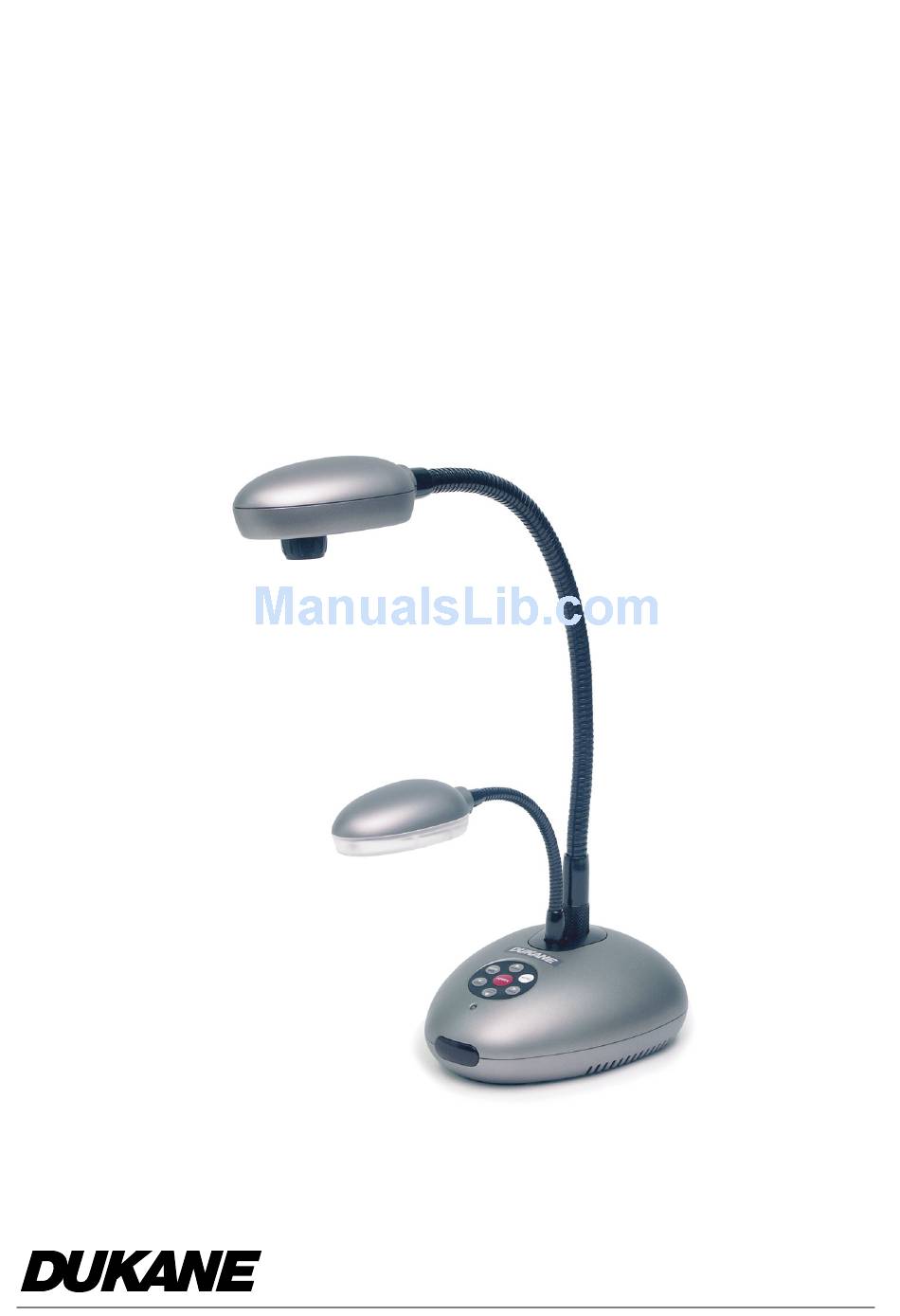

  • Page 1: Document Camera

    Camera 220C Document Camera User’s Guide #401-220C-00...

  • Page 2: Table Of Contents

    Table of Contents TABLE OF CONTENTS ... 0 TABLE OF CONTENTS ... 1 COPYRIGHT INFORMATION ... 2 CHAPTER 1 PRECAUTIONS ... 3 CHAPTER 2 PACKAGE CONTENT ... 6 CHAPTER 3 PRODUCT OVERVIEW ... 7 PRODUCT INTRODUCTION... 7 I/O CONNECTION ... 8 DIP SWITCH ...

  • Page 4: Chapter 1 Precautions

    Chapter 1 Precautions Always follow these safety instructions when setting up and using the Digital Presenter: 1. Do not place the Digital Presenter on an unstable trolley, stand or table. 2. Do not use the Digital Presenter near water or source of heat. 3.

  • Page 5: Safety Precautions

    Safety Precautions Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. This Digital Presenter has a 2 wires AC line Plug. This is a safety feature to ensure that the plug will fit into the power outlet.
  • Page 6 This is a Class A product. In a domestic environment it may cause radio interference, in which case the user may be required to take adequate measures. The typical use is in a conference room, meeting room or auditorium.

  • Page 7: Chapter 2 Package Content

    Chapter 2 Package Content Please make sure the package comes with the following items when you unpack: User’s Manual Camera 220C Power Cable USB Cable C-Video Cable VGA Cable Remote Controller DVI Adapter...

  • Page 8: Chapter 3 Product Overview

    Chapter 3 Product Overview Product Introduction Lens Power / Control Button I/O Port Lamp DIP Switch...

  • Page 9: I/O Connection

    I/O Connection 3.3 DIP Switch Auto Exposure AE ON AE OFF Video OFF (Default Setting) C-Video Video Signal Output Output Video ON NTSC Diagram Resolution SVGA...

  • Page 10: Infrared Remote Control

    3.4 Infrared Remote Control 1. Power: Turn on/ off. 2. Capture: Capture the image. 3. Freeze: Freeze the image. 4. Arrows: You may press the 4 hot keys of Up/Down/Right/Left to go to the desired function item then press the Enter key to take effect.

  • Page 11: Chapter 4 How To Use It

    Turn the lens to optimize the focus 4.1.3 Zoom in / Out Press the control button 4.1.4 Switch source Press That signal is sent to the projector. button. button of remote controller. to Choose signal source between Camera 220C or PC.

  • Page 12: Photo/Text

    4.1.5 Photo/Text: Press to Select the text or photo mode. 4.1.6 Enter AWB (Auto White Balance) press to make the auto white balance. 4.1.7 Capture Image & Review capture image How to capture an image Method 1：Press would like to save. Method 2：Follow the steps using the pad buttons on the Camera.
  • Page 13 1.1 First, press 1.2 Second, press ^ v to survey 1.3 You can press Then press Method 2: Using the Remote Control: 2.1 First please press the see all thumbnail images that you had captured. Then, press which you want to enlarge and press become full screen.

  • Page 14: Showing The Osd Menu

    3.2 Press ^ v select press Then select “Playback”, and press see all captured thumbnail images on the screen. 3.3 Then, press which you want to magnify and press will show on full screen. Showing the OSD (On Screen Display) Menu Option 1: Press Option 2: Press Select function:...

  • Page 15: Osd Menu Introduction

    OSD Menu Introduction The Main Menu containing five icons and detail functions will be explained in next page. Setting Display Source Storage Exit VGA Mode (Computer Image) Layer 1 Layer 2 Lamp Night view Language Setting Output Format Factory Reset Exit Layer 3 On / Off / Exit...
  • Page 16 Brightness Zoom Display Gamma Image Flip Freeze Exit Presenter VGA In Source Capture Playback Delete Storage Delete All Format Exit 0-46 (for PAL) 0-40 ( for NTSC) Digital Zoom (100% to 1600%) Photo / Text Normal / Gray / Film On/Off On/Off Delete All...
  • Page 17 VIDEO Mode (For NTSC, lower resolution) Layer 1 Layer 2 Brightness Display Gamma Image Freeze Exit Lamp Advance Language Setting Factory Reset Exit Camera as Switch The DVI Adapter connects the DVI output to an input for a computer (VGA). When this input is used, the “SOURCE”...

  • Page 18: Chapter 5 Usb Software Instructions

    Using the USB Line to a Computer Insert the CD into the computer. Connect the Digital Presenter and PC with USB Cable. Follow instructions for driver download. Launch the VIEWII application. Control Functions: Brightness: Brightness Adjustment 3.1. Focus: Focus Adjustment. ( only for Digital Presenter series) 3.2.
  • Page 19 Flip: Flip the Image of Digital Presenter. (Only flips the output image to the 3.4. projector. Will not flip image on PC monitor.) Freeze: Freeze the image of Digital Presenter. 3.5. Photo: Adjust the gamma. (The Photo and Text functions are not available 3.6.
  • Page 20 Real time display Mode: Real Time display of the object. Device Control Mode: The last image of the object will be frozen in the window and the “file browse window” will be shown on the left side of window.
  • Page 21 File: Browse the Image files in the internal folder of Digital Presenter. 5.1. Internal: These images were captured by Digital Presenter, and are located in the internal 5.2. memory of Digital Presenter. They can be transfered to a PC. 5.2.1. Upload / Download: 5.2.2.
  • Page 22 5.3. Notice: If the uploaded images are not 1024*768 resolution, the following message window will appear on the screen, you can thn select a scale: 5.3.1. Un-Scaling. 5.3.2. Full Scaling To 1024*768. 5.3.3. Smart Scaling (Proportional Scaling Close to 1024*768). 5.4.

  • Page 23: Chapter 5 Troubleshooting

    Problem 3: Image is too bright or dark. Can not see desired part of the image because it is too bright or dark. Solution – Adjust the BRT + /- Control Button on the remote control. * The updated information will be regularly released on the Dukane web site, please visit our web site http://www.dukcorp.com/av.
  • Page 24 2900 Dukane Drive Toll-free: 800-676-2487 St. Charles, Illinois 60174 Fax: 630-584-5156 www.dukcorp.com/av e-mail: avsales@dukcorp.com Audio Visual Products...
