Camera 210 & 220
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dukane 210

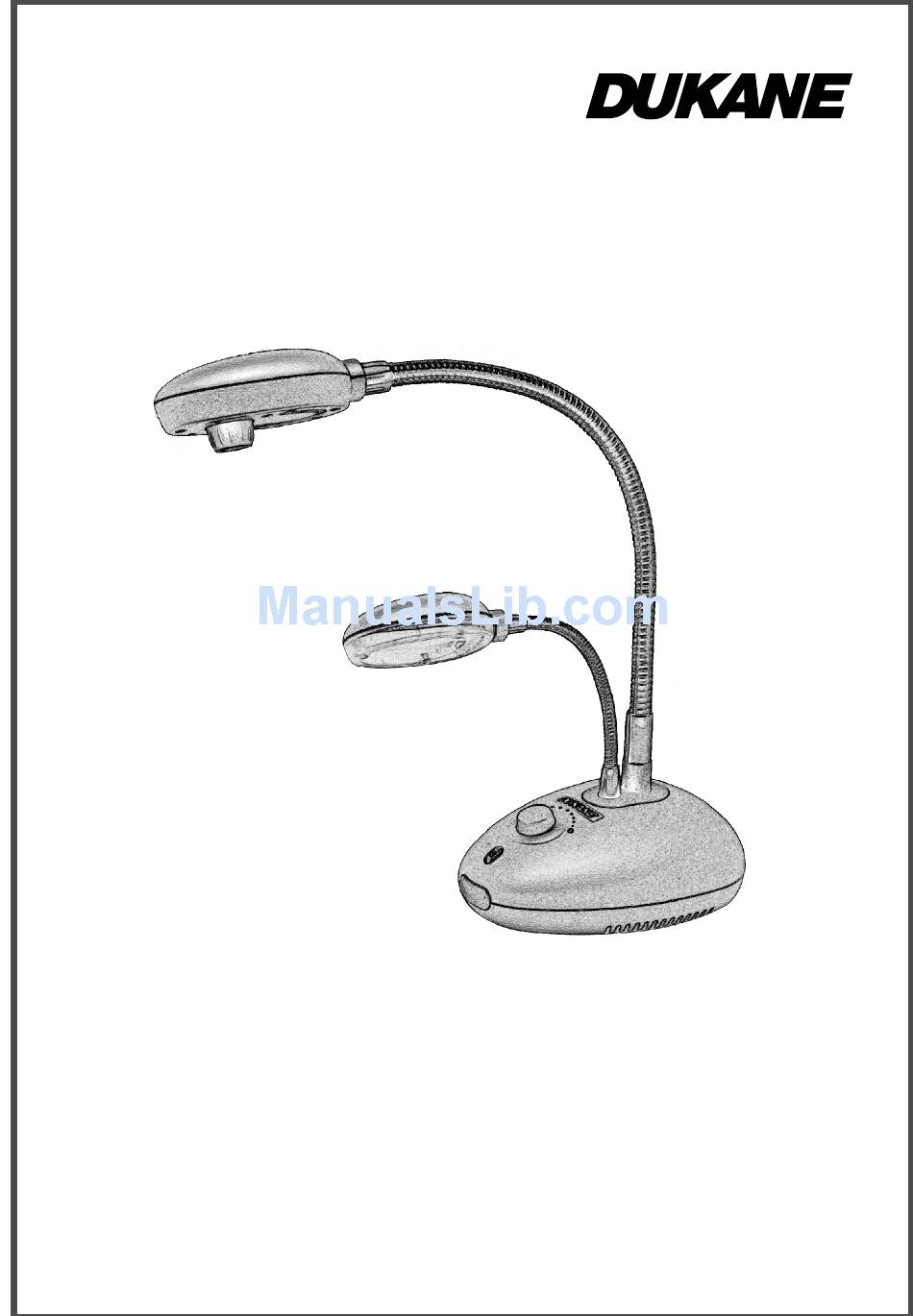

  • Page 1 Camera 210 & 220 USER'S MANUAL...
  • Page 3: Table Of Contents

    Table of Contents Models 210 & 220 Chapter 1 Introduction 1.1 Introduction 1.2 Certification 1.3 Warning 1.4 Safety Instruction 1.5 Specification Chapter 2 Package Content Chapter 3 Product Overview 3.1 Digital Presenter 3.2 I/O Connection 3.3 Infrared Remote Control (220) Chapter 4 Using the Presenter 4.1 Getting Started...
  • Page 4: Chapter 1 Introduction

    Chapter 1 Introduction Thank you for purchasing the camera. 1.1 Introduction With a stylish and streamlined look, this Digital Presenter is outstanding. The goose-neck technology provides more felxability, a better viewing angle for the camera or the lamp, plus space-saving storage. Beyond that, the Digital Presenter is designed to combine many practical functions that help presenters deliver successful presentations.
  • Page 5: Safety Instruction

    Caution: To reduce the risk of electric shock. Do not remove cover (or back). No user-serviceable parts inside. Refer servicing to licensed service Personnel. This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit. FCC Warning This Digital Presenter has been certified to comply with the limits for a Class A computing device, pursuant to Subpart J of Part 15 of FCC Rules.
  • Page 6: Specification

    may cause fire or electric shock. Do not place the Digital Presenter where the cord can be stepped on as this may result in fraying or damage to the lead or the plug. 10. Unplug the projector form the wall socket before cleaning. Use a damp cloth for cleaning.
  • Page 7 Composite Video Output: NTSC/PAL Selectable Lighting CCFL: Build in One Cathode fluorescent lamp Input VGA Pass through: Model 210; HD-SUB 15 pin female. Output VGA: HD-SUB, 15 Pins Female DVI: Digital & Analog Receptacle Connector (Model 220 only) C-video: RCA Jack...
  • Page 8: Chapter 2 Package Content

    Chapter 2 Package Content Please make sure the package comes with the following items when you unpack: Power Cable VGA Cable DVI Adapter (220 only) USB Cable C-Video Cable Remote Controller (220 only) User’s Manual...
  • Page 9: Chapter 3 Product Overview

    Chapter 3 Product Overview 3.1 Digital Presenter 4. I/O Port 2. Control Button 3. Power Button Figure 3-1 6. Lamp View 7. DIP Switch Figure 3-2 1. Camera View...
  • Page 10: I/O Connection

    3.2 I/O Connection Model 220 Adapter DVI for Model 220 only. Figure 3-3...
  • Page 11 3.3 Infrared Remote Control (Model 220) 1. Power: Turn on/off. 2. Capture: Capture the image. 3. Freeze: Freeze the image. 5. Arrows: Press the 4 hot keys of Up/Down/Right/Left to go to the desired function item. 6. Flip: Rotate the image by 180 degrees. 7.
  • Page 12: Chapter 4 Using The Presenter

    First, press button to start the Menu. Turn the control button to choose function. Second, choosing function, press control button to start this function. Menus Note that menus are different for the Model 210 and the 220. Small Button. the Button on Remote control.
  • Page 13 4.3 Menu Model 210 only VGA Mode Computer Image. Use the Control Button for menu operation. Layer 1 Layer 2 On/Off Flip Presenter/ VGA In Source Digital Zoom Zoom On/Off Lamp Normal/Gray/Film Image English, Deutsch, Francais, Italiano, Language Espanol, Русский,,...
  • Page 14 Menu Model 220 only VGA Mode (Computer Image) Layer 1 Layer 2 Lamp Setting Language Output Format Factory Reset Enter/Exit Exit Zoom Display Gamma Image Flip Freeze Exit Presenter Source VGA In Capture Storage Playback Delete Delete All Format Exit Layer 3 On/Off English, Deutsch, Francais,...
  • Page 15 VIDEO Mode (Video Image) Layer 1 Layer 2 Gamma Display Image Freeze Exit Language Setting Lamp Factory Reset On/Off Exit 4.4 Base Bottom Switch On the bottom of the base are four (4) small switches, which can change the Presenter operation. After a switch is changed the power must be turn “off”...
  • Page 16: Chapter 5 Troubleshooting

    Chapter 5 Troubleshooting This chapter describes the conditions you might have encountered when you use the Digital Presenter. If you have a problem, refer to the appropriate section and follow all the suggestions that apply to your problem. If none of the suggested solutions solves the problem, call your dealer or your service center.
  • Page 18 Dukane Corporation Audio Visual Products Division 2900 Dukane Drive St. Charles, IL 60174-3395 Parts & Service: (800) 676-2487 E-mail: avsales@dukcorp.com www.dukcorp.com/av Phone: (630) 762-4040 Orders: (800) 676-2485 Fax: (630) 584-5156 Fax: (630) 584-0984 Audio Visual Products Part # 401-210_220-01...
