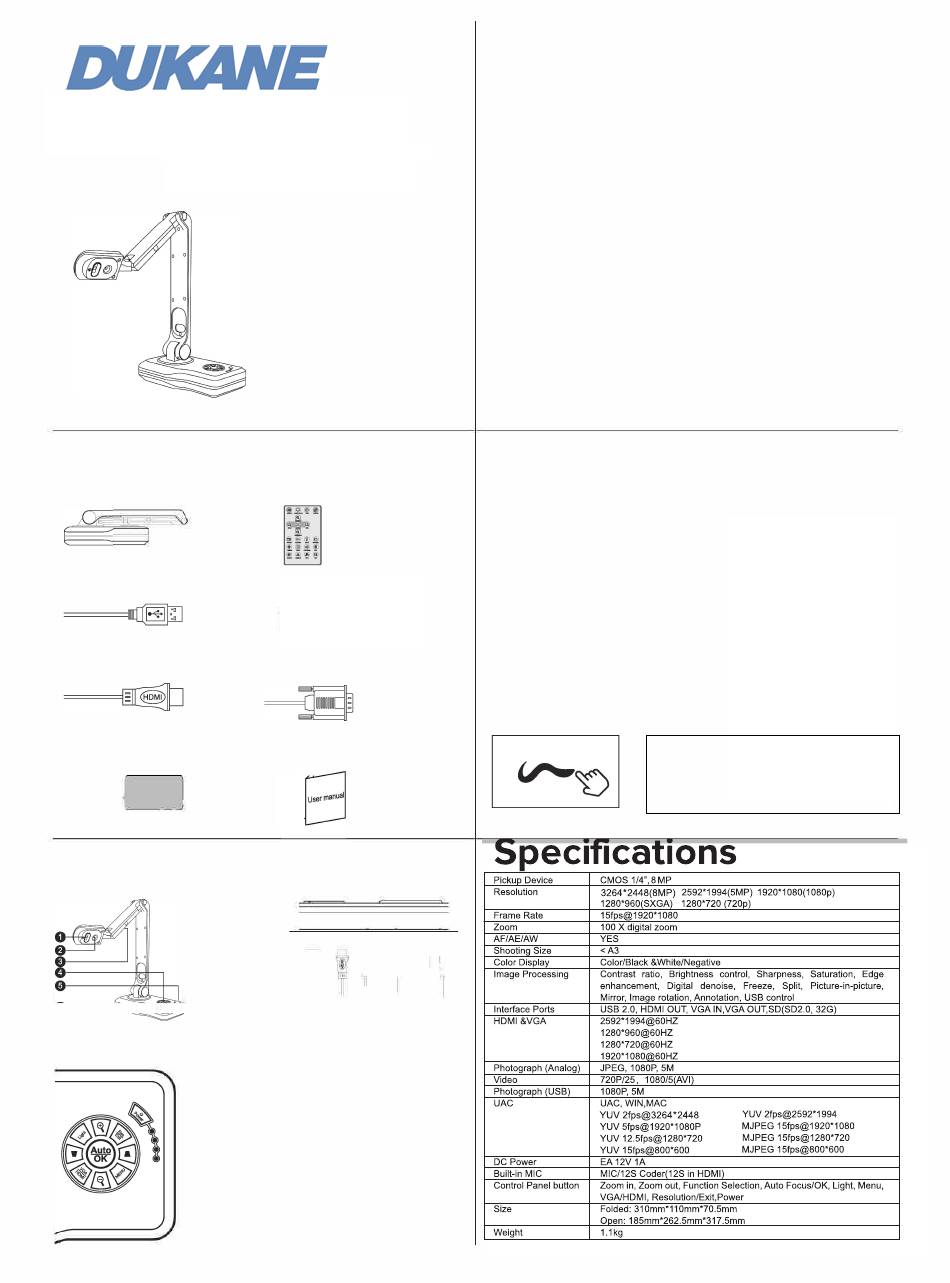

Dukane Camera 250 User Manual

Camera 250
User manual
Packing List
1.Document Camera
2.USB2.0 Cable
3.HDMI Cable
4.DC Adapter (Output:12V1A)
=�>-------
I I
Product Details
Parts identification
1-Camera Lens
2-LED Light
3-LED Lights
4-Control Buttons
5-lnterface Ports
(:)----__J�� ;_:2·�;;16-Base
Operating panel illustration
ffi
� Turn on the power
GJ
®
Zoom in current image
Zoom out current image
Function selection
E)
Function selection
<o
Turn on/off and adjust the LED lights
� Press to realize the function/auto focus
�Change the resolution/back to main menu
�Change to VGA/HDMI
0Go to the main menu
5.Remote Controller
6.CD The software is available as
a Download from the Dukane
product website.
www.dukaneav.com, go to
the camera model.
7. VGACable
8.User Manual
Side panel ports
�.ba�����
t • t t •
:t
� m I I ' , �
tJ
I 'I 0�1 =l
R
VGA_IN I US�2.0 I
HDMI_OUT VGA_OUT DC_12V
Before use:
• Use the provided power adapter with this product.
• Do not leave it in direct sunlight or by a heater.
• Do not place this product in any humid, dusty, or vibrating location.
• Carry the product by holding the base in both hands. Never hold the product by the
arm or the camera head.
• Use a soft, dry cloth for cleaning and water or soap water on a damp cloth.
• When the device is not in use for a long time, turn off the power.
During use:
• Please prevent children from operating the camera without supervision.
• Recommended conditions, Temp 32F to 104F
• Use the product on a stable base, desk, or table.
• Do not turn or flip the camera head or arm to its mechanical limitation.
• Do not point the camera lens directly at the sun. It may be damaged and fail to take
pictures.
• Do not look directly to the LED lamp .
• The product may not operate properly if a USB hub is used to connect the
product and a PC.
• Transfer the data from the SD card onto a device such as a PC to save a backup
copy. Malfunction of the product may cause the data in the SD card to be
deleted.
• Be careful to prevent the unit from being dropped.
• Please prevent the camera head f rom hitting the desk top or any other hard object, it
can be easily damaged .
Product Highlights
• 8.0 Mega Pixel 1/4" CMOS(3264 x 2448).
• Image capture and processing,
Audio & Video ecording.
R
• Auto Focus & 100x Digital Zoom Function.
°
• Flexible Camera Head with UR 90 rotation.
• Picture-in-Picture (PIP) Mode.
• Connect directly to Projector / monitor
• 5 level dimmable LED brightness control.
• Built-in Microphone.
• emote control included.
R
• Annotate directly without PC software
installation and save on a SD card.
The software "Visualizer", is available as a
download from the Dukane website.
www.dukaneav.com Go to the camera page and
click Downloads, then click on "View All
Downloads" to get a list with the software and the
user manuals.
Pg 1 of 2
• Supports touch function when
connected to a Touch screen.
