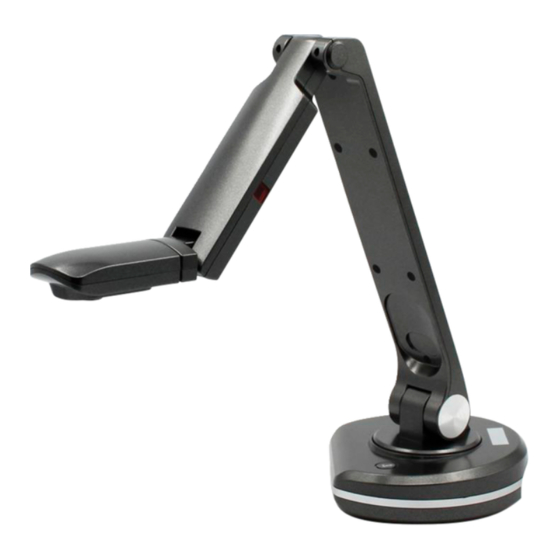

Dukane Camera 150 Quick Start Manual

Document Camera

Packing Lists

1.Document Camera
3.CD
The software is available as
a Download from the Dukane
product website.
www.dukaneav.com, go to
the camera model.

Product View

Shooting

Problems

Possible causes
The device does not The USB cable is not
turn on. No LED light. connected correctly.
No image display after
Camera is not selected.
correct connection,
The image is blurry The object is too close to
the camera head or focus is out.
Audio Visual Products
2900 Dukane Drive, St. Charles, Illinois 60174
Toll-free: 888-245-1966 Fax: 630-584-5156
E-mail: avsales@dukane.com
www.dukaneav.com

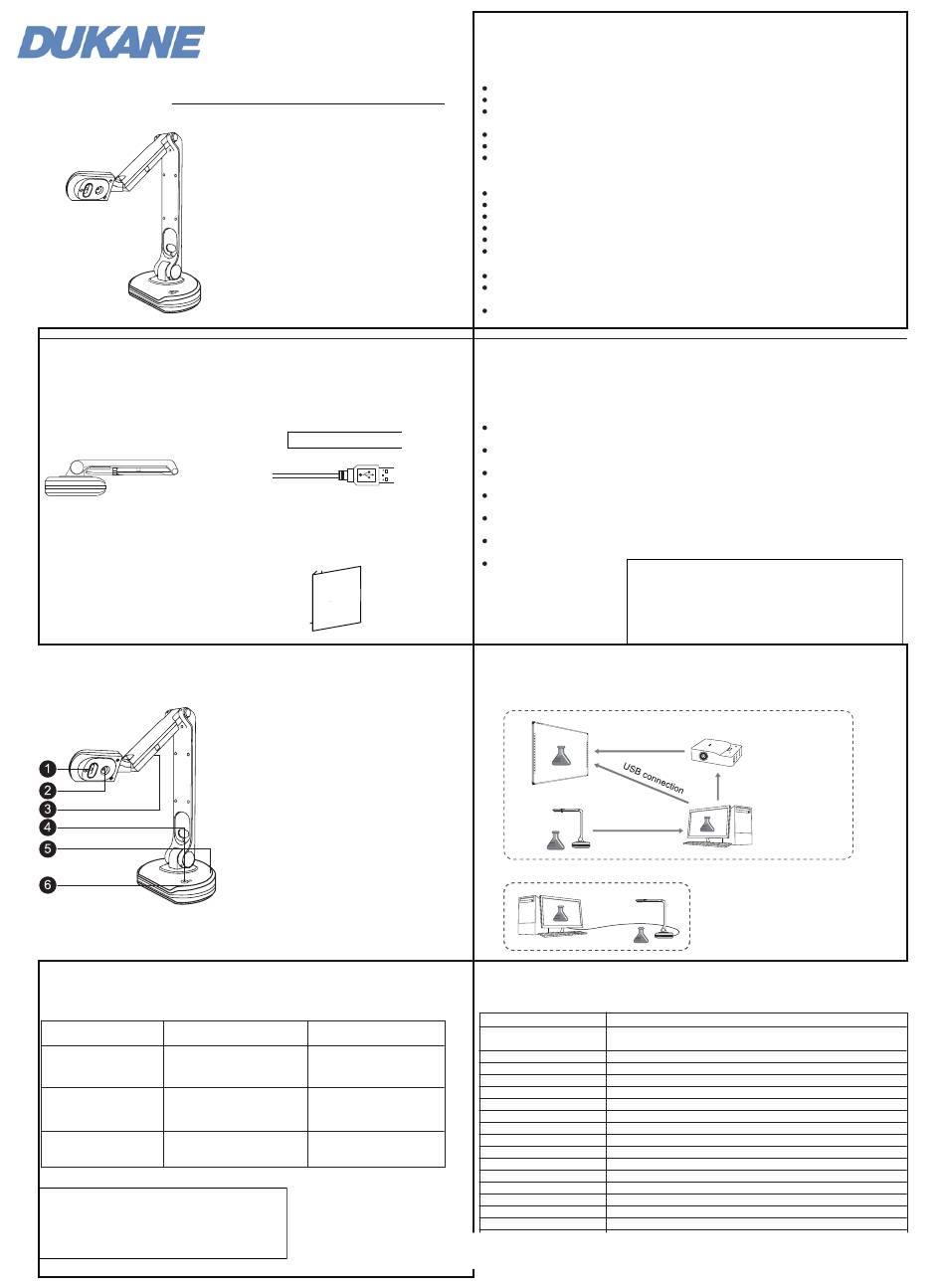

Quick Start Guide
Camera 150
USB
2.USB2.0 Cable
Mini USB to USB
4. Quick Start Guide
1-Camera Lens
2-LED Light
3-LED Lights
4-Light Button, level control
5-USB Interface, mini USB port
6-Base
Solutions
Reconnect the USB cable
Select the correct device
Use Auto Focus or
Focus to adjust the focus

Attention

Before use:

Do not leave it under direct sunlight or by a heater. It maybe become discolored or damaged.
Do not place this product in any humid, dusty, or vibrating location.
Carry the product by holding the base in both hands. Never hold the product by the
arm or the camera head.
Use a soft, dry cloth for cleaning and not a volatile solvent.
When the device is not in use for an extended period, please turn off the power.
Fold down the arm when the product will not be used for a long time.

During use:

Please prevent children from operating the device without supervision.
Recommended environmental conditions: Temperature: 0°C - 40°C（32°F - 104°F）.
Humidity: 30% - 85%（No condensation atmosphere）.
Use the product on a stable base, desk, or table.
Do not turn or flip the camera head or arm to beyond its limitation.
Do not point the camera lens directly at the sunlight. It may be damaged or fail to
operate correctly..
Do not look directly to the LED lamps.
The picture may not appear correctly if a USB hub is used to connect the product and PC.
Be careful to prevent the unit from being dropping or bumped.
Prevent the camera head from hitting the desk top or any other hard object

Product Highlights

8.0 Mega Pixels(3264×2448).
5× Digital Zoom Function.
Macro Shooting: ≤5cm.
Image capture and processing, audio&video recording.
Auto focus and easy annotation
Flexible camera head with 180°rotation.
LEDs with 3 levels
The software "Visualizer", is available as a
download from the Dukane website.
www.dukaneav.com Go to the camera page and
click Downloads, then click on "View All
Downloads" to get a list with the software and the
user manuals.

Configurations

1.Document camera + PC + Projector + IWB interactive white board
Projection
USB connection
2.Document camera + PC
Specification
Pickup Device CMOS 1/4" 8MP
Resolution 3264*2448(8MP) 2592*1994(5MP) 1920*1080(1080P)
1280*960(SXVGA) 1280*720(720P)
Digital Zoom ×5
YES
Auto Focus
Auto Exposure YES
Auto White Balance YES
Frame Rate 15fps@1920*1080
Scanning Area 16 x 11.8"
Rotation Camera 180°, Arm 360°
Macro Shooting Distance ≤5cm, 2 inch
Image Processing Contrast ratio, Brightness control, Sharpness, Saturation, Rotation
Light Source 11 LEDs with softbox
SNR ≥40db
Power Supply USB2.0
Audio Built-in MIC
Interface Port mini USB2.0
Operation System Windows XP/Vista/7/8/10 for software
VGA(HDMI) connection
