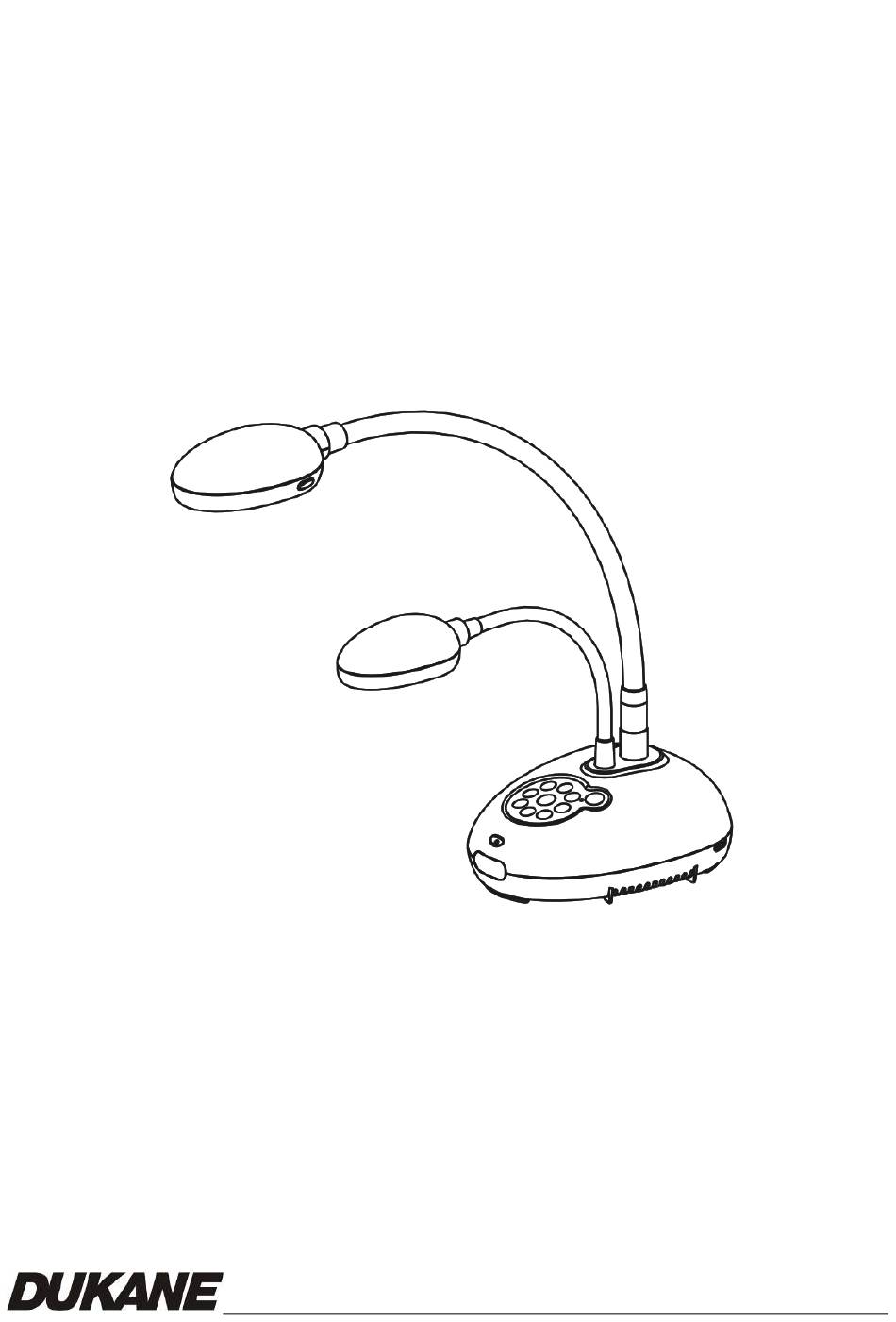

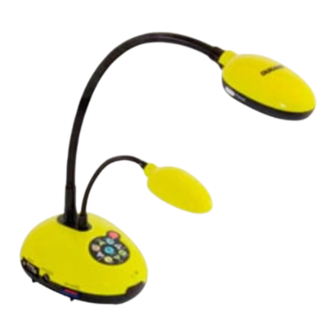

- Page 1 Camera 336B Document Camera User Manual - English English...
-
Page 2: Table Of Contents
Table of Contents Chapter 1 Precautions ..................... 3 Safety Precautions ..................4 FCC Warning ....................4 EN55022 (CE Radiation) Warning ............... 4 Chapter 2 Package Contents ..................5 Chapter 3 Product Overview ..................6 Relative position of the presenter and document ........... 7 Chapter 4 Installation and Connections .............. - Page 3 I would like to adjust the brightness ............. 23 I would like to turn on/off the lamp ............... 23 I would like to freeze images ................ 24 7.10 I would like to rotate the image ..............24 7.11 I want to capture images ................24 7.12 I would like to record videos .................
-
Page 4: Chapter 1 Precautions
Chapter 1 Precautions Always follow these safety instructions when setting up and using the Document Camera: 1. Do not place Document Camera in tilted position. 2. Do not place the Document Camera on an unstable trolley, stand or table. 3. Do not use the Document Camera near water or source of heat. 4. -
Page 5: Safety Precautions
If liquid is spilled into it or the Document Camera has been exposed to rain or water. Safety Precautions Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. This Document Camera has a 3 wire AC line Plug. -
Page 6: Chapter 2 Package Contents
Chapter 2 Package Contents Document Camera Quick Start Guide Warranty Card VGA Cable USB Cable Power Cord Remote Control Microscope Adapter English... -
Page 7: Chapter 3 Product Overview
Chapter 3 Product Overview 1. Gooseneck 2. AF button 3 Lamp 4. Control panel 5. LED indicator 6. Built-in Microphone 7. Remote sensor 8. Lens 9. LED lamp 10. DIP Switch Settings (Bottom) English... -
Page 8: Relative Position Of The Presenter And Document
Relative position of the presenter and document English... -
Page 9: Chapter 4 Installation And Connections
Chapter 4 Installation and Connections 4.1 System diagram Earphone or Projector or Monitor Speaker SD Card Computer English... -
Page 10: Installation And Setup
4.2 Installation and setup Please set up the DIP Switch Settings first. Refer to Chapter 9 DIP Switch Settings in the DC190 User Manual. 4.3 Connecting to a projector or monitor VGA Cable Power Cord Monitor or Projector AC Outlet 4.4 Connecting to a computer and use B-Works 2 USB Cable Projector... -
Page 11: Connecting To A Computer And Projector Or Monitor Simultaneously
4.5 Connecting to a computer and projector or monitor simultaneously VGA Cable VGA Cable Power Cord Monitor or Projector AC Outlet Computer Press [SOURCE] button to switch the image source. 4.6 Connect to a PC and read the SD card SD Card USB Cable Power Cord... -
Page 12: Connecting To An Interactive Whiteboard (Iwb)
4.7 Connecting to an Interactive Whiteboard (IWB) Projector USB Cable VGA Cable Power Cord USB Cable Computer AC Outlet 4.8 Connecting to an HDTV Power Cord HDMI Cable AC Outlet HDTV English... -
Page 13: Connecting To A Speaker
4.9 Connecting to a speaker Power Cord Earphone or Speaker AC Outlet 4.10 Connecting to a Computer with RS232 EXTENDER Adapter Power Cord RS232 Adapter AC Outlet Computer After connecting to the RS232 cable, you can use RS232 commands to control Document Camera. -
Page 14: Connecting To A Tv
4.11 Connecting to a TV DIP Switch Settings EXTENDER Adapter Power Cord C-Video Cable AC Outlet NTSC: USA, Canada, Mexico, Panama, Chile, Japan, Taiwan, Korea, and Philippines. PAL: Countries/regions not listed above. <Note> You should unplug and reconnect the power cord, and then restart the machine for DIP Switch Settings to take effect. -
Page 15: Chapter 5 Start Using
Chapter 5 Start Using 1. Place an object to be displayed under the camera. 2. Turn on Power 3. Adjust the gooseneck and lens to the appropriate positions. 4. Press [AUTO TUNE] button to optimize the image. You are ready to teach/present. -
Page 16: Chapter 6 Control Panel/Remote Control And Setting Menu
Chapter 6 Control Panel/Remote Control and Setting Menu 6.1 Functions of control panel and remote control <Remark> The below functions are listed alphabetically. Name Function Descriptions Operation Remote control Turn on and off the Document Camera. /Control panel Remote control ,,,... - Page 17 Enter Mask/Spotlight mode. MASK Remote control Activate the setting menu/exit the menu. MENU Remote control /Control panel Enable/Disable the Partial Enlarged mode. Remote control Image comparison (to compare live images with stored image files). Remote control Read files stored in the SD Card (priority) or PLAYBACK Remote control internal memory.
-
Page 18: Setting Menu
6.2 Setting Menu 6.2.1 Main menu <Remark> Press [MENU] on the remote control or control panel to display the setting menu. Auto Tune Slide Show Automatically adjust the image Show the photos or videos to have the best brightness and stored in the SD card (priority) or focusing performance. - Page 19 6.2.2 Set up menu Level Level Level Major Function Descriptions Minor Items Adjustment values Items Single Capture / Time Press left and right arrow keys to Capture Mode select capture mode. Lapse / Record / Disable 1 hr 2 hr Use the left and right arrow keys to 4 hr select the capture time.
- Page 20 Regardless of outside environment, the machine will adjust the brightness Auto Exposure On/Off to the optimal condition. Use the left and right arrow keys to select. Regardless of outside light or color, Auto White the machine will adjust the color to the Enter optimal condition;...
- Page 21 Read the value of the current image mode. Use the left and right arrow keys to Yes/No Preset Save select, and then confirm by pressing [ENTER]. Splash Screen Open Splash Screen Setting window Enter Settings Use the left and right arrow keys to select, and then confirm by pressing Yes/No Factory Reset...
- Page 22 6.2.4 Spotlight Mode Setting Menu Level Level Level Major Function Descriptions Adjustment values Minor Items Items Press [ENTER] to return to live Live Enter image. Shape Ellipse /Rectangle Adjust the transparency of the border Transparency 0~2~3 in the Spotlight mode using left and right arrow keys.
-
Page 23: Chapter 7 Descriptions Of Major Functions
Chapter 7 Descriptions of major functions I would like to automatically adjust the image to have the best brightness and focusing performance Use the remote control or control panel: 1. Press [AUTO TUNE] for the optimal brightness and focal length. I would like to switch image sources Live image is the default image source. -
Page 24: I Would Like To Zoom In/Out Images
7.4.2 Setting Photo/Text mode To change the settings, please use the remote control or the control panel: 1. Press [MENU] to enter the setting menu. 2. Press [], [], [], or [] to select [Photo/Text]. (Please refer to 7.4.1 Photo/Text mode descriptions to make the best choice.) 3. -
Page 25: I Would Like To Freeze Images
light/Dual light/Head light) I would like to freeze images 1. Press [FREEZE] on the remote control or control panel to freeze the current image on the screen. Press again to defreeze. 7.10 I would like to rotate the image Remote control: 1. -
Page 26: I Would Like To Record Videos
menu. Press [], [], [], or [] to select [Setting]. Press [ENTER] key to enter. Press [] or [] to the [Capture Settings] menu. Press [] to find [Image Quality]. Press [] or [] to select among [High/Medium/Low]. Press [Menu] to exit. 7.11.3 Setting continuous capture Press [MENU] on the remote control or control panel to enter the setting menu. -
Page 27: I Would Like To View Captured/Recorded Images
7.12.2 Setting the quality of captured images Press [Menu] on the remote control or control panel to enter the setting menu. Press [], [], [], or [] to select [Setting]. Press [ENTER] key to enter. Press [] or [] to the [Capture Settings] menu. Press [] to find [Image Quality]. -
Page 28: I Would Like To Delete The Captured/Recorded Images
6. Press [] or [] to adjust the volume of the video. 7. Press [PLAYBACK] to return to the Thumbnail Mode to select other Audio/Video Files, or press [MENU] to exit. <Note> An external speaker must be connected to AUDIO OUT to play sound when you use VGA OUT. -
Page 29: I Would Like To Use The Mask And Spotlight Function
Press [MENU] to enter the setting menu. Press [], [], [], or [] to select [PAN]. Press [ENTER] to activate. Press [], [], [], or [] to move and view the partial enlarged images. Press [MENU] to exit the partial enlarged mode. 7.17 I would like to use the MASK and Spotlight function 7.17.1 I would like to use the MASK or Spotlight mode... -
Page 30: I Would Like To Play The Slides (Slide Show)
Press [MENU] to enter the image OSD menu. Press [] or [] to select the item to be modified [Shape/Transparency/Step/V Size/H Size]. (For details, please refer to 6.2 Setting Menu.) Press [] or [] to perform the modification. Press [MENU] to exit the image OSD menu and return to Spotlight mode. 7.18 I would like to play the slides (Slide Show) 7.18.1 Setting delay time... -
Page 31: I Would Like To Compare Images (Compare Live Images With Stored Images (Pip))
7.19 I would like to compare images (compare live images with stored images (PIP)) This function will compare and contrast a live image with a stored image. Live image Stored image Remote control: 1. Press [Playback] to enter the Playback image thumbnails. 2. -
Page 32: I Would Like To Resume The Factory Default Settings (Factory Reset)
menu. 2.2. Press [], [], [], or [] to select [Setting]. 2.3. Press [ENTER] key to enter. 2.4. Press [] or [] to select [Control]. 2.5. Press [] to enter [Projector Type]. 2.6. Press [] or [] to select [LCD/DLP]. 2.7. -
Page 33: I Would Like To Use A Sd Card
Press [] or [] to enter the [Power On Logo Show time] menu and press [] or [] to set up display time span. Skip to Step 12 if your select [Default] in Step 7. 10. Press [] or [] to enter the [Power On Image Select] menu and press [ENTER] to read selected file. -
Page 34: Chapter 8 Connecting To Microscope
Chapter 8 Connecting to Microscope 1 Mount the microscope adapter onto the microscope. <Note> The Microscope adapter accessories are applicable to eyepieces of about Ø 28.4mm. 2 Connect the lens of Document Camera with the microscope adaptor 3 Select the [Microscope] mode 3.1. -
Page 35: Chapter 9 Dip Switch Settings
Chapter 9 DIP Switch Settings <Note> You should unplug and reconnect the power cord, and then restart the Document Camera for all DIP Switch Settings to take effect. 9.1 Connecting to a projector or monitor 9.1.1 XGA output (default values): 9.1.2 SXGA output 9.1.3 WXGA output 繁體中文... -
Page 36: Connecting To A Tv
9.1.4 1080P output 9.2 Connecting to a TV 9.2.1 NTSC: USA, Taiwan, Panama, Philippines, Canada, Chile, Japan, Korea, and Mexico. 9.2.2 PAL: Countries/regions not listed above. <Remark> Once C-VIDEO is on, VGA OUT is not supported. 繁體中文... -
Page 37: Chapter 10 Software Instructions
Chapter 10 Software instructions Using the Camera with a computer. After installing the B-WORKS 2, you can use the software to: Control the Camera 336B. Capture and record images. Annotate images, highlight important details and save them for later use. -
Page 38: Chapter 11 Troubleshooting
Check the Auto Image setting of your projector. Please refer incomplete to the user manual of the projector or check for the DIP SWITCH settings. Dukane Document Camera、B-Works 2 and other Dukane Document Camera、 B-Works 2 applications cannot be executed simultaneously. Only one and other application can be executed at a time. - Page 39 to capture images of Chapter 7 Descriptions of major functions. The images Press [AUTO TUNE] to automatically adjust to the optimal outputted from brightness and focal length. Document Camera are too bright, dark or vague Unable to record Check to see if the stored data have reached the maximum images size of the SD Card (priority) or internal memory.
- Page 40 Information in this Guide may change due to product improvements. To obtain the latest manuals, literature, and software please visit the Dukane web site at; www.dukane.com/av and look at the specific model SUPPORT or DOWNLOADS section. DUKANE CORP AV SERVICE DEPT...
