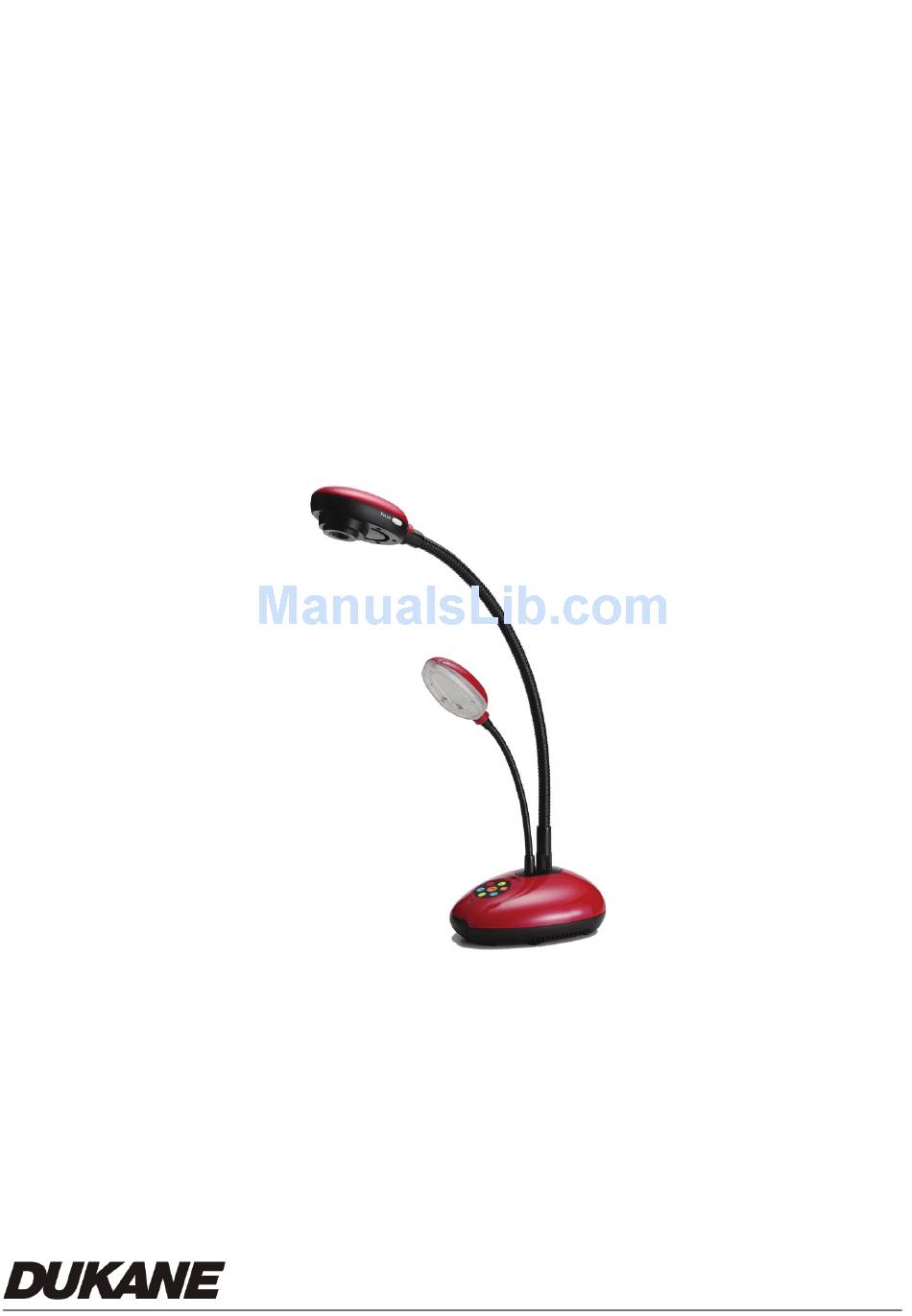

Page 1: Document Camera
Camera 335 Document Camera User’s Guide #401-335-00... -
Page 2: Table Of Contents
Table of Contents CHAPTER 1 PRECAUTIONS ... 2 Safety Precautions ... 3 FCC Warning ... 3 EN55022 (CE Radiation) Warning... 3 CHAPTER 2 PACKAGE CONTENT ... 4 CHAPTER 3 PRODUCT OVERVIEW ... 5 3.1 P RODUCT NTRODUCTION 3.2 I/O C ONNECTION 3.3 DIP S WITCH... - Page 3 4.3.3 D ELETE APTURED 4.3.4 P RESET CONTROLS 4.3.5 A ... 13 RASE CHAPTER 5 CONTROL MENU (OSD MENU) INTRODUCTION (ON SCREEN DISPLAY)... 15 5.1 O ... 15 PERATION 5.2 C ONTROL CHAPTER 6 USER SOFTWARE INSTRUCTIONS - USB335 ... 18 6.1 I ...
-
Page 4: Chapter 1 Precautions
Chapter 1 Precautions Always follow these safety instructions when setting up and using the Document Camera: 1. Please do not tilt the machine while using. 2. Do not place the Document Camera on an unstable trolley, stand or table. 3. Do not use the Document Camera near water or source of heat. 4. -
Page 5: Safety Precautions
If liquid is spilled into it or the Document Camera has been exposed to rain or water. Safety Precautions Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. This Document Camera has a 2 wire AC line Plug. This is a safety feature to ensure that the plug will fit into the power outlet. -
Page 6: Chapter 2 Package Content
Chapter 2 Package Content Please make sure the package comes with the following items when you unpack: (Total 9 items)： Main Unit Remote VGA Cable Adapter (Optional) User’s Guide Warranty Card C-Video Cable Power Cable USB Cable... -
Page 7: Chapter 3 Product Overview
Chapter 3 Product Overview Product Introduction 1. Auto Focus Button Gooseneck 5. I/O Connection 2. Lens 4. Lamp 6. Power／Control keypad Infrared receiver area 9. Auxiliary Stand 8. DIP Switch... -
Page 8: I/O Connection
3.2 I/O Connection 3.3 DIP Switch Setting Factory default settings are as the following: C-Video SVGA Reserved NTSC XGA Reserved (Reserved is OFF all the time) -
Page 9: Remote Control
3.4 Remote Control * Only use CR2025 as replacement battery. Please properly dispose of any used 1. Power: Power on or off. 2. Source: Switch between different signal sources. 3. BRT+/- Make the image brighter or darker 4. Menu: Show the Control Menu (OSD, On Screen Display, Menu) 5. -
Page 10: Chapter 4 How To Use It
4.1 Getting Started 4.1.1 Turn on the Document Camera When the power cord is plugged in, the LED indicator will be "Red". When turned on, the LED indicator will be "Blue". Automatic Image Adjustment 4.1.2 Auto-adjust to obtain the optimum image. It may require a few seconds for this process. -
Page 11: Major Functions
4.2 Major Functions 4.2.1 Select Input Source The default input source is set as the "Document Camera", press 『Source』to switch. Remote Keypad Monitor Notebook Projector 4.2.2 『Photo/Text』Modes The default setting is "Photo". Users can switch mode by pressing "Photo/Text" button. Remote... -
Page 12: Zoom In / Out
4.2.3 Zoom in / out 4.2.4 Auto Focus Remote Goose-head 4.2.5 Brightness Adjustment... -
Page 13: Display The Complete Control Menu (Osd) O Nscreen Display
4.2.6 Display the complete control menu (OSD) On Screen Display Keypad 4.2.7 Menu navigation and selection Keypad 1. Press『^ v< >』navigate menu. 2. Press『Enter』to select. Remote Remote... -
Page 14: Advanced Functions
4.3 Advanced Functions 4.3.1 Capture of Images Remote or Keypad：：Press『Capture』button from remote control. 4.3.2 Play back captured Images Remote or Keypad： 1. Press『Play』to show thumbnail images in memory. 2. Use『 3. Press『Enter』to display as full screen. 4. Use『 5. Press『Play』to go back to thumbnail images. 6. -
Page 15: Preset Controls
7. Press『Enter』to execute. 8. Press 『Menu』to Exit 4.3.4 Preset controls Preset save: the customized user setting parameters (Ex. Zoom, Save brightness, color, AE setting). 1. Press『Preset』to entry the Preset menu. 2. Use『 』to『save』 3. Use『 』to『Yes』 4. Press『Enter』to execute. Preset Load：Invoke the customized user setting parameters (Ex. Zoom, brightness, color, AE setting). - Page 16 5. Use『 』to『Yes』. 6. Press『Enter』to execute.
-
Page 17: Chapter 5 Control Menu (Osd Menu) Introduction
Introduction (On Screen Display) 5.1 Operation A. Use『 』to select main function. B. Use『 』to select sub-item. C. The activated item with red line and yellow block. Use 『 items. D. 『 』: For More functions, you can press『 E. 『 』:If Only one item is desired , you can press『Enter』to execute. F. - Page 18 Layer 2 Layer 1 Display Image Freeze Flip Gamma Digital Zoom 100%~1600% Focus Storage Delete Delete All Format Auto Erase Setting Lamp Night vision Factory Reset Yes／No Preset Load Advance Preset Save Layer 3 Normal/Gray/Slide/ Select Normal/Gray/Slide/ Microscope/Film Microscope/Film image mode Use Freeze to retain the image on ON ／OFF the screen.
- Page 19 C-Video Mode ( Composite Video output mode) This is a low resolution output that requires the camera’s bottom switch to be reset. THERE IS NO COMPOSITE VIDEO OUTPUT WHEN THE “COMPUTER IMAGE” MODE IS USED. Layer 1 Layer 2 Focus Gamma Display Image...
-
Page 20: Chapter 6 User Software Instructions - Usb335
- USB335 Using the Camera USB with a Computer 6.1 Installation 1. Insert the software CD in your computer’s CD-ROM. 2. Connect the Camera and PC with USB Cable. Follow instructions for driver download. 3. Before you install USB335, please be sure your system meets these requirements. - Page 21 install USB335 please press USB335 5. The installation wizard is shown, please press Next to go next. 6. Click Next to install from the default folder or click Change to specify a difference.
- Page 22 7. Please press Install to begin installation. 8. The installation is processing, if you would like to cancel, please press Cancel to stop installation.
- Page 23 9. Please press Finish to complete the installation. 10. After installation, the USB335 is launched automatically or you may go to the PC “Start”, and look at “All Programs” to find USB335.
-
Page 24: Functions (Usb335 Software)
6.2 Functions (USB335 Software) The USB335 software operates with the Camera connected to the computer using a USB cable. Stored or live images can be viewed on the computer monitor while the live image from the camera is simultaneously projected. This is possible by connecting the camera VGA or DVI output to the projector. - Page 25 Main Window Preview Window Preview window Tool bar - Preview Image File Insert image, move, Save as, & delete...
-
Page 26: Top Window Tool Bar Functions
Top window tool bar Functions File 6.2.1 ( Folder Icon) Initial Window (Before Camera Image is Present) New：Open new project. A blank white display is presented in the main window. Open：Open a project in a stored file such as the USB335 Folder. -
Page 27: Real Time (Live Camera Image)
Import From Device： (Camera) Imports copies of all the images in the camera memory. This can be up to 64 images. Places the images as thumbnails in the lower Preview Window. • Export to PPT： Saves the entire project in a PowerPoint file with each image appearing as a separate slide. -
Page 28: Paint Tool ( Annotation)
6.2.6 Paint tool This is a basic annotation or drawing tool, it can be used in the real time and the edit modes, right click for tool, left click to mark any region in the image. 1. Pointer：Mouse pointer 2. Laser：Click Laser to show a spot on the screen 3. -
Page 29: Image Preview View Tool Bar
Auto Adjust: Auto-adjust for the optimum image Capture: Capture the image in the camera memory Brightness +: Make the image brighter Brightness - Make the image darker 6.2.9 Image preview view Tool Bar ：Insert a new picture from a JPG image file into the Preview Window. Bring in a picture from the USB335 folder. -
Page 30: Preview Window
Menus for Operation Open a new project. Will be a mr2 file Select a project file, mr2 format Save in project file, update file Save in selected project file with mr2 format. Save image as JPG. Window opens Copy images from camera memory to Preview Window Save images to a PowerPoint file Image File Preview window... -
Page 31: Operation Information
6.3 Operation Information 6.3.1 Display image： Real time operation：Import a live image from the Camera. Import From Device：Import the images that are stored in the Camera. Will not provide images if memory is empty. Edit model open old file：Use Preview Window tool（ ）to open an old file in edit mode. -
Page 32: Edit Image： Annotation
6.3.2 Edit image： Annotation Annotate; ：Click any tool in the “paint tool” menu to modify the image. Edit and save：After editing picture, click the small picture icon in the preview area tool bar, and then save the picture. 6.3.3 USB335 Software Menus... - Page 33 USB335 SOFTWARE MENU Main Display Window Preview Window Images Real Time Freeze Paint Tool Full screen Image Adjust Tool Bar Functions File Real Time Edit Freeze Capture Paint Tool Full Screen Image Adjust Tool Bar for Preview Window Edit File Paint Tool Full screen Files: USB335 Folder...
-
Page 34: Chapter 7 Troubleshooting
Problem 3: Image is too bright or dark. The desired part of the image can not be seen because it is too bright or dark. Solution – Adjust the brightness “BRT+/- “ Control Button on the remote control. * The updated information will be regularly released on the Dukane web site, please visit our web site http://www.dukcorp.com/av. - Page 35 USB335 SOFTWARE MENU Main Display Window Preview Window Images Real Time Freeze Paint Tool Full screen Image Adjust 2900 Dukane Drive St. Charles, Illinois 60174 www.dukcorp.com/av Tool Bar for Preview Window Edit File Paint Tool Full screen Files: USB335 Folder...
