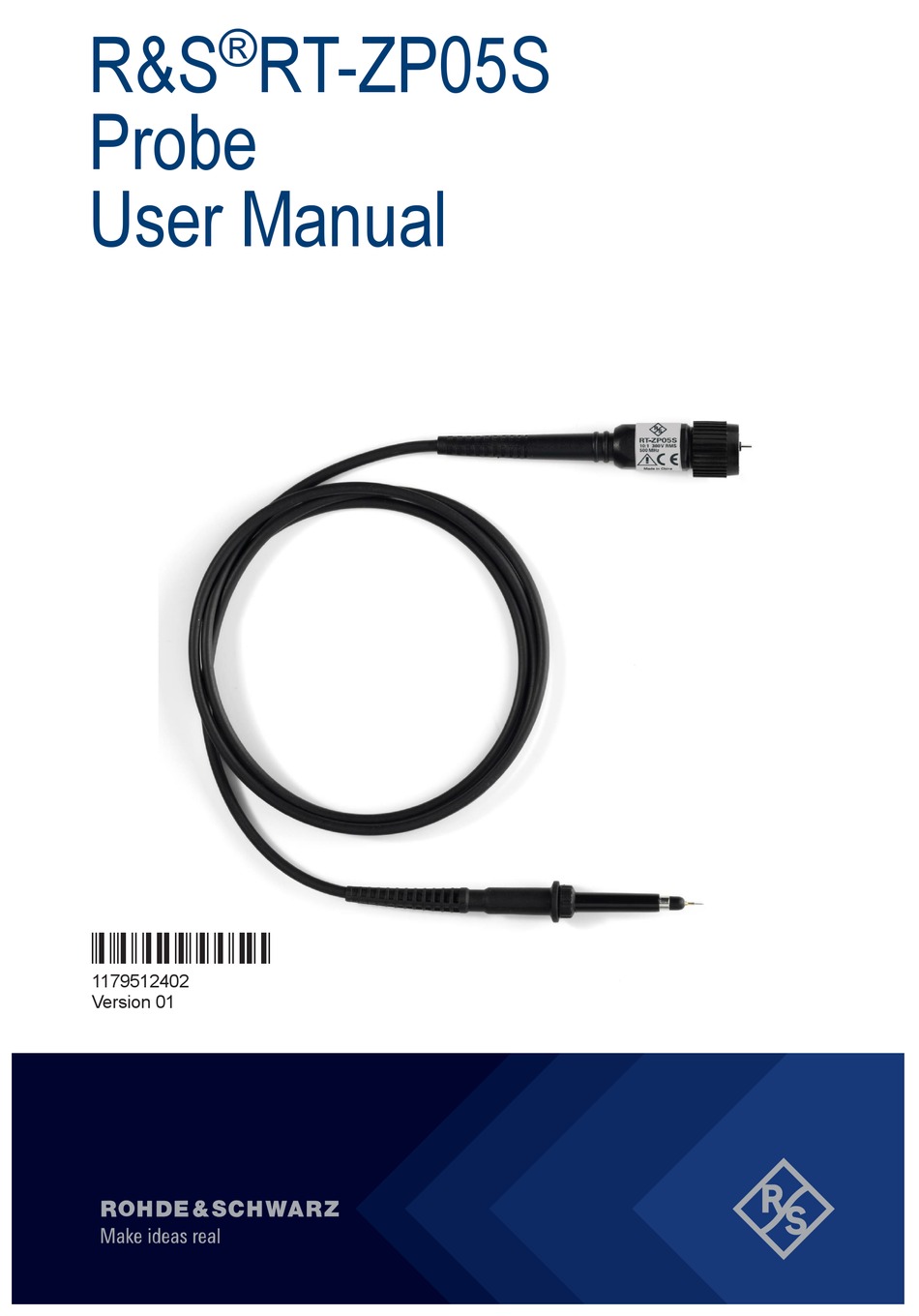

- Page 1 ® R&S RT-ZP05S Probe User Manual (;ÝÁH2) 1179512402 Version 01...
- Page 2 Rohde & Schwarz GmbH & Co. KG. Trade names are trademarks of the owners. ® 1179.5124.02 | Version 01 | R&S RT-ZP05S Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol, e.g. ® R&S RT-ZP05S is indicated as R&S RT-ZP05S.
-
Page 3: Safety And Regulatory Information
RT-ZP05S Safety and Regulatory Information The product documentation helps you use the R&S RT-ZP05S safely and effi- ciently. Follow the instructions provided here and throughout the manual. Use the product only for its intended use and within its performance limits. If the probe assembly is used in a manner not specified by the manufacturer, the pro- tection provided by it may be impaired. - Page 4 ® Safety and Regulatory Information R&S RT-ZP05S Part 031: Safety requirements for hand-held probe assemblies for electrical mea- surement and test Measurement Categories IEC 61010-2-030 defines measurement categories that rate instruments on their ability to resist short transient overvoltages that occur in addition to the working voltage.
- Page 5 ® Safety and Regulatory Information R&S RT-ZP05S Meaning of safety labels Safety labels on the product warn against potential hazards. Potential hazard Read the product documentation to avoid personal injury or product damage. Electrical hazard Indicates live parts. Risk of electric shock, fire, personal injury or even death.
-
Page 6: Specifications
® Specifications R&S RT-ZP05S Specifications Table 2-1: Electrical specifications Attenuation ratio 10 : 1 Bandwidth 500 MHz (meas.), –3 dB Rise time 0.7 ns (meas.) Input impedance 10 MΩ II 10 pF (meas.) Input voltage max. 300 V (450 V transient overvoltage) -
Page 7: Included In Delivery

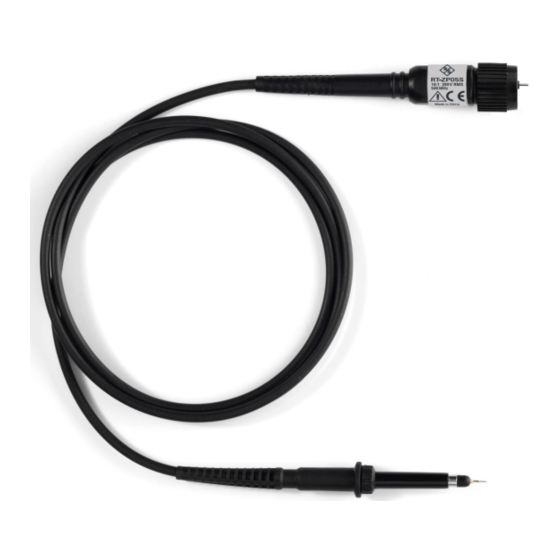

® Specifications R&S RT-ZP05S Included in delivery Figure 2-2: Parts included in delivery 1 = Probe 2 = Ground clip 3 = Protection cap 4 = Ground lead 5 = Retractable hook 6 = Adjustment tool 7 = BNC adapter... - Page 8 ® Adjustment R&S RT-ZP05S Adjustment The probe can be adjusted for low (LF) and high frequency compensation (HF). Figure 3-1: LF compensation trimmer LF adjustment 1. Connect the probe to a 1 kHz square wave signal. 2. Adjust LF compensation trimmer T1 for optimum square wave response.
-
Page 9: Maintenance
® Maintenance R&S RT-ZP05S Cleaning Maintenance Cleaning 1. Clean the outside of the product using a soft cloth moistened with either distil- led water or isopropyl alcohol. Keep in mind that the casing is not waterproof. Note: Do not use cleaning agents. Solvents (thinners, acetone), acids and bases can damage the labeling or plastic parts.
