Replacing a Disk Drive
Prior to using this procedure, verify that the seal label located on the bottom
Note
front of the unit reads, "Please read HDD FRU documentation before opening". If
this statement does not appear on the label, the disk drives in this unit are not
replaceable and the unit must be returned to the manufacturer for service.

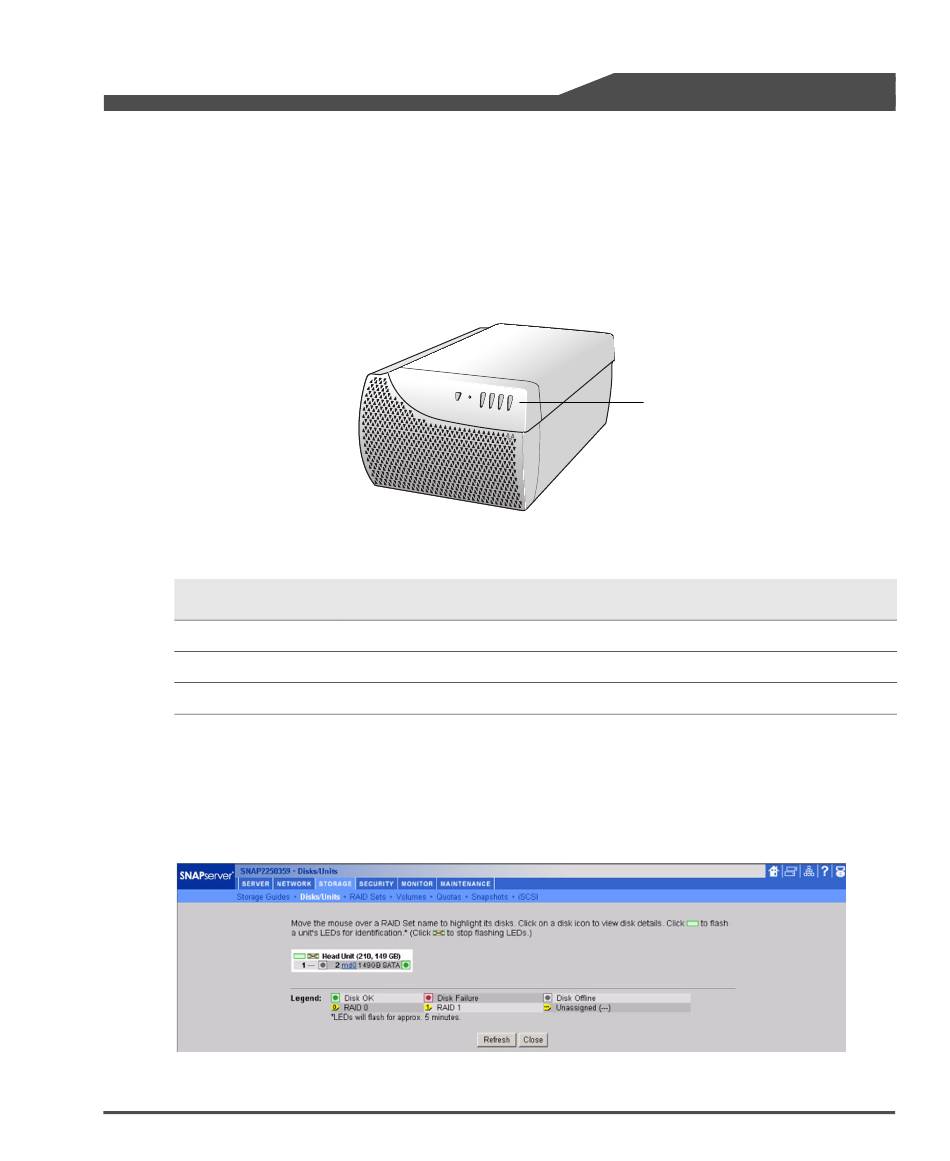

The disk drive LED is located on the bezel, as illustrated below:
If a disk drive fails, the status light glows amber.
Disk Drive LED
Off
Blinking green
Solid amber
Determine which Drive has Failed
Use the GuardianOS Admin tool to determine which drive has failed. Navigate to
Storage > Disks/Units
offline.
Field Service Documentation
Copyright © 2009, Overland Storage, Inc. All rights reserved. Information in this document is subject to change without notice and does
not represent a commitment on the part of Overland Storage or any of its subsidiaries.
Drive is not present.
Disk drive installed properly and is active
Disk drive installed, but not working correctly
to view disk status. In the screen below, Disk 1 has failed or is

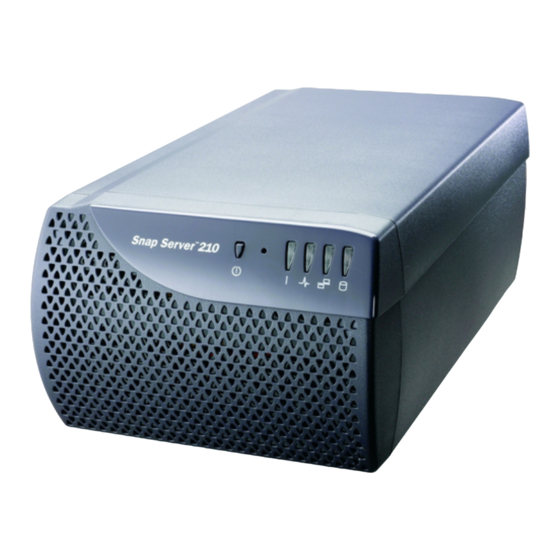

Snap Server 210
Disk Drive LED
1
