Overland Storage Snap Server 210 Quick Start Manual page 3

Snap Server 210

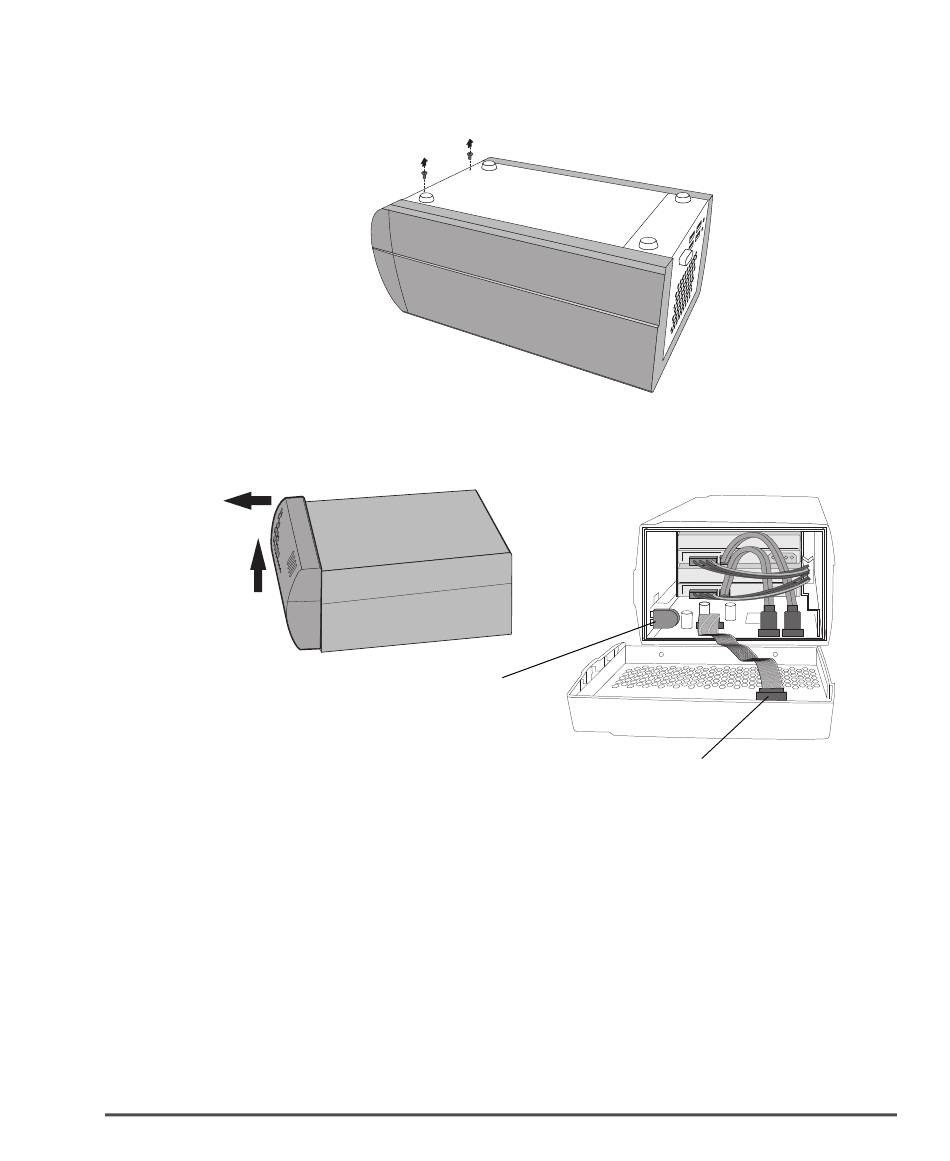

Turn the server over and remove the two screws on the underside.
2
Return the server to its upright position. Carefully lift the front bezel up and pull
3
out. A ribbon cable is attached to the front bezel, so do not pull out too far.
Disconnect the ribbon cable and set the front bezel aside.
4
Slide the chassis out of the cover using the tab in the lower left corner (as you are
5
facing the server); then put the cover aside.
Field Service Documentation
Copyright © 2009, Overland Storage, Inc. All rights reserved. Information in this document is subject to change without notice and does
not represent a commitment on the part of Overland Storage or any of its subsidiaries.
Pull this tab to slide
chassis from cover
Disconnect ribbon cable
Replacing a Disk Drive
3
