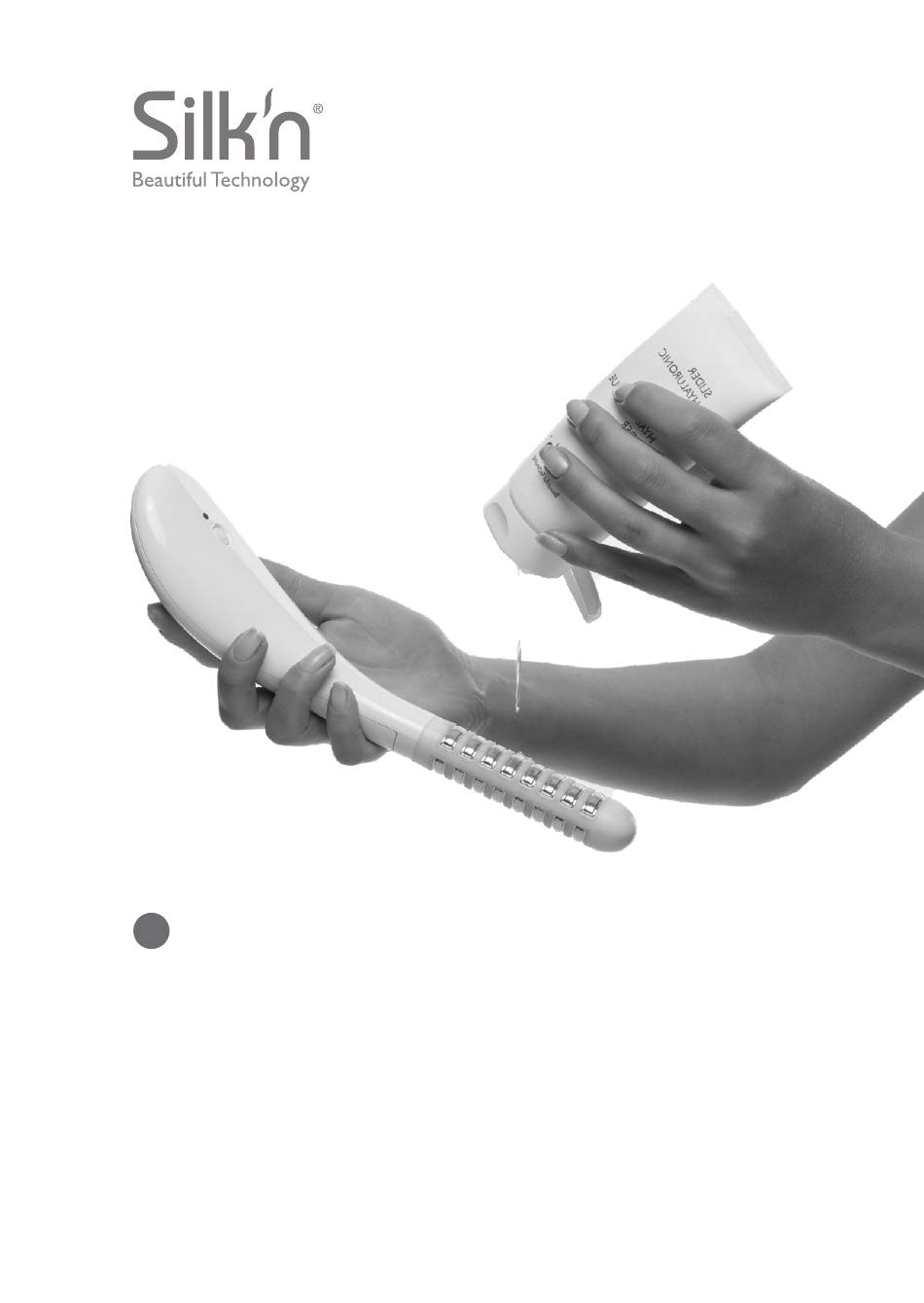

- Page 1 Tightra H2401 USER MANUAL...
- Page 2 Silk'n Tightra...
-
Page 3: Table Of Contents
Table of contents Warnings ................2 Contraindications ............... 4 Safety features ..............7 Get to know your device ............. 7 4.1 Device description ....................7 4.2 Intended use ......................8 4.3 Package contents .....................8 4.4 Device parts .........................8 4.5 Device controls ......................9 4.6 Device shutdown .................... -
Page 4: Warnings
1. Warnings Before first use, please read this user manual in full, and keep it for future use. We recommend you refamiliarise yourself with the instructions before each treatment. Keep the device, USB cable and adapter dry at all times. Do not use the device while bathing or taking a shower. - Page 5 Keep the adapter accessible at all times, so it can be removed from the electricity supply easily in case of emergency. Disconnect the device from the electricity supply after charging. Never pull the adapter out of the socket by the cable. Always remove it by taking hold of the adapter.
-
Page 6: Contraindications
Children must not play with the packaging. They may injure themselves with the packaging material, or swallow small parts and choke. This unit has been designed and tested to meet the requirements of electromagnetic, electrostatic, radio frequency interference standards. However, the possibility of electromagnetic or other interference may still exist. - Page 7 Do not use if you: are pregnant or nursing. have had any surgical procedure in the vaginal or pelvic area within the last 12 months, or before complete healing. have an active electrical implant/device in any region of the body, a pacemaker or internal defibrillator. have a metal implant, including a metal intrauterine device (IUD), in the treatment area.
- Page 8 have a current urinary tract infection, pelvic or pelvic tract infection. have received radiation therapy or chemotherapy treatments within the past 3 months. cannot sense heat properly because of an illness, or other health related issue. are menstruating. have any other condition which in your physician’s opinion would make it unsafe for you to use the device.
-
Page 9: Safety Features
3. Safety features With Silk'n safety comes first. The device has these safety features: Heat stabilizer: To prevent overheating, each of the 16 electrodes (#6), (#7) has a built-in heat stabilizer. When... -
Page 10: Intended Use
4.3 Package contents y The device y User manual y USB cable & adapter y Warranty card y Silk'n Intimate Gel y Storage case 4.4 Device parts y USB port (#1) y Electrodes - internal mode (#6) -
Page 11: Device Controls
4.5 Device controls Control Action Description Control Long press Device activated - internal mode, button energy level 1 (low); treatment mode (#3) (#4) indicator light is off (no light) Once active, long press shuts the device down; 1 vibration. Short press x1 Internal mode - energy level 2 (medium) Short press x2... -
Page 12: Device Shutdown
Control Action Description Battery Green - blinks Device charging indicator Green - constant Device charged (#2) light Orange - blinks Low charge in battery Orange - constant No charge in battery, treatment mode inactive 4.6 Device shutdown The device shuts down in one of 3 situations: You have completed a 20 minute treatment session. -
Page 13: Energy Levels
To change treatment modes: Turn off the device and then turn it on. To access the mode you want, see step 2 in sections 6.2 Internal mode treatment or 6.3 External mode treatment). 4.8 Energy levels Each treatment mode has 3 energy levels: level 1 (low), level 2 (medium), level 3 (high). -
Page 14: Treatments
5. Treatments 5.1 Treatment plan Each internal or external treatment lasts for 20 minutes. Use the device in one or both modes 2 or 3 times a week for 4 weeks. After that, reduce the use gradually to once a week, then to every 2 weeks or less frequently, to meet your specific needs. -
Page 15: Possible Side Effects
Stop use immediately if you see full redness of the skin, blistering or burns. Stop use immediately if you have any pain, or if the skin or the device becomes too hot. 5.3 Possible side effects When used according to the instructions, side effects and complications associated with the use of the device are uncommon. -
Page 16: Get Started
Blisters or burns Recommendation: (External mode) Cool the affected area and apply anti-burn cream. Wait until the effect has cleared before your next In very rare cases, you may treatment and use a lower energy experience some blistering or level. burning of the skin around the vagina. -
Page 17: Internal Mode Treatment
Never use flammable liquids such as alcohol (including perfumes, sanitizers, or other applications containing alcohol), or acetone to clean the skin before use. Remove all piercing or metal from the treatment area before use. 6.2 Internal mode treatment Apply a small amount of the gel supplied with the device to all the electrodes (#6), (#7). -
Page 18: External Mode Treatment
If after 5 minutes you feel comfortable with the heat, move to energy level 2 by short pressing the control button (#3). To use energy level 3 (high), short press the control button (#3) one more time. Keep the device in place for 20 minutes. We recommend that you lie still and do not move about. - Page 19 For external mode treatments, turn on the device by long pressing the control button (#3), then short press it 3 times. The external mode will be active, and the device will be set to energy level 1. The treatment mode indicator light (#4) will be on (constant white).
-
Page 20: After Treatment
If after 5 minutes you feel comfortable with the heat, move to energy level 2 by short pressing the control button (#3). To use energy level 3 (high), short press the control button (#3) one more time. If the energy level is right for you but it feels too hot now and again, increase the area you are treating and/or keep moving the device around the treatment area. -
Page 21: Cleaning, Maintenance & Storage
7. Cleaning, maintenance & storage Use a vaginal wipe to remove any gel residue off the device including the treatment surface. This prevents any gel from solidifying or damaging the device. Then dry the device with a clean paper towel. After cleaning, we recommend you store the device in the storage case. -
Page 22: Customer Service
For more information visit our website www.silkn.co.il. In the event of a problem with the device, please contact Customer Service by email at contact@silkn.co.il, or telephone 1-700-700-309. 10. Consumables You can purchase more Silk'n Intimate Gel from our website: www.silkn.co.il. -
Page 23: Warranty
11. Warranty Please refer to the separate product warranty booklet for complete information. The manufacturer accepts no liability for damage or injuries caused by improper or incorrect use. 12. Disposal If your device reaches its End of Life stage, be sure to follow your country’s laws for the disposal of electrical items. -
Page 24: Device
Disconnect the device: Remove the device from the electricity supply, remove the USB cable (#9) and make sure the battery is empty. Open the casing: Use a small tool (e.g., screwdriver or utility knife), to open the device casing. Remove the battery: Place the device on a sturdy table. Hold the printed circuit board (green) with one hand, and remove the battery carefully with the other hand. -
Page 25: Specifications
13. Specifications Model H2401 Technology RT™ Bi-Polar RF 1MHz ±30%; 10W max (frequency; maximum output power, maximum output current) Operation & safety Temperature sensor to prevent skin overheating Touch sensor and movement sensor Transport & storage Temperature: - 40 to +70°C between uses and storage Relative humidity: 90%rH max condition... -
Page 26: Signs & Symbols
Mode of operation Continuous Adapter KSA-10D-050200HE Adapter input; output 100-240V; 50/60Hz; 0.3A; 5.0V - 2.0A Expected service life of the 5 years equipment 14. Signs & symbols A statement or event that indicates a possible or impending danger when using the device. Important information about using or maintaining the device. -
Page 27: Labeling
Manufacturer. Product serial number. This device is not suitable for use in the presence of flammable anaesthetic mixture with air or with oxygen or nitrous oxide. 15. Labeling... -
Page 28: Output Power Curves
16. Output power curves The curve shows the changes for each mode at specific power settings. -
Page 29: Emc Technical Results
17. EMC Technical results... -
Page 30: Legal Notice
Home Skinovations Ltd. Specifications are subject to change without notice. Silk'n and the Silk'n logo are registered trademarks of Home Skinovations Ltd, Tavor Building, Shaar Yokneam P.O. Box 533, Yokneam 2069206, ISRAEL. - Page 31 contact@silkn.co.il www.silkn.co.il...
