Summary of Contents for Grundfos GiM CIU

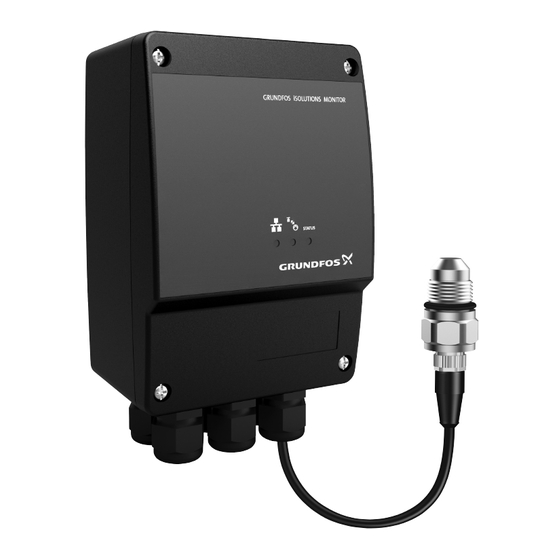

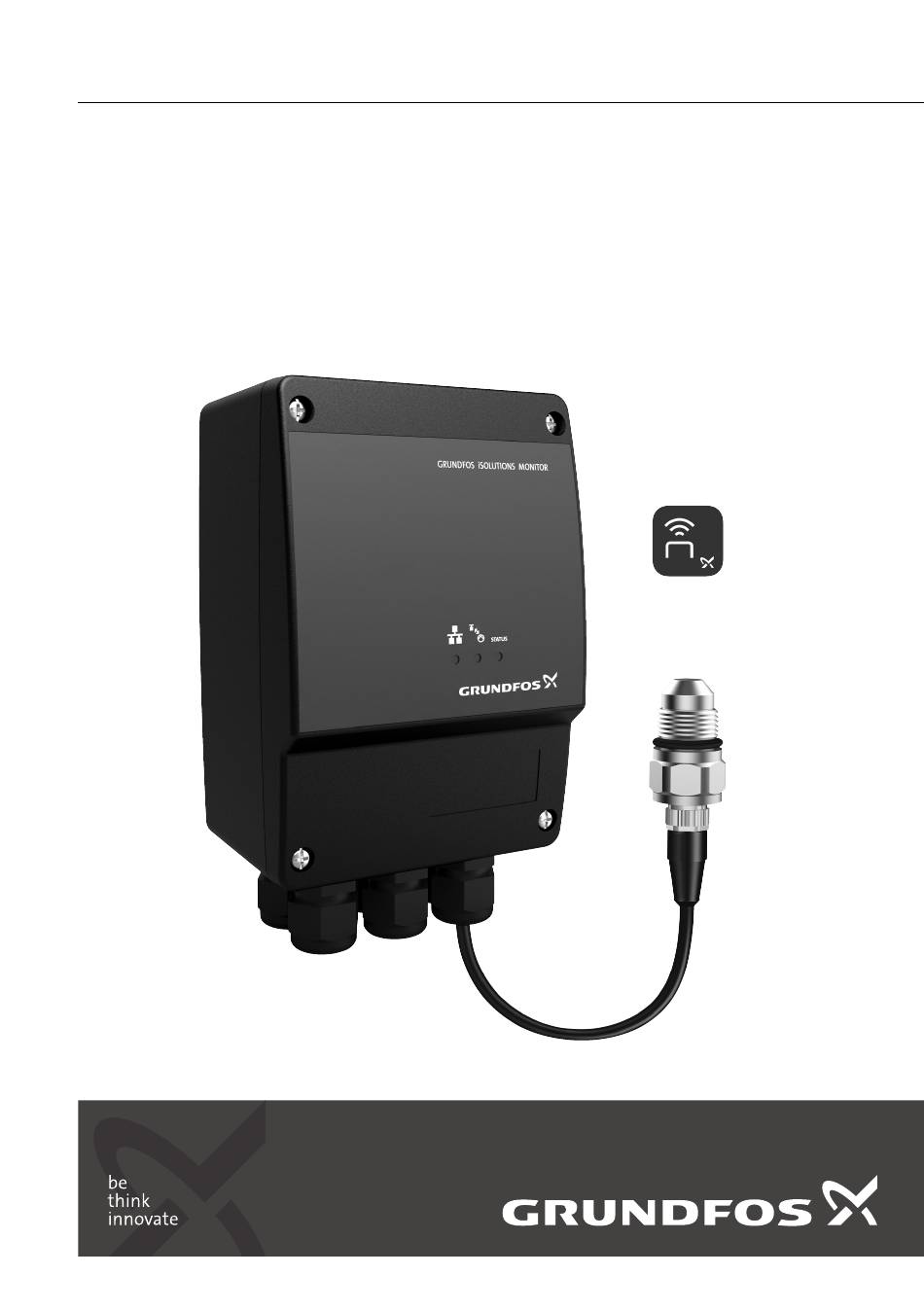

- Page 1 GRUNDFOS INSTRUCTIONS GiM CIU Installation and operating instructions...
- Page 3 GiM CIU English (GB) Installation and operating instructions ........4 Appendix A .
-
Page 4: Table Of Contents
1.1 Hazard statements Table of contents The symbols and hazard statements below may appear in Grundfos installation and operating General information ... . . 4 instructions, safety instructions and service Hazard statements . -
Page 5: Product Introduction
VTU 2.2 Intended use sensor fault or missing power for the real-time The product is intended for use with a Grundfos CR, clock. CRE pump. It can be used for monitoring the pump but not for controlling it. -
Page 6: Receiving The Product
Indoor installation: The product must be installed 3.2 Scope of delivery in a well-ventilated room to ensure cooling of its The packaging contains the following items: components. • GRUNDFOS iSOLUTIONS MONITOR CIU unit Related information (GiM CIU) 2.5.1 Nameplate • installation and operating instructions for the product. -
Page 7: Mechanical Installation
5. Mechanical installation Pos. Dimensions [mm] (inch) 115 (4.53") 5.1 Mounting on the wall 91 (3.58") Mount the unit on a surface. The cable glands must face downwards. ø4.5 (0.18") CAUTION 81.5 (3.21") The product can fall down Minor or moderate personal injury Insert wall plugs, if applicable. - Page 8 WARNING Electric shock Death or serious personal injury ‐ Switch off the power supply before making any electrical connections. Make sure that the power supply cannot be switched on accidentally. ‐ The protective earth from the socket outlet must be connected to the protective earth in the pump.
-
Page 9: Terminals
6.1 Terminals 6.2 Connecting the power supply WARNING Remember to tighten the cable glands Electric shock before you switch on the power. Death or serious personal injury The tightening torque is 1.5 Nm. ‐ Make sure there is proper insulation around the supply cable. -
Page 10: Connecting Genibus To The Pump
Lead the GENIbus cable through the cable gland. Connect the conductors to terminals A, Y and B. Connect the cable screen under the earth clamp, and tighten the earth clamp. net.grundfos.com/qr/i/99802939 Tighten the cable gland. Fit the front cover. Example:... - Page 11 Pos. Colour Designation Description White Dry run Brown Supply Green Ground Yellow Pt100 Grey Pt100 Pink Analog Blue Ground Ground For more information on the VTU sensor, see the data sheet. net.grundfos.com/qr/i/99873130 Related information 6. Electrical connection...
-
Page 12: Connecting The Io Connections
WARNING Electric shock Death or serious personal injury ‐ The IO connections of the GIM CIU unit must be connected to SELV or SELV-E circuits only. DO_NO (Max. 30 V/500 mA) DO_COM (Max. 30 V/500 mA) MODBUS_D1... -
Page 13: Starting Up The Product
Cable entry clamping range The product cannot be serviced. • Contact Grundfos. If the product is faulty, it must be replaced. 8.1 Cleaning the product The product must only be cleaned with a clean dry or a soapy damp cloth. -
Page 14: Disposing Of The Product
9600 bit/s This product or parts of it must be disposed of in an environmentally sound way. GENIbus connection, for Grundfos GO Remote Use the public or private waste collection service. If this is not possible, contact the nearest Transceiver RS-485 Grundfos company or service workshop. - Page 15 Changes or modifications made to this equipment not expressly approved by Grundfos may void the user’s authority to operate this equipment. This radio transmitter (IC: 10447A-GIM1A) has been approved by ISED to operate with Grundfos cellular module CIM 280-US (IC: 10447A-CIM2X034G). Only the original Grundfos supplied antenna, part no. 99838775, is permitted.
- Page 16 Toute modification apportée à cet appareil n'étant pas explicitement approuvée par Grundfos peut annuler l'autorisation du FCC à faire fonctionner cet appareil.
- Page 17 Appendix B B.1. China RoHS, table C 产品中有害物质的名称及含量 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴联苯醚 (Pb) (Hg) (Cd) (Cr6+) (PBB) (PBDE) 印刷电路板 紧固件 本表格依据 SJ/T 11364 的规定编制 O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。 X： 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 该规定的限量要求。 该产品环保使用期限为 10 年，标识如左图所示。 此环保期限只适用于产品在安装与使用说明书中所规定的条件下工作...
- Page 18 HU: EU megfelelőségi nyilatkozat Mi, Grundfos, izjavljujemo s punom odgovornošću Mi, a Grundfos vállalat, teljes felelősséggel da je proizvod GiM CIU, na koja se izjava odnosi u kijelentjük, hogy a(z) GiM CIU termék, amelyre az nastavku, u skladu s dolje navedenim direktivama alábbi nyilatkozat vonatkozik, megfelel az Európai...
- Page 19 My, Grundfos, oświadczamy z pełną A Grundfos declara sob sua única responsabilidade odpowiedzialnością, że nasz produkt GiM CIU, que o produto GiM CIU, ao qual diz respeito a którego deklaracja niniejsza dotyczy, jest zgodny z declaração abaixo, está em conformidade com as następującymi dyrektywami Rady w sprawie...
- Page 20 RoHS 2 Directives (2011/65/EU and 2015/863/ EU). Standard used: EN IEC 63000:2018 This EC declaration of conformity is only valid when published as part of the Grundfos installation and operating instructions (publication number 99802941). Bjerringbro, 1/November/2020 Dorte Jepsen Senior Manager...
- Page 21 Argentina China Greece Bombas GRUNDFOS de Argentina S.A. GRUNDFOS Pumps (Shanghai) Co. Ltd. GRUNDFOS Hellas A.E.B.E. Ruta Panamericana km. 37.500 Centro 10F The Hub, No. 33 Suhong Road 20th km. Athinon-Markopoulou Av. Industrial Garin Minhang District P.O. Box 71 1619 - Garín Pcia. de B.A.
- Page 22 Fax: +66-2-725 8998 Fax: + 370 52 395 431 Москва, RU-109544, Russia Turkey Тел. (+7) 495 564-88-00 (495) 737-30-00 Malaysia GRUNDFOS POMPA San. ve Tic. Ltd. Факс (+7) 495 564 8811 GRUNDFOS Pumps Sdn. Bhd. Sti. E-mail grundfos.moscow@grundfos.com 7 Jalan Peguam U1/25 Gebze Organize Sanayi Bölgesi...
- Page 23 99802941 11.2020 ECM 1299999...
