- Page 1 Axon Fleet 3 Camera System User Manual Document Revision: BETA A May 2021...
- Page 2 Axon Fleet 3 Camera System User Manual Axon, Axon Evidence, Axon Fleet, and Axon Signal, are trademarks of Axon Enterprise, Inc., some of which are registered in the US and other countries. For more information, visit www.axon.com/legal. All rights reserved. ©2021 Axon Enterprise, Inc.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............................4 Additional Reading ............................ 4 Getting to Know Your Axon Fleet 3 Camera System ................6 Axon Fleet 3 Dual-View Camera Hardware .................... 6 Axon Fleet Interior Camera Hardware ....................8 Axon HUB Hardware ..........................9 Recording with the Axon Fleet 3 System .................... -
Page 4: Introduction
Axon Evidence using LTE or Wi-Fi operations. The Axon Fleet 3 system usually consists of 2 cameras: one installed in the front of the vehicle in a windshield mount and the second pointed at the law enforcement vehicle’s prisoner compartment, and the Fleet Hub. - Page 5 Axon Fleet 3 Camera System User Manual For information on the optional Axon Fleet 3 Wireless Microphone, see the Axon Fleet 3 Wireless Microphone Installation and User Manual. Axon Academy provides training resources for Axon Fleet 3 and Axon Evidence. Visit academy.axon.com...
-
Page 6: Getting To Know Your Axon Fleet 3 Camera System

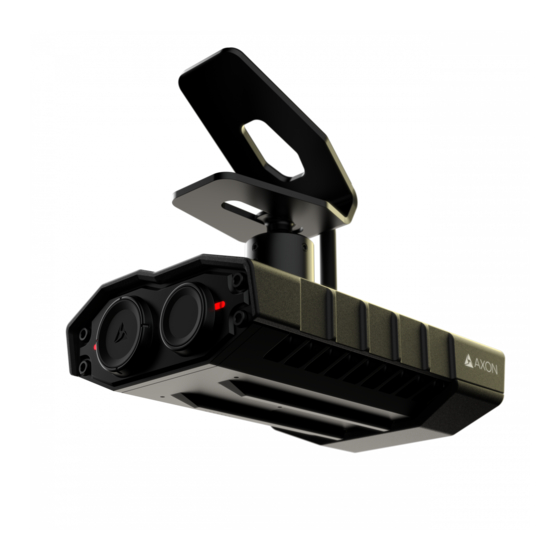

Axon Fleet Dashboard application. See the Axon Fleet Dashboard Manual for more information. Axon Fleet 3 Dual-View Camera Hardware The following images show the different components on the Axon Fleet 3 Dual-View camera, Model AX1031. Roll set screw Swivel Ball Joint... - Page 7 Primary LED 3 Microphones and 1 Speaker (on bottom of camera) Axon Fleet 3 Dual-View Camera back Primary Button – Used to start and stop recording for Dual-View Camera. Secondary Button – Used to start and stop recording for Interior Camera.
-
Page 8: Axon Fleet Interior Camera Hardware
Blinking red Camera updating Blinking white Error Encountered Blinking yellow Axon Fleet Interior Camera Hardware The following images show the different components on the Axon Fleet 3 Interior Camera, Model AX1032. Camera cable Angle adjustment screws Camera mount Lens 2 Microphones... -
Page 9: Axon Hub Hardware
Axon Fleet 3 Camera System User Manual Microphones – For recording in-cabin audio. Located on the back of the Interior Camera. Axon HUB Hardware The following image shows the HUB, Model AX1033. Restart Button Restart Button – When needed as part of a troubleshooting procedure, use a paperclip to depress and hold the restart button for 5 seconds to restart the Hub and cameras. -
Page 10: Recording With The Axon Fleet 3 System
With default settings, the system does not capture audio in BUFFERING mode, so anything recorded in that mode will be video-only. BUFFERING mode starts only after the Axon Fleet system is turned on via power on of the Fleet Hub. -
Page 11: Event Mode (Starting Recording)
1080p, as shown in the following table. Higher resolution videos are larger, take longer to upload and consume more storage on Axon Evidence. Your agency-wide camera recording resolutions can be selected by an agency administrator in Axon Evidence. -
Page 12: Maximum Video Length
Axon Fleet Dashboard Manual for more information. Dual-View Camera Pan and Tilt The Axon Fleet 3 Dual-View Camera is mounted on a swivel-ball joint that allows the camera to be panned and tilted to ensure objects of interest are within the camera’s field of view. An Internal spring provides a consistent feel during adjustment. -
Page 13: Axon Signal
Axon Signal technology can automatically move your Axon Fleet and body cameras from BUFFERING to EVENT mode. When Axon Signal is triggered, such as by a light bar activation, the Fleet Hub alerts the ethernet connected Axon Fleet 3 cameras. Additionally, when using Axon Body-Worn Cameras (BWC) an Axon Signal Vehicle device, added during installation, alerts nearby Axon BWCs using Axon Signal technology. -
Page 14: Notification Reference Tables
Respond Livestreaming started Three rising pitch tones LED Status The Primary and Secondary LEDs on the back of the Axon Fleet 3 Dual-View camera provide information about camera operating status. The Operation LED provides information about the recording status of the Dual-View Camera. -
Page 15: Secondary Led
Axon Fleet 3 Camera System User Manual Secondary LED The Secondary LED shows the Interior Camera’s current operating status. Secondary LED – Interior Camera Status LED Behavior Powering on Rapid blinking green Buffering Solid green Recording Blinking red Camera updating... -
Page 16: Troubleshooting And Other Information
For a full list of the warning associated with this product, see www.axon.com. Radio Waves The frequency bands and the maximum transmitted power (EIRP) in EU for Axon Fleet Hub system are listed below: 2402 – 2480 MHz, 9.92 dBm (EIRP) 2412 –... - Page 17 Axon Fleet 3 Camera System User Manual Exposure to Radio Frequency Radiation This product complies with EU requirements regarding restriction of exposure of persons to radio-frequency energy (RF) emitted by telecommunication and radio devices as it is designed and manufactured in such a way as not to exceed the exposure limits indicated by the European Union Commission.
- Page 18 Axon Fleet 3 Camera System User Manual FCC Radiation Exposure Statement This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
-
Page 19: Compliance Marks
Axon Fleet 3 Camera System User Manual Pour se conformer aux exigences de conformité RF canadienne l'exposition, cet appareil et son antenne ne doivent pas être co-localisés ou fonctionnant en conjonction avec une autre antenne ou transmetteur. Pour se conformer aux exigences de conformité CNR 102 RF exposition, une distance de séparation d'au moins 20 cm doit être maintenue entre l'antenne de cet appareil et toutes...
