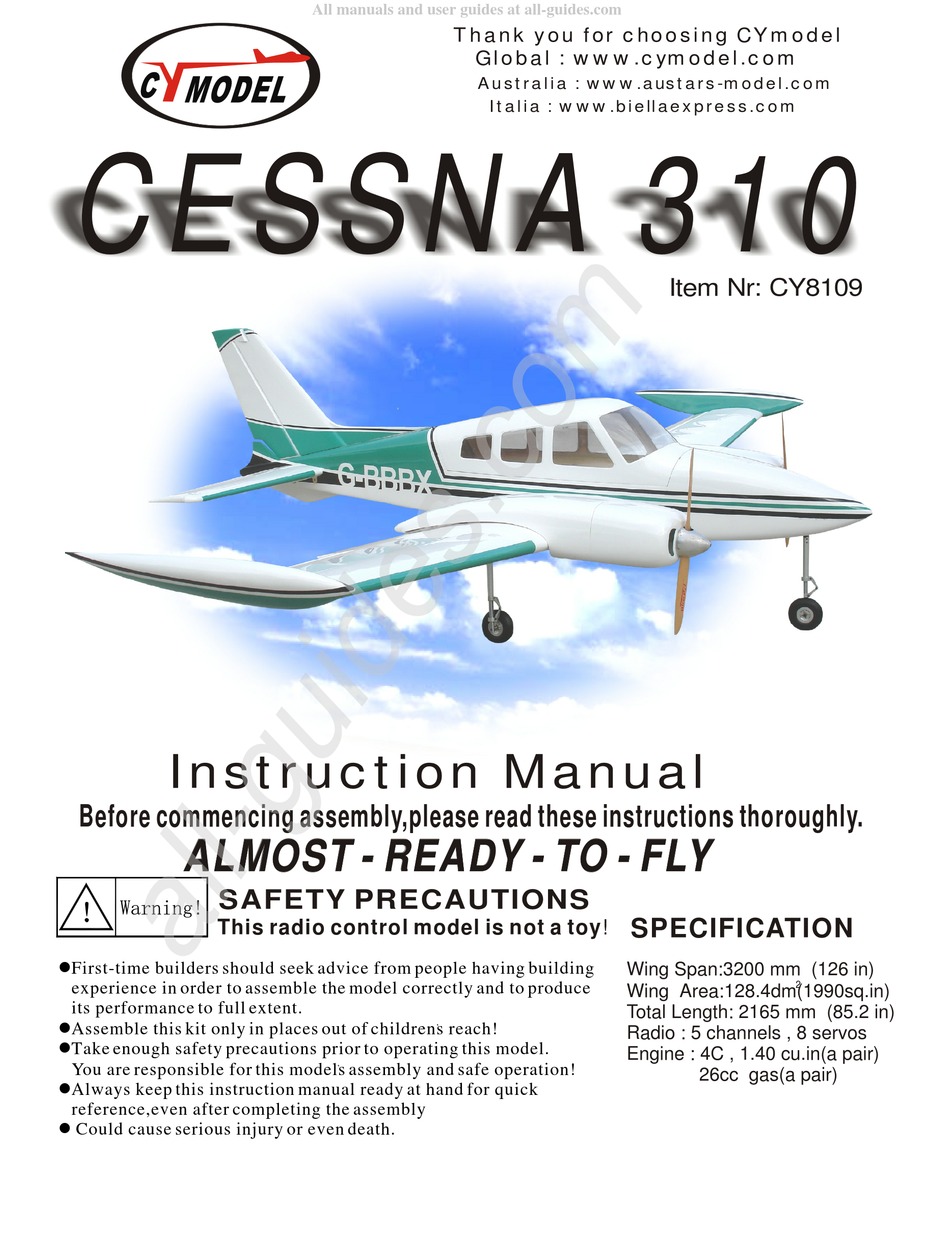

CESSNA 310
Instruction Manual
Before commencing assembly,please read these instructions thoroughly.
ALMOST - READY - TO - FLY
ALMOST - READY - TO - FLY
SAFETY PRECAUTIONS
This radio control model is not a toy!
lFirst-time builders should seek advice from people having building
experience in order to assemble the model correctly and to produce
its performance to full extent.
lAssemble this kit only in places out of childrens reach!
lTake enough safety precautions prior to operating this model.
You are responsible for this models assembly and safe operation!
lAlways keep this instruction manual ready at hand for quick
reference,even after completing the assembly
l Could cause serious injury or even death.
All manuals and user guides at all-guides.com
Thank you for choosing CYmodel
Global : www.cymodel.com
Australia : www.austars-model.com
,
,
Italia : www.biellaexpress.com
SPECIFICATION
Wing Span:3200 mm (126 in)
Wing Area:128.4dm(1990sq.in)
Total Length: 2165 mm (85.2 in)
Radio : 5 channels , 8 servos
Engine : 4C , 1.40 cu.in(a pair)
Item Nr: CY8109
2
26cc gas(a pair)
