CYmodel Bucker Bu.133 Jungmeister Instruction Manual

Advertisement

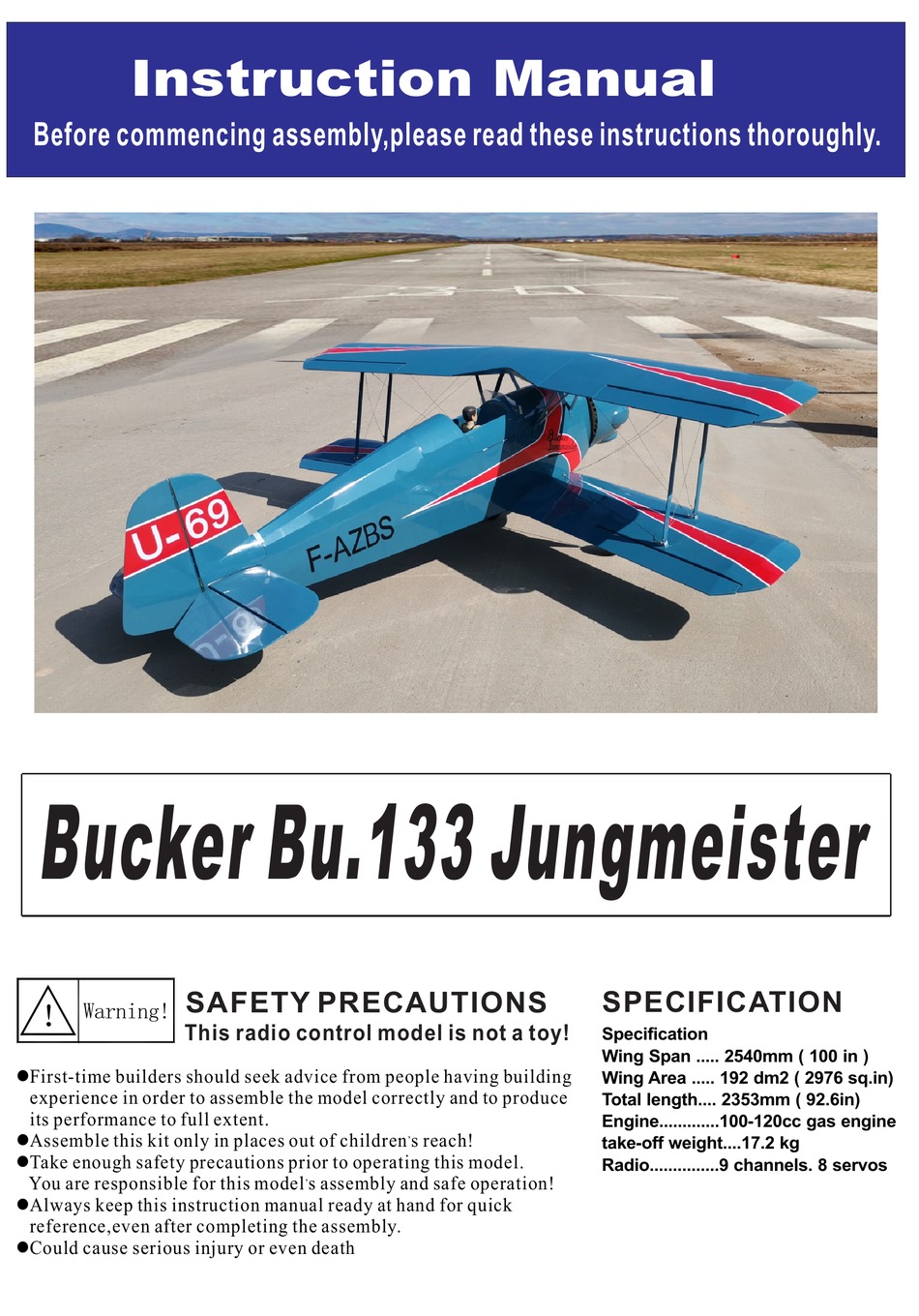

Instruction Manual
Before commencing assembly,please read these instructions thoroughly.
Bucker Bu.133 Jungmeister
SAFETY PRECAUTIONS
Warning!
This radio control model is not a toy!
First-time builders should seek advice from people having building
experience in order to assemble the model correctly and to produce
its performance to full extent.
Assemble this kit only in places out of children s reach!
Take enough safety precautions prior to operating this model.
You are responsible for this model s assembly and safe operation!
Always keep this instruction manual ready at hand for quick
reference,even after completing the assembly.
Could cause serious injury or even death
,
,
SPECIFICATION
Specification
Wing Span ..... 2540mm ( 100 in )
Wing Area ..... 192 dm2 ( 2976 sq.in)
Total length.... 2353mm ( 92.6in)
Engine.............100-120cc gas engine
take-off weight....17.2 kg
Radio...............9 channels. 8 servos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bucker Bu.133 Jungmeister and is the answer not in the manual?

Questions and answers

Reinhard Melz
February 1, 2025

Hello, please tell me, whether the center of gravity (Bücker ****) is marked at the upper or the lower wing in your manual ??

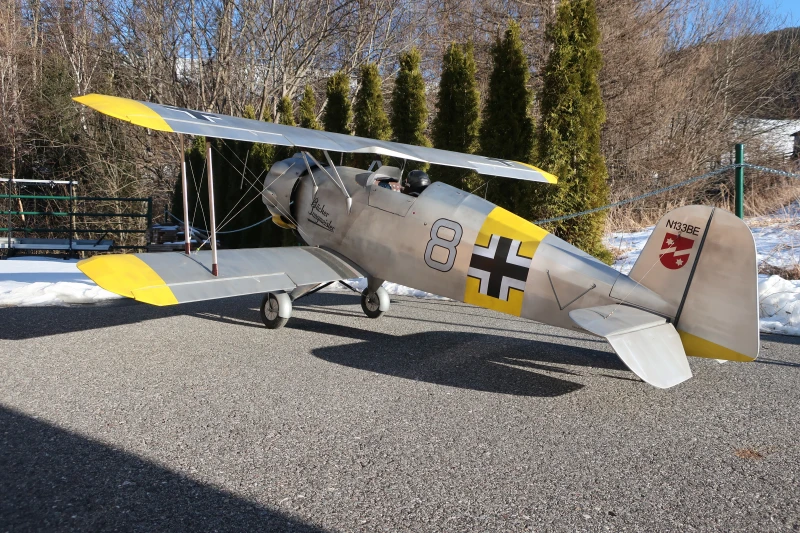

User image 679d76bcbbf0d
