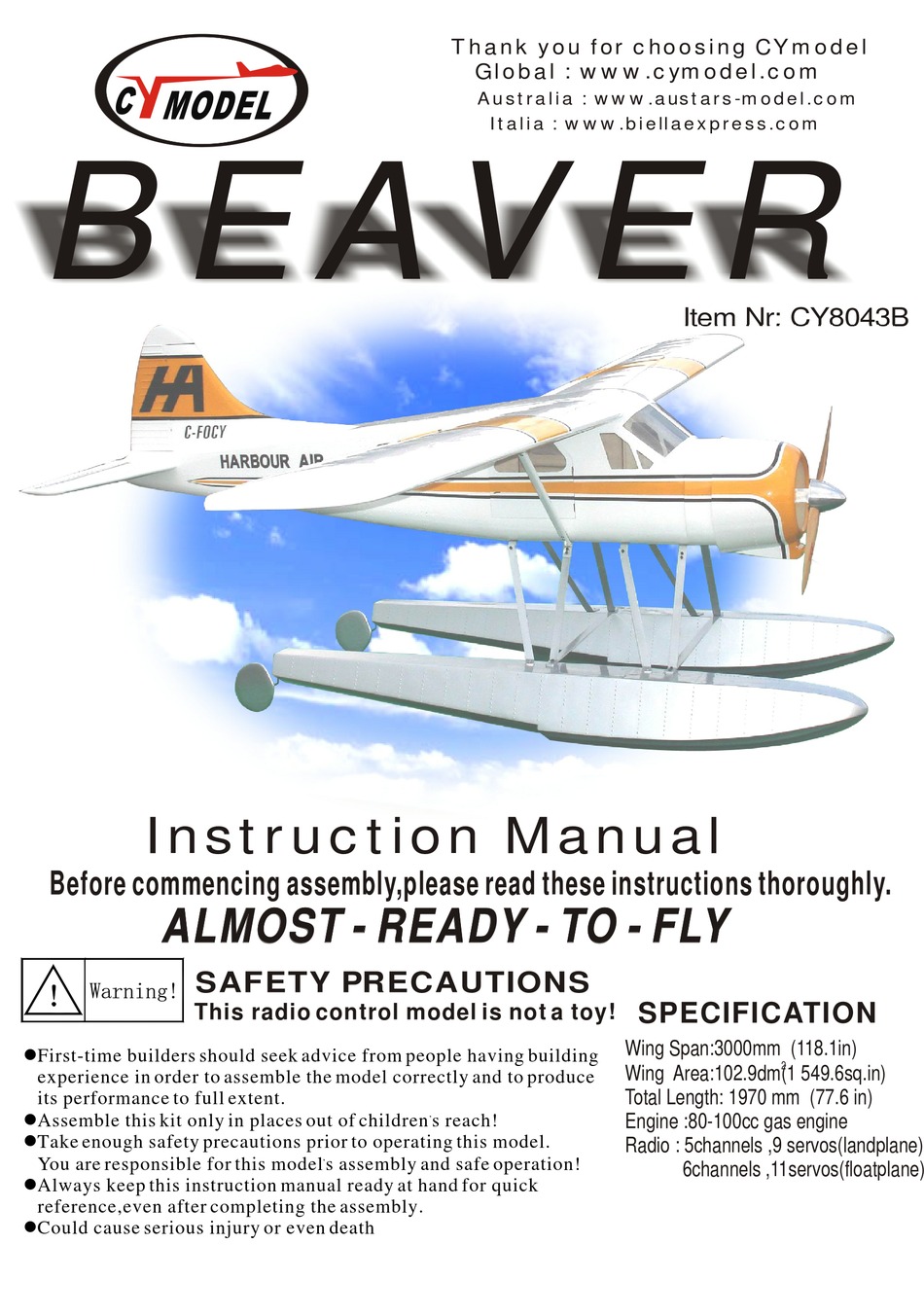

BEAVER
Instruction Manual
Before commencing assembly,please read these instructions thoroughly.
ALMOST - READY - TO - FLY
ALMOST - READY - TO - FLY
SAFETY PRECAUTIONS
This radio control model is not a toy!
lFirst-time builders should seek advice from people having building
experience in order to assemble the model correctly and to produce
its performance to full extent.
lAssemble this kit only in places out of children s reach!
lTake enough safety precautions prior to operating this model.
You are responsible for this model s assembly and safe operation!
lAlways keep this instruction manual ready at hand for quick
reference,even after completing the assembly.
lCould cause serious injury or even death
Thank you for choosing CYmodel
Global : www.cymodel.com
Australia : www.austars-model.com
Italia : www.biellaexpress.com
,
,
Item Nr: CY8043B
SPECIFICATION
Wing Span:3000mm (118.1in)
2
Wing Area:102.9dm(1 549.6sq.in)
Total Length: 1970 mm (77.6 in)
Engine :80-100cc gas engine
Radio : 5channels ,9 servos(landplane)
6channels ,11servos(floatplane)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CYmodel BEAVER CY8043B
Summary of Contents for CYmodel BEAVER CY8043B
-
Page 1: Instruction Manual
Thank you for choosing CYmodel Global : www.cymodel.com Australia : www.austars-model.com Italia : www.biellaexpress.com BEAVER Item Nr: CY8043B Instruction Manual Before commencing assembly,please read these instructions thoroughly. ALMOST - READY - TO - FLY ALMOST - READY - TO - FLY... -
Page 2: Before You Begin
REQUIRED FOR OPERATION (Purchase separately) REQUIRED FOR OPERATION (Purchase separately) A minimum 5channel radio for airplanes (with 9servos). Silicone Tube Fuel Filter And dry batteries. CAUTION: Only use a minimum 5channel radio for Glow engine fuel only. airplanes! (No other radio may be used!) Required for engine starting A minimum 5 channel WARNING: Normal gasoline cannot... -
Page 3: Top View
Accessory list for this page. Install the servo of aileron and flap Horn Horn 3X10mm Screw - - - - - - 4 - - - - - - 4 - - - - - - 4 - - - - - - 4 Rod adjuster - - - - - - 4 3X14mm... -
Page 4: Install The Tail Wheel
Accessory list for this page. Install the tail wheel Hinge 4X20mm Screw - - - - - - 3 - - - - - - 2 3.2mm Rocker 4mm washer - - - 1 - - - - - - 2 3X3mm Screw 3.2mm Nylon Collar - - - - - - 4... - Page 5 Accessory list for this page. Install the rod of elevator 2.5X100 rod 2.5X310 rod - - - - - 2 - - - - - 2 Horn 2.3X10mm Tp screw 4X35mm screw - - - - - - 2 5X3X870 carbon rod - - - - - - 4 - - - - - - 2 - - - - - - 2...
-
Page 6: Install The Engine
Accessory list for this page. Install the engine 5X55mm screw 5X25mm screw - - - - 2 - - - - 4 5mm Bind nut 5mm Lock nut - - - - - - - - 4 - - - - - - - - 4 5mm Washer 3X20mm Tp screw - - - - - - - - 8... -
Page 7: Radio Equipment
Accessory list for this page. Radio Equipment Linkage Stopper 1.8X450mm Rod - - - - - - 1 - - - - 1 3X3mm Screw - - - - - - 1 - - - - 1 3mm Washer - - - - - - 5 6mm Plywood Battery Battery... -
Page 8: Install The Canopy
Accessory list for this page. Install the door and windows Hard wood 2.3X8mm Tp screw - - - - - 4 - - - - - - 8 Balsa Fasten - - - - - 2 - - - - - 2 2.3X10mm Tp screw - - - - - - 4 Loose-leaf... - Page 9 Accessory list for this page. Install the servo of float 4X25mm screw 3.2mm Nylon Collar 3.5X50 mm Pvc tube - - - - 16 - - - - 4 - - - - - - 2 4mm Bind nut 3.2mm Collar Rod adjuster - - - - - - - - 8 - - - - 4...
- Page 10 Adjustment. Adjustment Adjust the travel of each control surface to the Adjust the travel of each control surface to the values in the diagrams. values in the diagrams. These values fit general flight capabilities. These values fit general flight capabilities. Readjust according to your needs and flight level.
