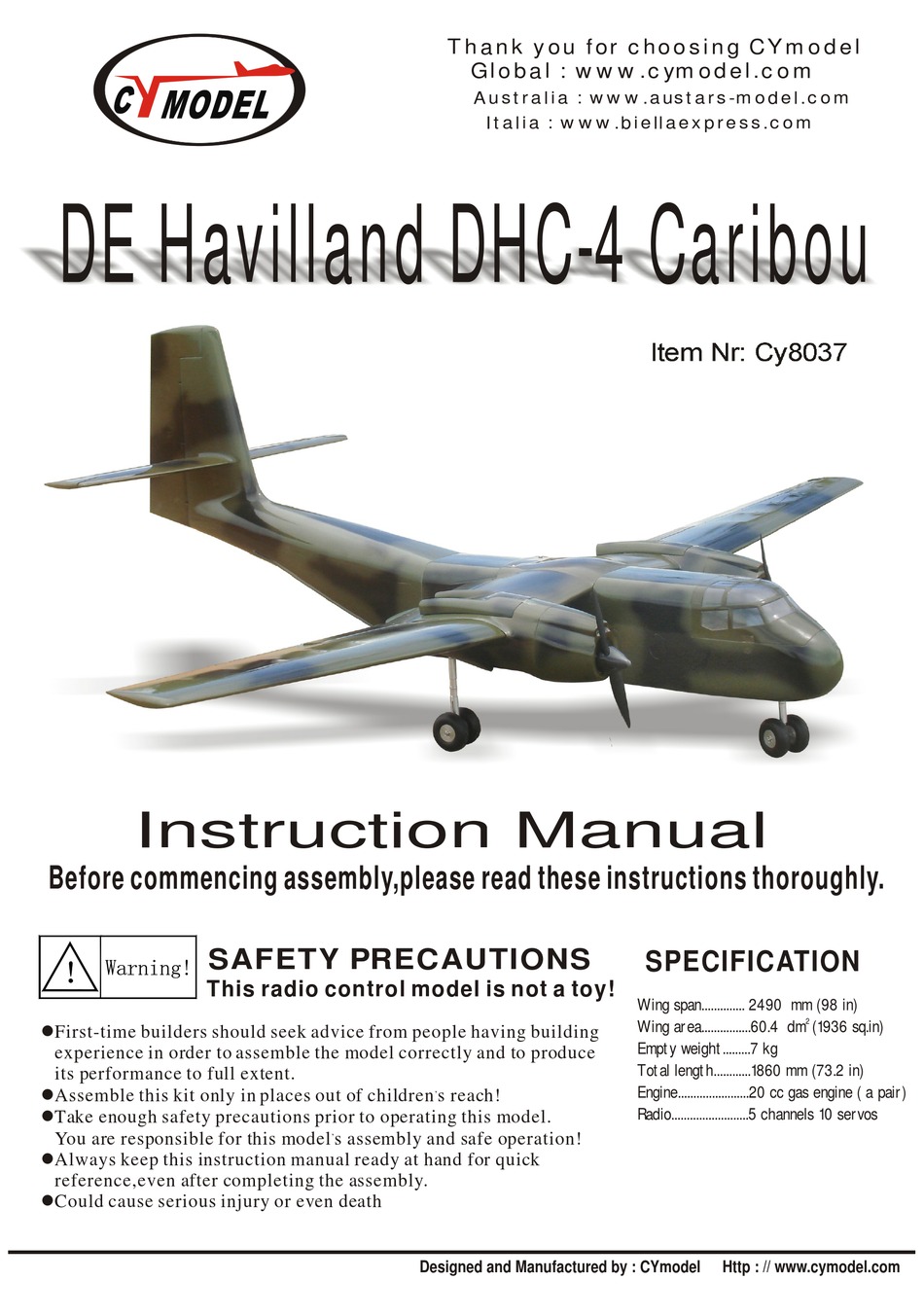

DE Havilland DHC-4 Caribou
Instruction Manual
Before commencing assembly,please read these instructions thoroughly.
SAFETY PRECAUTIONS
This radio control model is not a toy!
lFirst-time builders should seek advice from people having building
experience in order to assemble the model correctly and to produce
its performance to full extent.
lAssemble this kit only in places out of children s reach!
lTake enough safety precautions prior to operating this model.
You are responsible for this model s assembly and safe operation!
lAlways keep this instruction manual ready at hand for quick
reference,even after completing the assembly.
lCould cause serious injury or even death
Thank you for choosing CYmodel
Global : www.cymodel.com
Australia : www.austars-model.com
Italia : www.biellaexpress.com
,
,
Designed and Manufactured by : CYmodel
Item Nr: Cy8037
SPECIFICATION
Wing span.............. 2490 mm (98 in)
2
Wing area................60.4 dm (1936 sq.in)
Empty weight.........7 kg
Total length............1860 mm (73.2 in)
Engine.......................20 cc gas engine ( a pair)
Radio.........................5 channels 10 servos
Http : // www.cymodel.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the DE Havilland DHC-4 Caribou and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYmodel DE Havilland DHC-4 Caribou

  • Page 1 You are responsible for this model s assembly and safe operation! lAlways keep this instruction manual ready at hand for quick reference,even after completing the assembly. lCould cause serious injury or even death Designed and Manufactured by : CYmodel Http : // www.cymodel.com...
  • Page 2: Before You Begin

    REQUIRED FOR OPERATION (Purchase separately) REQUIRED FOR OPERATION (Purchase separately) A minimum 5 channel radio for airplanes (with 10 servos). Silicone Tube Fuel Filter And dry batteries. CAUTION: Only use a minimum 5 channel radio for Glow engine fuel only. airplanes! (No other radio may be used!) required for engine starting A minimum 5 channel...
  • Page 3: Install The Aileron Servo

    Accessory list for this page. Install the aileron servo Pin hings 2X28mm Screw - - -14 - - - - - 12 - - - - - - 4 2X10mm Screw - - - - - - - 4 Horn - - - - - - - 4 1.8X65mm Rod - - - - - - 2...
  • Page 4 Epoxy the main wing to the mid Accessory list for this page. through the main joiner Horn - - - - - - 2 - - - - - - - 2 3X18mm screw 2X10mm Screw Connecting rod head - - - - - - 8 - - - - - - 2 Cap screw - - - - 2...
  • Page 5 Drill holes in the wings and set the wood Accessory list for this page. dowel in them as below Nylon dowel - - - - 2 M5X25 mm Screw 5mm Washer - - - - 4 - - - - - 2 Nylon dowel 5mm Blind Nut - - - - 2...
  • Page 6 Accessory list for this page. Glue the elevator to the stabilizer by A/B and epoxy Pin hings - -6 U-style wire - - - - 1 Pin hings - - 9 Wooden Block - - - - 2 Install the U-style wire to appropriate position in the tial of fuselage Assemble the servos and switch in the fuselage and assemble the stabilizer to fuselage as illustration Pin hings...
  • Page 7 Assemble the wheel to landing gear and Accessory list for this page. epoxy the landing gear to the wing steadily M3X20mm Screw - - - - 2 3X18mm screw 3mm Washer - - - - - - 4 - - - - 2 Cap screw - - - 2 2.6 X 8mm Tp screw...
  • Page 8 Accessory list for this page. Mount fuel tank to the wing Nylon dowel - - - - 4 Assembly of the engine Assembly of the cover with dowel Nylon dowel - - - - 4 Template - - - - 1 Assembly of the cover with secrw Assembly of the full tank After confirming the...
  • Page 9 Cut away the surplus parts of canopy Accessory list for this page. carefully along the shaded line 2.6 X 12mm Tp screw - - - - - - 9 2.6 X 8mm Tp screw - - - - - - 8 15x15x75mm wood - - - 1 2.6 X 8mm Tp screw...
  • Page 10 Adjustment. Adjustment Adjust the travel of each control surface to the Adjust the travel of each control surface to the values in the diagrams. values in the diagrams. These values fit general flight capabilities. These values fit general flight capabilities. Readjust according to your needs and flight level.
