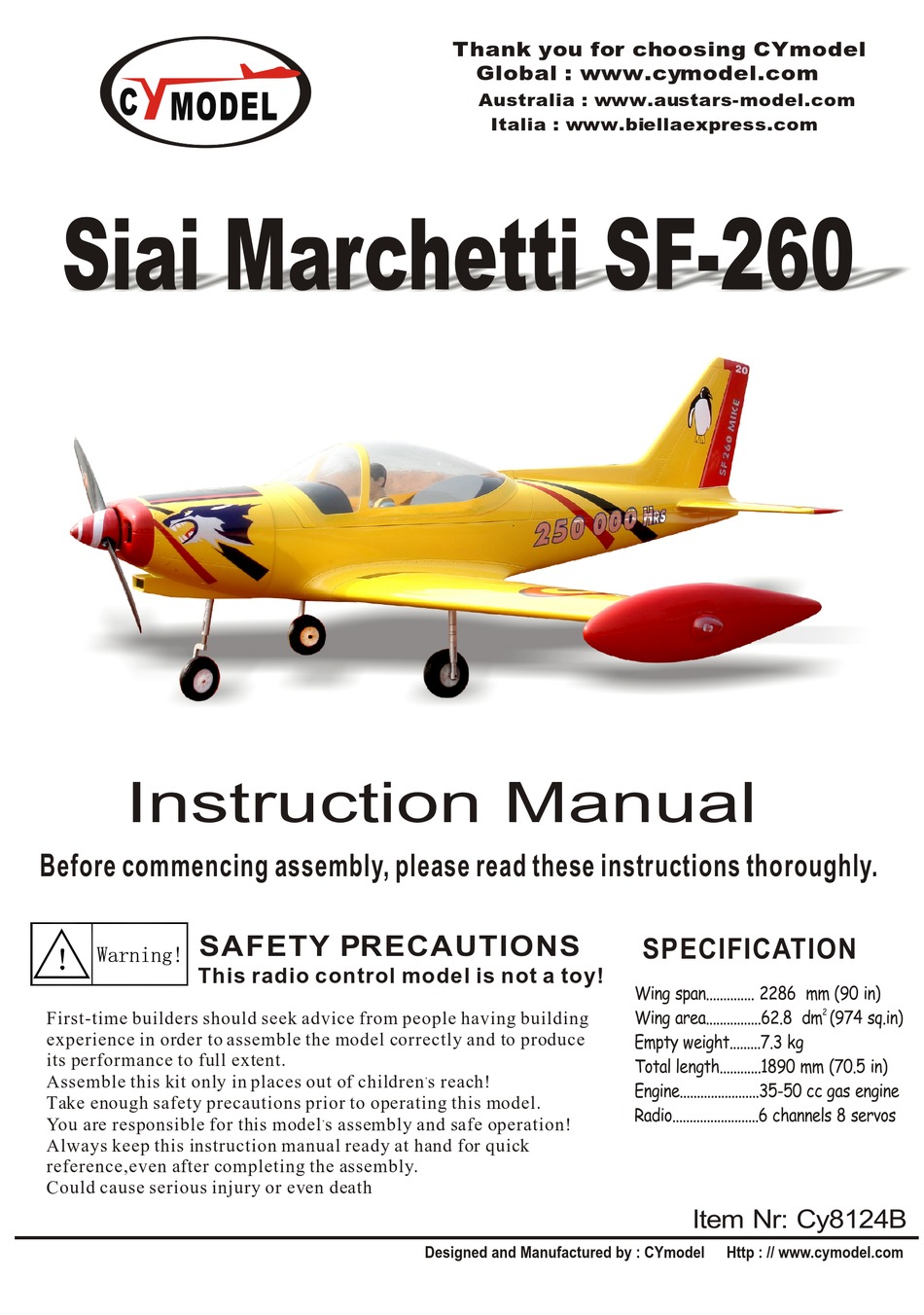

Siai Marchetti SF-260
Instruction Manual
Before commencing assembly, please read these instructions thoroughly.
SAFETY PRECAUTIONS
This radio control model is not a toy!
lFirst-time builders should seek advice from people having building
experience in order to assemble the model correctly and to produce
its performance to full extent.
lAssemble this kit only in places out of children s reach!
lTake enough safety precautions prior to operating this model.
You are responsible for this model s assembly and safe operation!
lAlways keep this instruction manual ready at hand for quick
reference,even after completing the assembly.
lCould cause serious injury or even death
Thank you for choosing CYmodel
Global : www.cymodel.com
Australia : www.austars-model.com
Italia : www.biellaexpress.com
,
,
Designed and Manufactured by : CYmodel
SPECIFICATION
Wing span.............. 2286 mm (90 in)
Wing area................62.8 dm (974 sq.in)
Empty weight.........7.3 kg
Total length............1890 mm (70.5 in)
Engine.......................35-50 cc gas engine
Radio.........................6 channels 8 servos
Item Nr: Cy8124B
Http : // www.cymodel.com
2
Advertisement
Table of Contents
Related Manuals for CYmodel Siai Marchetti SF-260
Summary of Contents for CYmodel Siai Marchetti SF-260
-
Page 1: Instruction Manual
You are responsible for this model s assembly and safe operation! lAlways keep this instruction manual ready at hand for quick reference,even after completing the assembly. lCould cause serious injury or even death Item Nr: Cy8124B Designed and Manufactured by : CYmodel Http : // www.cymodel.com... -
Page 2: Before You Begin
REQUIRED FOR OPERATION (Purchase separately) REQUIRED FOR OPERATION (Purchase separately) A minimum 6 channel radio for airplanes (with 8 servos). Silicone Tube Fuel Filter And dry batteries. CAUTION: Only use a minimum 6 channel radio for engine fuel airplanes! (No other radio may be used!) required for engine starting A minimum 6 channel WARNING: Normal gasoline cannot... - Page 3 Install the lamp-chimney Accessory list for this page. Hinge - - -10 Epoxy pin hings to aileron steadily Install the lamp-chimney Warning! £¡ Securely glue together ,if coming off during . You will lose control of your airplane which leads to accidents! Hinge - - -1 0 Install the lamp-chimney...
-
Page 4: Install The Aileron Servo
Accessory list for this page. Install the main landing gear M4X35mm Screw M4X20mm screw 3X16mm Tp screw - - - - 4 - - 2 - - - - - - 8 Rod adjuster M4X20mm screw M4X20mm screw - - - - 8 M3X10mm Screw - - 2... -
Page 5: Install The Rudder
Accessory list for this page. Assemble the wings to the fuselage 3X20mm Tp screw Pin hings ---3 - - - - - 4 Nylon nut 5 mm Washer - - - - - - 1 Hinge M4 Lock Nut - - - 6 - - - - - - 1 Nylon nut Assemble the front-wheel drive to the fuselage... - Page 6 Secure the servo. Install the nylon control horn Accessory list for this page. and connect the linkage Horn Rod adjuster -------4 -------8 M2X8mm cap screw -------2 -------6 Aluminum tube (3x6mm) M4X35mm screw -------1 Steel wire M2x8mm cap screw M3x20mm Screw Copper joiner Connecting rod head ----------4...
- Page 7 Accessory list for this page. Assemble the cowling to fuselage with screw 1.8x450mm Throttle rod Nut ( 2mm ) Cap screw m3x16 Washer Linkage Stopper Set screw ( 3x4mm) Rubber gasket plywood (6mm) Bland nut (3mm) M3X16mm Cap Screw ---------7 Washer M3X16mm Cap Screw...
- Page 8 Accessory list for this page. Epoxy the wheel wells to the holes If you choose an air retractable landing gear, the installing method is as steps 26 to 30. Epoxy the wheel wells to the holes Assemble the front-wheel drive Three wheel retract system Assemble of the landing gear Strut...
-
Page 9: Centre Of Gravity
Adjustment. Adjustment. Adjust the travel of each control surface to the Adjust the travel of each control surface to the values in the diagrams. values in the diagrams. These values fit general flight capabilities. These values fit general flight capabilities. Readjust according to your needs and flight level.
