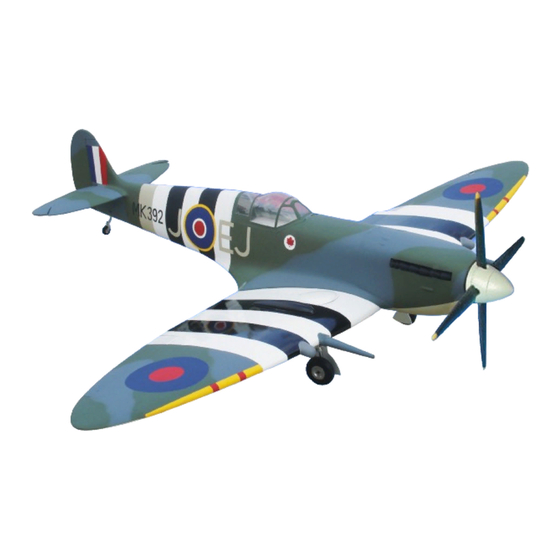

Spitfire MK IX

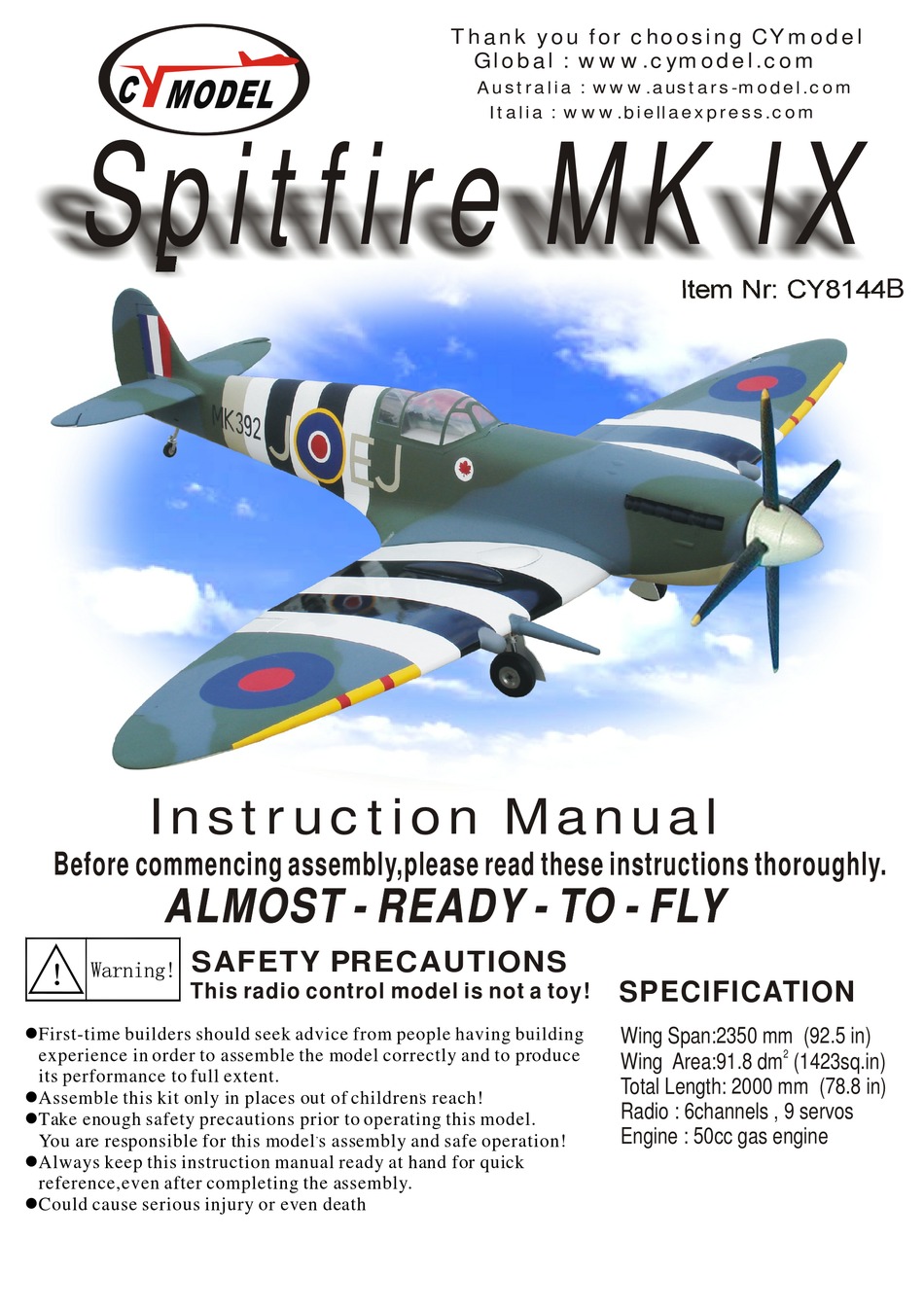

Instruction Manual
Before commencing assembly,please read these instructions thoroughly.
ALMOST - READY - TO - FLY
ALMOST - READY - TO - FLY
SAFETY PRECAUTIONS
This radio control model is not a toy!
lFirst-time builders should seek advice from people having building
experience in order to assemble the model correctly and to produce
its performance to full extent.
lAssemble this kit only in places out of childrens reach!
lTake enough safety precautions prior to operating this model.
You are responsible for this model s assembly and safe operation!
lAlways keep this instruction manual ready at hand for quick
reference,even after completing the assembly.
lCould cause serious injury or even death
Thank you for choosing CYmodel
Global : www.cymodel.com
Australia : www.austars-model.com
,
,
Italia : www.biellaexpress.com
SPECIFICATION
Wing Span:2350 mm (92.5 in)
Wing Area:91.8 dm (1423sq.in)
Total Length: 2000 mm (78.8 in)
Radio : 6channels , 9 servos
Engine : 50cc gas engine
Item Nr: CY8144B
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Spitfire MK IX and is the answer not in the manual?

Questions and answers

Related Manuals for CYmodel Spitfire MK IX

Summary of Contents for CYmodel Spitfire MK IX

  • Page 1 Thank you for choosing CYmodel Global : www.cymodel.com Australia : www.austars-model.com Italia : www.biellaexpress.com Spitfire MK IX Item Nr: CY8144B Instruction Manual Before commencing assembly,please read these instructions thoroughly. ALMOST - READY - TO - FLY ALMOST - READY - TO - FLY...

  • Page 2: Before You Begin

    REQUIRED FOR OPERATION (Purchase separately) REQUIRED FOR OPERATION (Purchase separately) REQUIRED FOR OPERATION (Purchase separately) REQUIRED FOR OPERATION (Purchase separately) A minimum 6channel radio for airplanes (with 9servos). B B B B Glue And dry batteries. CAUTION: Only use a minimum 6channel radio for Epoxy Glue Instant glue airplanes! (No other radio may be used!)
  • Page 3 Accessory list for this page. Install the servo 3mm Lock nut 3X16 Screw 2.5X85mm rod Rod adjuster Rod adjuster HORN 2.6X12mm Tp Screw Hinge Hinge Install the aileron and flap Install the servo of aileron Aileron Flap Servo line 3mm Lock nut 3X16 Screw 2.5X85mm rod Make sure hinges are...
  • Page 4 Accessory list for this page. Install the main landing gear Rod adjuster 4mm Lock nut - - - - - 1 - - - - - 2 2X8mm screw 3X20mm Tp screw - - - - - 1 - - - - - 8 Retainer - - - - - 1 Ply wood...

  • Page 5: Install The Elevator Servos

    Accessory list for this page. Install the elevator servos 3mm Lock nut 3X16 Screw 2.5X85mm rod Rod adjuster Rod adjuster HORN Hinge Install the elevator Install the elevator servos Servo line 3mm Lock nut 3X16 Screw 2.5X85mm rod Rod adjuster Rod adjuster Hinge make sure hinges are...
  • Page 6 Accessory list for this page. Install the servo of rudder&tail wheel 6mm nut 3.2mm Nylon Collar 6mm nut 6X9 screw 3.2mm Collar Aluminium tube 3X3mm Screw M3X20 Tp screw 6X9 screw Steel wire 3.2mm Rocker M3X20 Tp screw HORN 3.2mm Rocker Rod adjuster 3.2mm Nylon Collar Rod adjuster...

  • Page 7: Install The Throttle Servo

    Accessory list for this page. Main wing&Horizontal/Vertical tail 4X20mm screw 8X40mm Carbon tube - - - - 2 - - - - - 2 5X30mm screw 4mm Washer - - - - 4 - - - - - - - - 2 Linkage Stopper 1.8X200mm Rod - - - - - - 1...

  • Page 8: Radio Equipment

    Accessory list for this page. Install the thr cowling 3X16mm screw - - - - - 6 3X16mm screw 3mm Bind nut 3mm rubber band - - - - - 6 - - - - - 6 - - - - 6 3mm Washer 3mm Bind nut - - - - - 6...
  • Page 9 Accessory list for this page. Install the canopy Install the canopy Install the canopy Battery Battery Blcak line Blcak line 1.5V 1.5V 1.5V 1.5V Red line Red line Install the canopy...
  • Page 10 Adjustment. Adjustment Adjust the travel of each control surface to the Adjust the travel of each control surface to the values in the diagrams. values in the diagrams. These values fit general flight capabilities. These values fit general flight capabilities. Readjust according to your needs and flight level.
