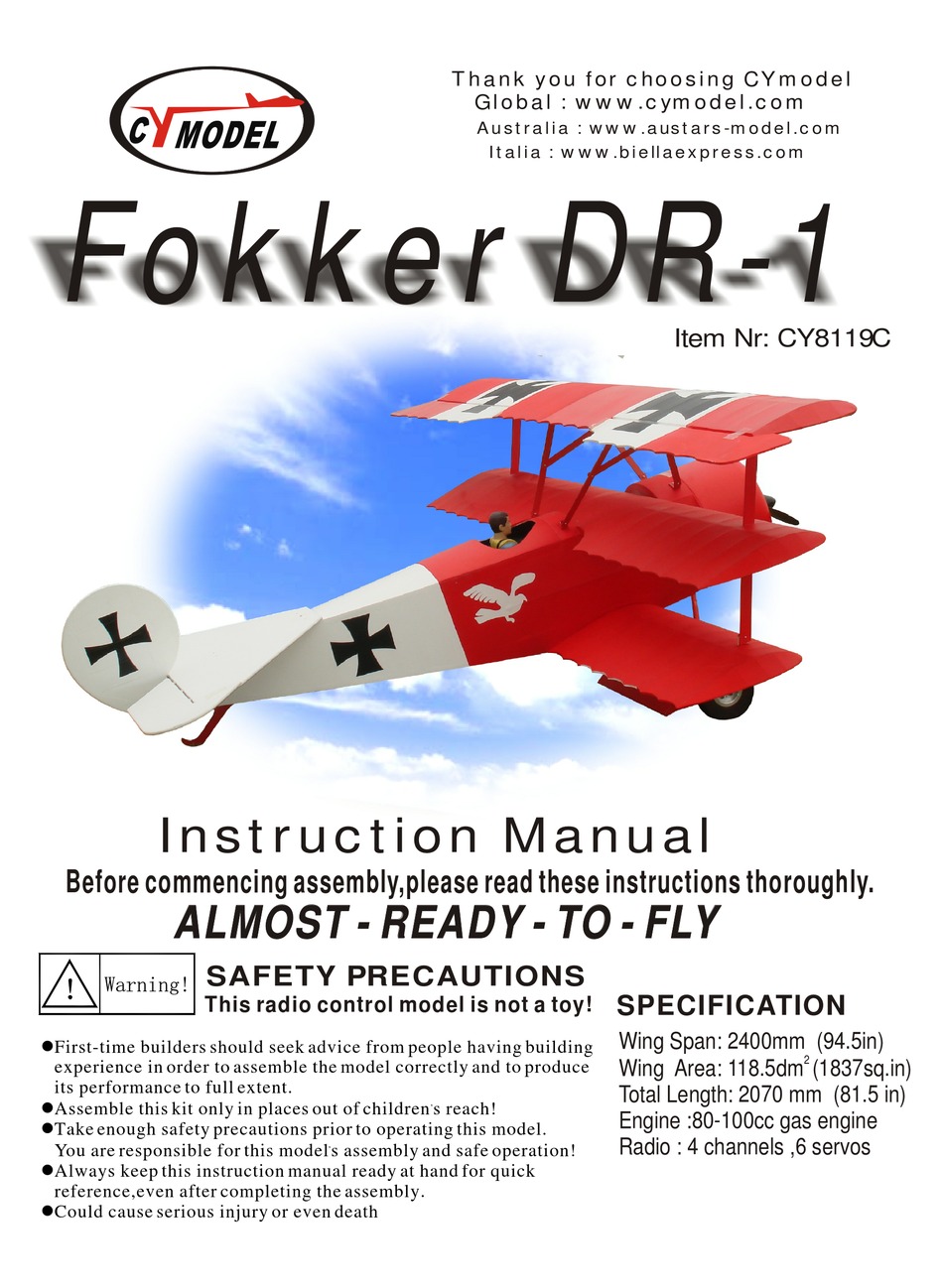

CYmodel fokker DR-1 Instruction Manual

Almost ready to fly

Advertisement

Fokker DR-1

Instruction Manual

Before commencing assembly,please read these instructions thoroughly.
ALMOST - READY - TO - FLY
ALMOST - READY - TO - FLY

SAFETY PRECAUTIONS

This radio control model is not a toy!
lFirst-time builders should seek advice from people having building
experience in order to assemble the model correctly and to produce
its performance to full extent.
lAssemble this kit only in places out of children s reach!
lTake enough safety precautions prior to operating this model.
You are responsible for this model s assembly and safe operation!
lAlways keep this instruction manual ready at hand for quick
reference,even after completing the assembly.
lCould cause serious injury or even death
Thank you for choosing CYmodel
Global : www.cymodel.com
Australia : www.austars-model.com
Italia : www.biellaexpress.com
,
,
Item Nr: CY8119C
SPECIFICATION
Wing Span: 2400mm (94.5in)
Wing Area: 118.5dm (1837sq.in)
Total Length: 2070 mm (81.5 in)
Engine :80-100cc gas engine
Radio : 4 channels ,6 servos
