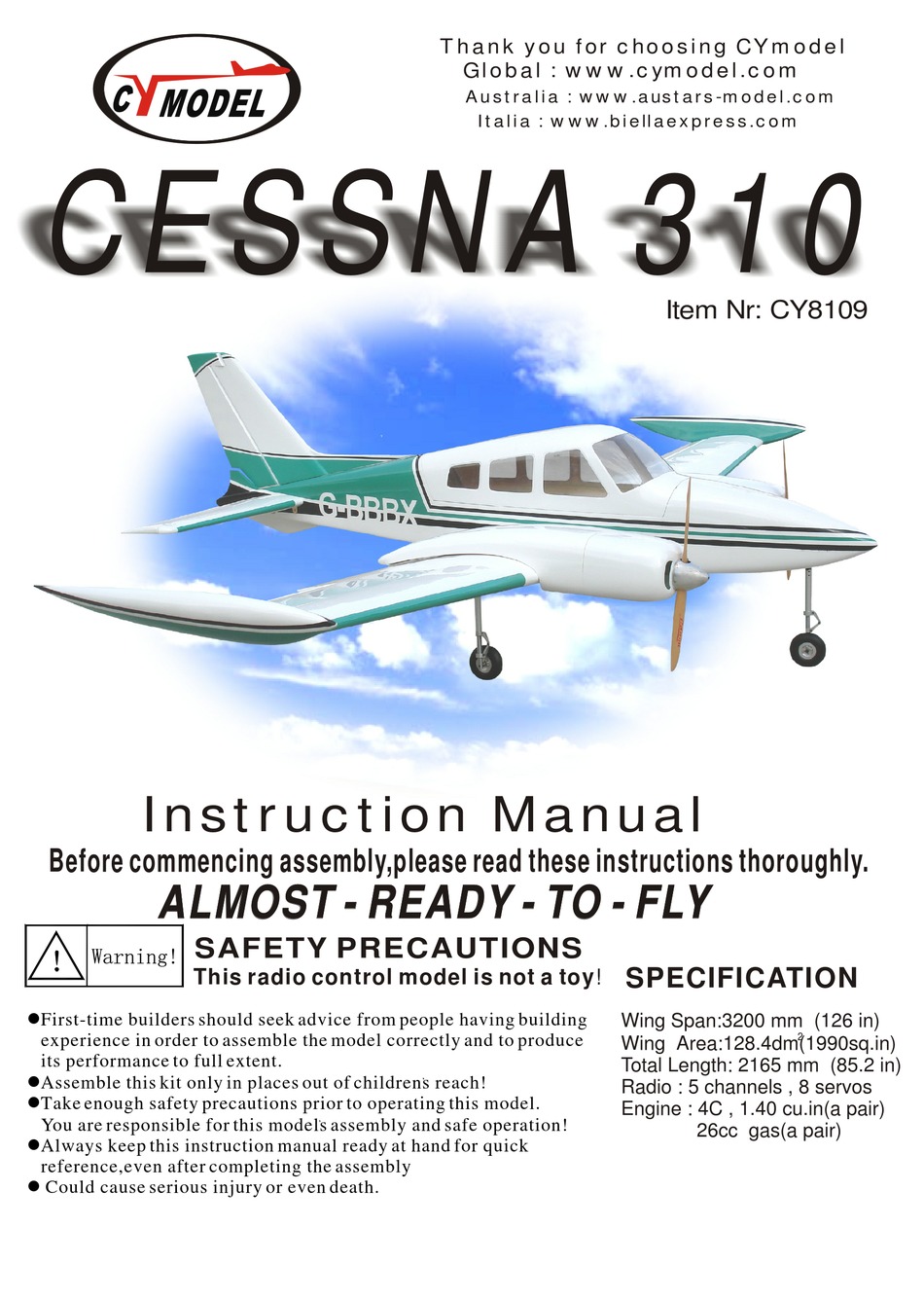

CESSNA 310

Instruction Manual

Before commencing assembly,please read these instructions thoroughly.
ALMOST - READY - TO - FLY
ALMOST - READY - TO - FLY

SAFETY PRECAUTIONS

This radio control model is not a toy!
lFirst-time builders should seek advice from people having building
experience in order to assemble the model correctly and to produce
its performance to full extent.
lAssemble this kit only in places out of childrens reach!
lTake enough safety precautions prior to operating this model.
You are responsible for this models assembly and safe operation!
lAlways keep this instruction manual ready at hand for quick
reference,even after completing the assembly
l Could cause serious injury or even death.
Thank you for choosing CYmodel
Global : www.cymodel.com
Australia : www.austars-model.com
Italia : www.biellaexpress.com
,
,
Item Nr: CY8109
SPECIFICATION
Wing Span:3200 mm (126 in)
Wing Area:128.4dm(1990sq.in)
Total Length: 2165 mm (85.2 in)
Radio : 5 channels , 8 servos
Engine : 4C , 1.40 cu.in(a pair)
26cc gas(a pair)
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CY8109 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYmodel CY8109

Summary of Contents for CYmodel CY8109

  • Page 1: Instruction Manual

    Thank you for choosing CYmodel Global : www.cymodel.com Australia : www.austars-model.com Italia : www.biellaexpress.com CESSNA 310 Item Nr: CY8109 Instruction Manual Before commencing assembly,please read these instructions thoroughly. ALMOST - READY - TO - FLY ALMOST - READY - TO - FLY...

  • Page 2: Before You Begin

    REQUIRED FOR OPERATION (Purchase separately) REQUIRED FOR OPERATION (Purchase separately) REQUIRED FOR OPERATION (Purchase separately) REQUIRED FOR OPERATION (Purchase separately) A minimum 5channel radio for airplanes (with 8servos). B B B B Glue And dry batteries. CAUTION: Only use a minimum 5channel radio for Epoxy Glue Instant glue airplanes! (No other radio may be used!)

  • Page 3: Install The Aileron Servo

    Accessory list for this page. Install the aileron servo The servo must be purchase separately! 2.5X100 mm Rod 2.5X45 mm Rod It must be 90 size - - - - 2 - - - - 2 Horn 3X40mm Screw - - - - - - 6 - - - - 4 2.3X10mm Tp Screw Horn...
  • Page 4 Accessory list for this page. Assembly of the fuel tank After confirming the position(see front of 5mm Washer 8mm nylon Nut fuel tank). - - - - - - 4 - - - - - 4 Insert and tighten the screw. Linkage Stopper 5X55mm Screw...

  • Page 5: Install The Main Landing Gear

    Accessory list for this page. Install the nose landing gear. 5X40mm Axletree 5X45mm Axletree This door can open - - - 1 - - - 2 8mm tube 3X25mm Tp Screw - - - - - - 4 5X40mm Axletree - - - - - - 12 750mm steel wire - - - - - 1...

  • Page 6: Install The Rudder

    Accessory list for this page. Horizontal&Vertical tail. 2.5X100 mm Rod Hinge 2X10mm Screw - - - - 2 - - - - - - - - - - 8 3X20mm Screw 8mm tube - - - - - 4 - - - - - - 8 - - - - Horn Tuble:12X150mm -----1...
  • Page 7 Accessory list for this page. Assemble the canopy 2.3X10 Tp screw - - - - - 4 2.6X12 Tp screw - - - - - 12 21 21 24 24 Install the cover Assemble the canopy 2.3X10 Tp screw - - - - 4 25 25 Assemble the cowl Radio Equipment...
  • Page 8 Adjustment Adjustment. Adjust the travel of each control surface to the Adjust the travel of each control surface to the values in the diagrams. values in the diagrams. These values fit general flight capabilities. These values fit general flight capabilities. Readjust according to your needs and flight level.

This manual is also suitable for:

Cessna 310

Table of Contents
