28
Installation
Cable extension
The RPM sensor is delivered without a connection cable. You can use
a standard coaxial cable (RG 58) to connect the sensor. A suitable
cable socket is available as an accessory (VIB 6.621).
If the cable to the MUX is not long enough, the same type of co-
axial cable (RG 58) can be used as an extension. Join the cables with
a TNC/TNC bulkhead connector (e.g. VIB 93036F), which must be
mounted with electrical isolation.

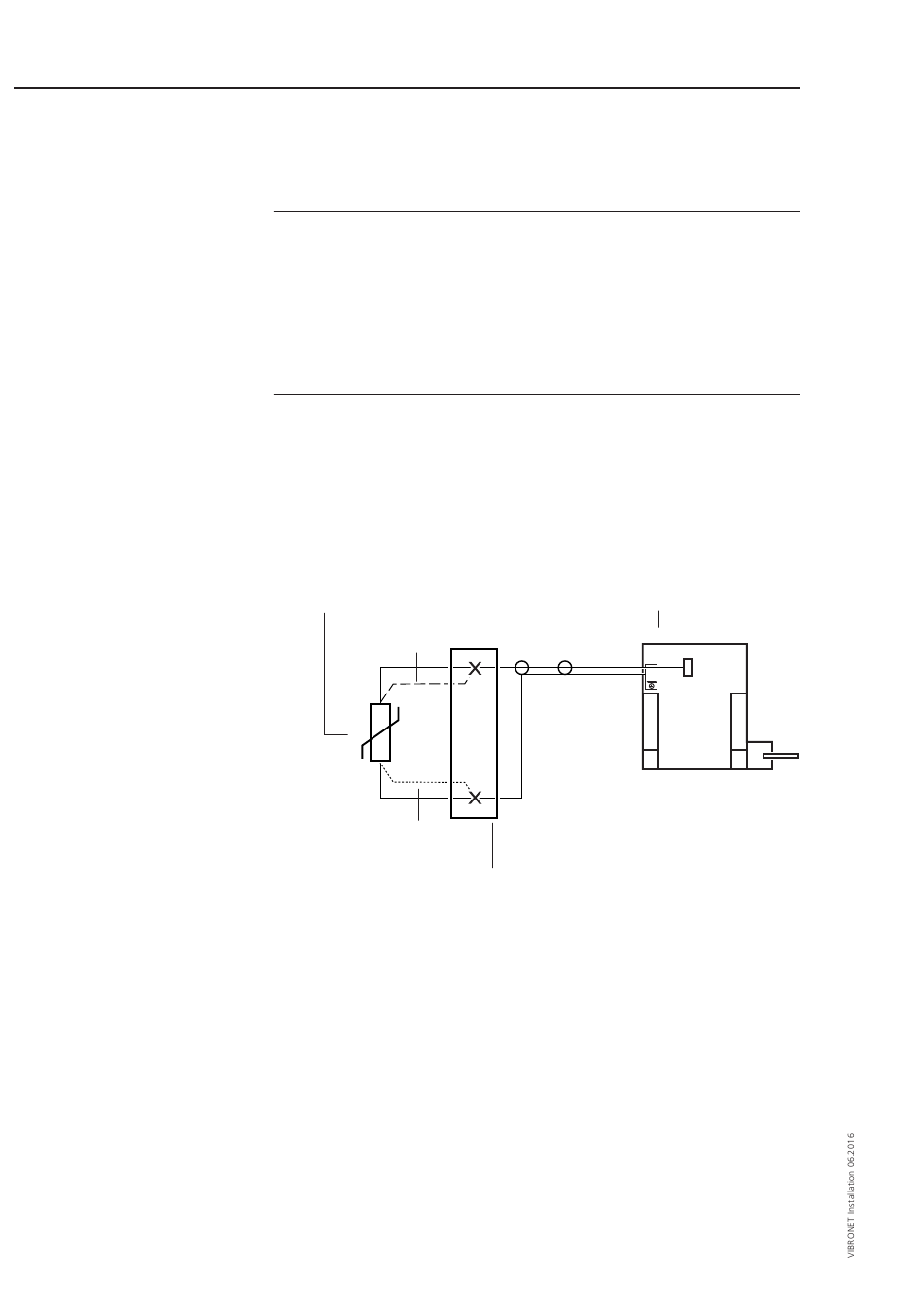

Temperature probe with 3-lead or 4-lead connector

• Connect the temperature probe to an intermediate terminal or to
the junction box (VIB 6.770/9) outside the MUX according to the
below diagram.
• Connect the intermediate terminal or the junction box to the tem-
perature module (VIB 8.310) in the multiplexer with a coaxial
cable.
Temperature probe
4-lead
3- and 4-lead
Temperature module in the MUX
Terminal or junction box for coaxial
sensor cable (VIB 6.770/9)
