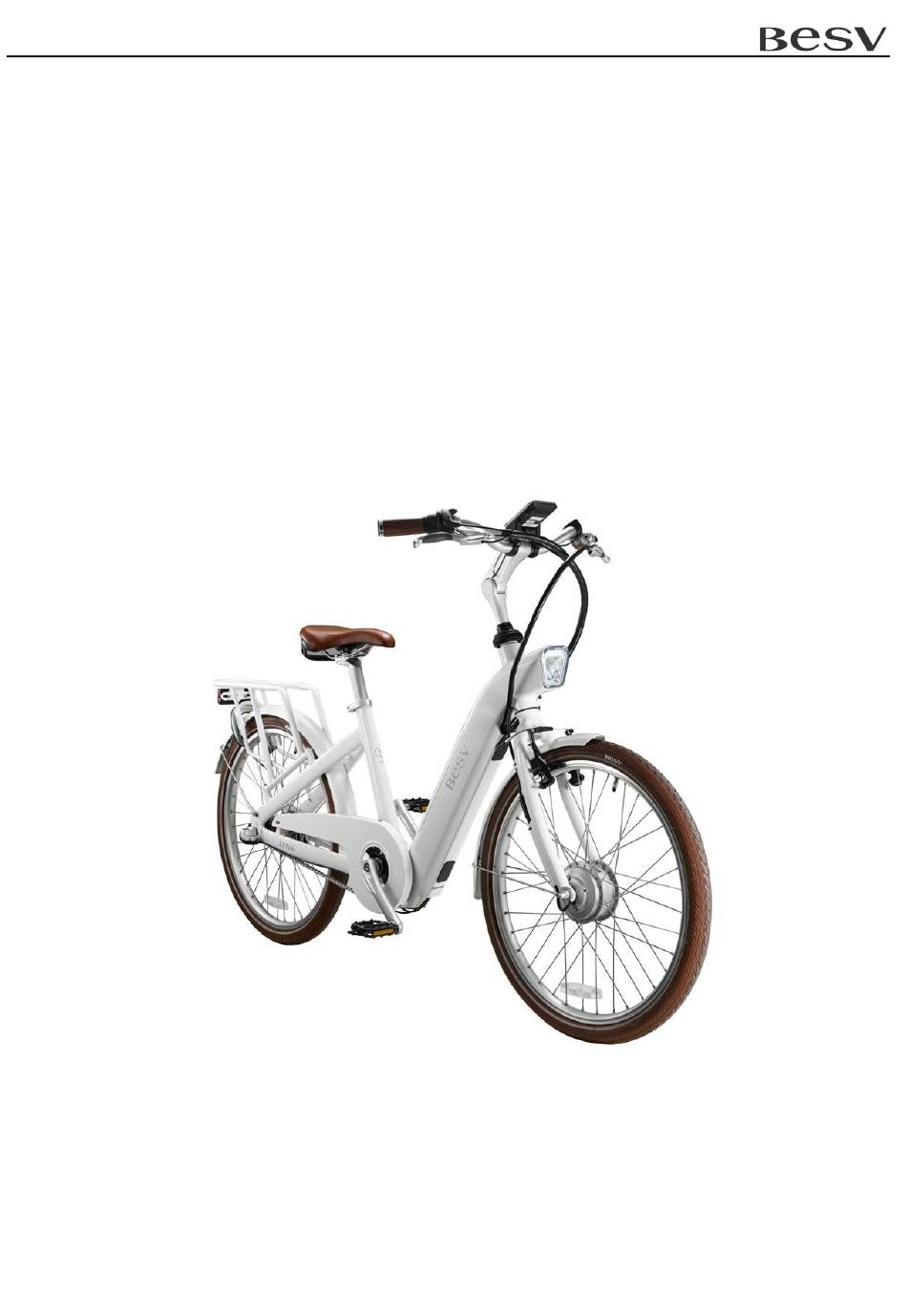

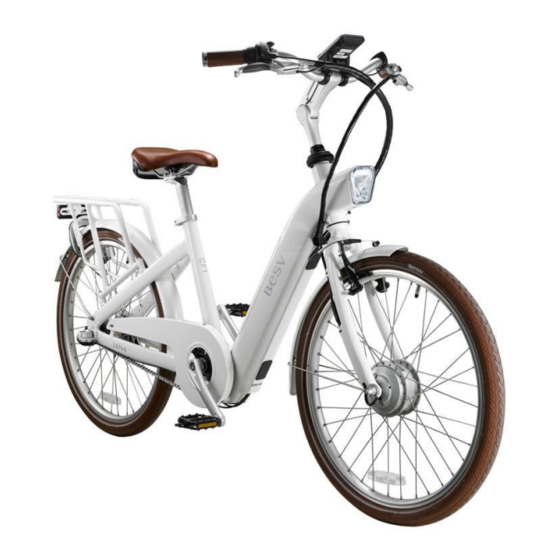

- Page 1 Quick Assembly Guide - BESV CF1 LENA Quick Assembly Guide BESV CF1 LENA...
-
Page 2: Table Of Contents
Quick Assembly Guide - BESV CF1 V. 0.0, 20150513 Contents What’s in the Box ............................2 Main Box Contents ..........................2 Accessary Box Contents ........................2 Battery Box Contents ......................... 2 Assembly Procedures ............................. 3 Front Wheel and Fender ................錯誤! 尚未定義書籤。... -
Page 3: What's In The Box
Quick Assembly Guide - BESV CF1 1. What’s in the Box 1.1 Main Box Contents Main Bike Assembly Accessary Box Battery Pack Box Front Wheel Set and Fender Stay 1.2 Accessory Box Contents 1. User Manual 2. Charger 3. Pedal 4. -
Page 4: Assembly Procedures
Quick Assembly Guide - BESV CF1 2. Assembly Procedures 2.1 Front Wheel and Fender Find the screws and nut in the accessory box Description For assembly the fender, need to find the screw and nut in the accessory box. Assemble the fender and stay... - Page 5 Quick Assembly Guide - BESV CF1 Assemble front fender Description Assemble the fender on the front fork. Please note the fender’s bracket need to assemble behind the fork that show as the photo and don’t tighten it. Assemble left fender stay...
- Page 6 Quick Assembly Guide - BESV CF1 Assemble the front wheel Description Fix the front wheel that show as the photo. The torque is 35~40 Nm. Connect the motor cable Description Inset the motor cable into the fork that show as the photo. And then connect the motor cable.
-
Page 7: Stem And Handlebar
Quick Assembly Guide - BESV CF1 Check the gap and center of the fender Description Need the check the gap between fender and wheel with average gap by visual inspection. And the fender and wheel need to check on the same center. - Page 8 Quick Assembly Guide - BESV CF1 Adjust the stem angle Description Release the screw inside the stem to adjust the angle of stem. And then tighten the screw. Lock the stem Description Closure stem lever. If stem lever is loosen, adjust the screw on the stem, “+”...
-
Page 9: Pedal
Quick Assembly Guide - BESV CF1 2.3 Pedal Assemble left pedal Description Assemble the other one with marking “L” onto the left crank counterclockwise and tighten it. Assemble right pedal Description Assemble the pedal with marking “R” onto the right crank clockwise and tighten it. -
Page 10: Battery
Quick Assembly Guide - BESV CF1 Adjust the saddle Description Release the screws under the seat post and then adjust the angle of saddle. The torque for seat post screw is 8~10Nm. 2.5 Battery Remove Protection cover Description Remove protection cover on the connector of battery. - Page 11 Quick Assembly Guide - BESV CF1 Insert the battery into the frame Description Insert the battery into the frame that show as the photo. Close the battery csver Description After inserted the battery, close the battery cover and make sure...
-
Page 12: Checklist
3.1 Check the tire pressure is normal. 3.2 Check the function of the brakes, derailleur, and chain. 3.3 Check the function of the electric module and the battery power. Please refer to CF1 LENA user manual. Finish BESV CF1 Quick Assembly.
