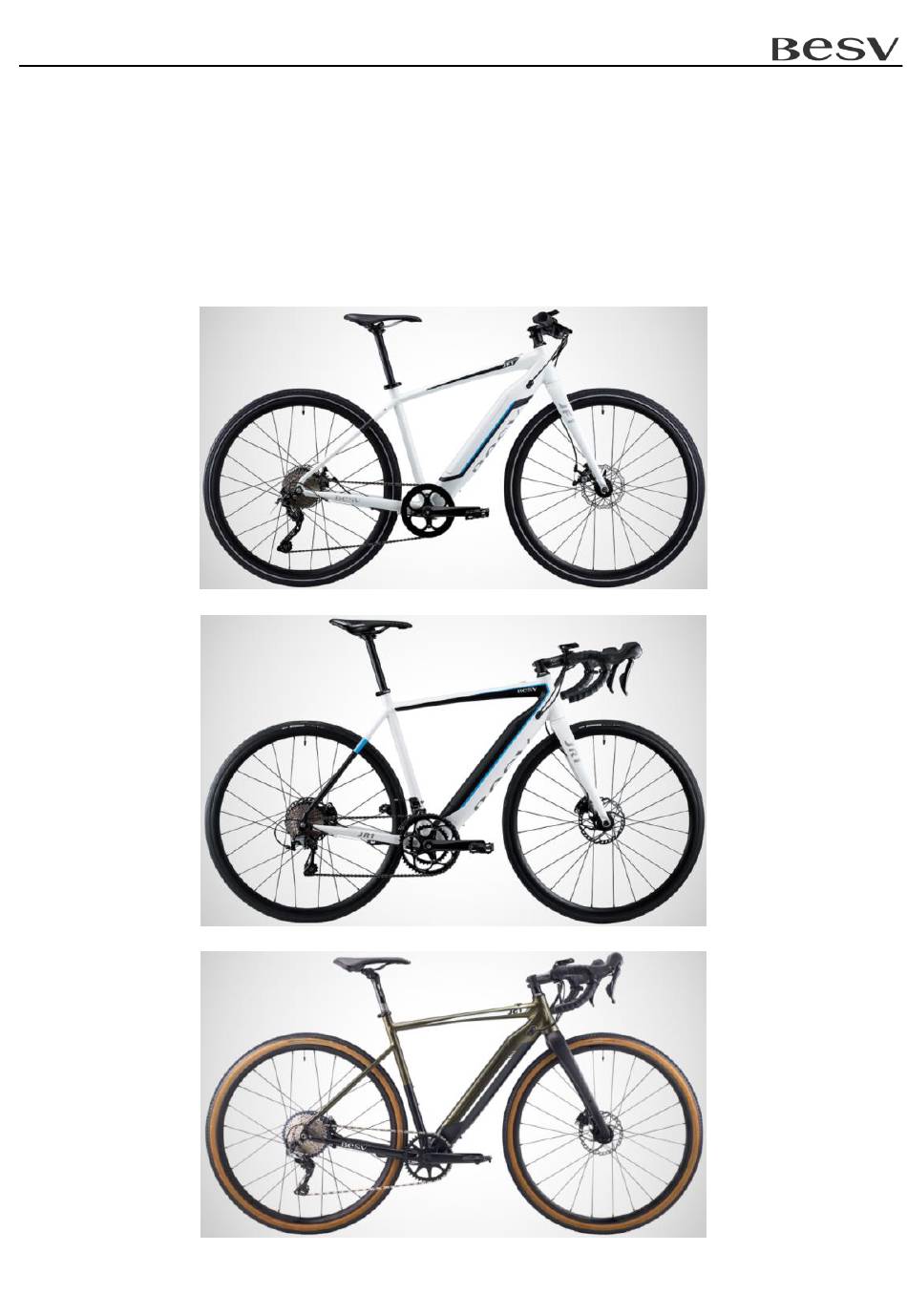

- Page 1 Quick Assembly Guide – JF1 / JR1 / JG1 Quick Assembly Guide For JF1 / JR1 / JG1...
-
Page 2: Table Of Contents
Quick Assembly Guide – JF1 / JR1 / JG1 Table of Contents What’s in the Box ..............................3 Main Box ..............................3 Accessary Box ............................4 Component Assembly and Adjustment ......................6 Stem and Handlebars ..........................6 Front Wheel ............................... 7 Pedals ................................. -
Page 3: What's In The Box
Quick Assembly Guide – JF1 / JR1 / JG1 1. What’s in the Box Main Box The main box includes the following items. • The e-bike JF1 / JR1 / JG1 • Front wheel (to be assembled) • The accessory box... -
Page 4: Accessary Box
Quick Assembly Guide – JF1 / JR1 / JG1 Accessary Box JF1 / JR1 ① ⑧ Warranty Booklet Charger ② ⑨ Signature Card Bell ③ ⑩ Quick Start Guide Rear Reflector ④ ⑪ Information of Rear Derailleur Front Light ⑤... - Page 5 Quick Assembly Guide – JF1 / JR1 / JG1 • For Taiwan (TW): ① ⑧ Bell Cable ② ⑨ Rear Reflector Front Light ③ ⑩ Charger Signature Card ④ ⑪ Reflector tool Warranty Card ⑤ ⑫ Information of Rear Derailleur Quick Start Guide ⑥...
-
Page 6: Component Assembly And Adjustment
Quick Assembly Guide – JF1 / JR1 / JG1 2. Component Assembly and Adjustment Stem and Handlebars Rotate the stem frontwards and tighten the bolts indicated below to 6 Nm as marked on the stem. Adjust the angles of the stem and handlebars and the height properly. Then secure the bolts to the torque value marked to fix the stem. -
Page 7: Front Wheel
Quick Assembly Guide – JF1 / JR1 / JG1 Front Wheel Insert the front wheel into the fork. Install the quick release to the front wheel. a) Grab the lever and spring close to the lever. b) Remove the nut and the other spring. -
Page 8: Pedals
Quick Assembly Guide – JF1 / JR1 / JG1 Pedals Pay attention to the L / R letters marked on the pedals indicating the left / right side. Attach the right pedal marked with “R” to the right crank arm. Use a torque wrench or rotate the pedal clockwise to tighten the pedal. -
Page 9: The Saddle Post And Rear Reflector
Quick Assembly Guide – JF1 / JR1 / JG1 The Saddle Post and Rear Reflector To adjust the saddle height for the JF1, release the saddle post clamp. For the JR1 / JG1, use a torque wrench to loosen the hexagonal bolt and release the saddle post clamp to adjust the saddle height. -
Page 10: Pre-Ride Safety Check
Quick Assembly Guide – JF1 / JR1 / JG1 3. Pre-ride Safety Check Make sure to pump the tire and the tire pressure is normal. Inspect the condition of the brakes, derailleur, and chain device – they must function well.
