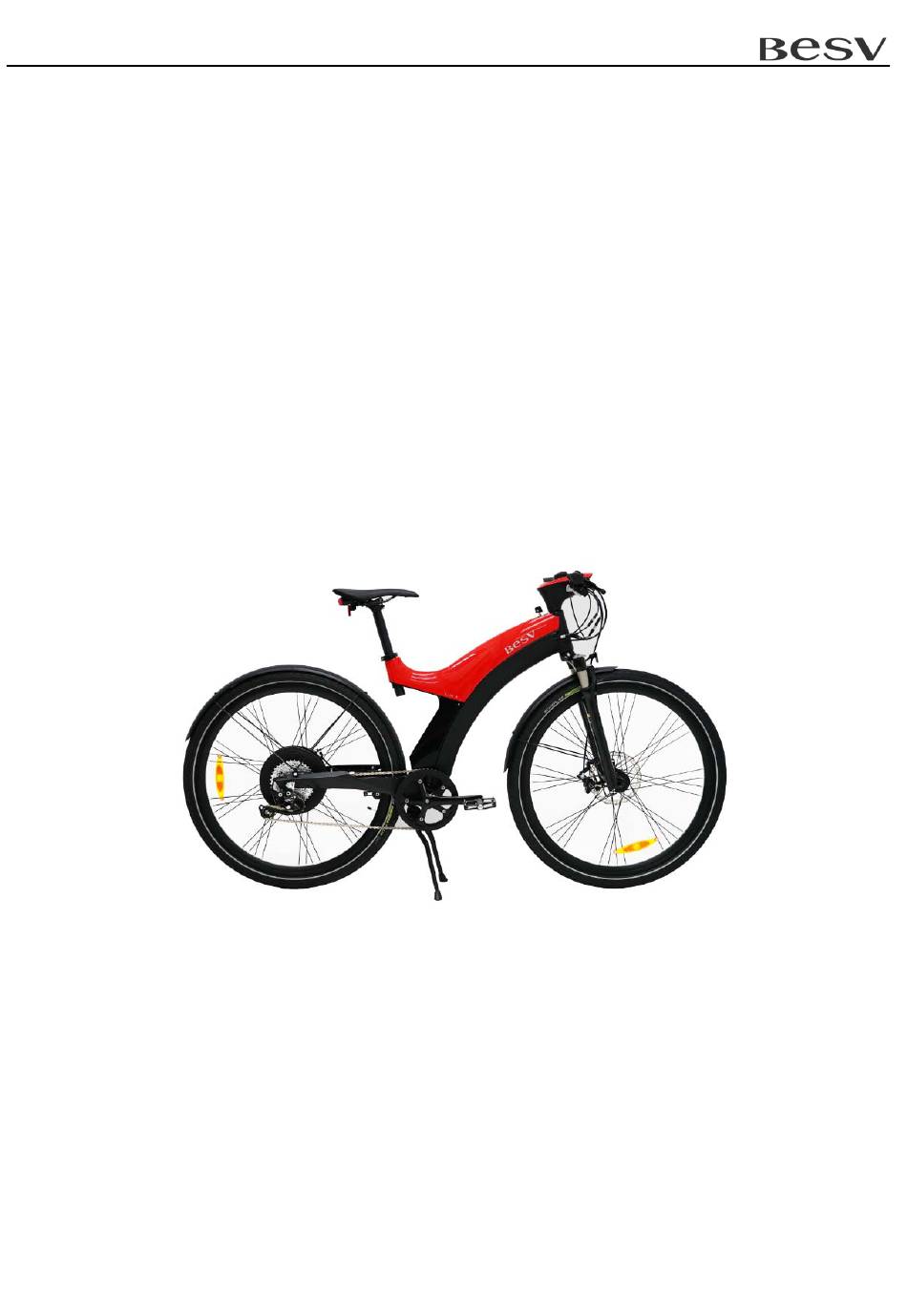

  • Page 1 Quick Assembly Guide - BESV LX1   Quick Assembly Guide BESV LX1 V. 1.0, Jan. 2015...
  • Page 2: Table Of Contents

    Quick Assembly Guide - BESV LX1   Contents 1.  What’s in the Box  ............................ 2  1.1  Main Box Contents .......................... 2  1.2  Accessory Box Contents ........................ 2  2.  Assembly Procedures .......................... 3  2.1  Front Wheel ............................ 3  2.2  Front Fender and Reflector ...................... 5  2.3 Pedal ............................... 6  2.4 Battery  .............................. 7 ...
  • Page 3: What's In The Box

    Quick Assembly Guide - BESV LX1   1. What’s in the Box 1.1 Main Box Contents 1. Main Bike Assembly 2. Accessory Box 3. Saddle/Seat Post Set   4  4. Front Wheel 5. Front Fender 2  1.2 Accessory Box Contents 1.
  • Page 4: Assembly Procedures

    Quick Assembly Guide - BESV LX1   2. Assembly Procedures 2.1 Front Wheel 2.1.1 Unpack the front wheel and the main bike assembly. 2.1.2 Insert the wheel into the fork end. Attention: The disk should be placed between the brake pads.
  • Page 5 Quick Assembly Guide - BESV LX1   2.1.3 Set the quick release (QR) Unscrew the nut and spring from the QR and insert the QR stem from the left side of the bike. Attention: The quick release handle should be on the left side of bike.
  • Page 6: Front Fender And Reflector

    Quick Assembly Guide - BESV LX1   2.2 Front Fender and Reflector   2  2.2.1 Fender parts introduction 1. Front Fender & Support 2. Fix Plate*2 3. M5 Screw*2 4. Front Reflector   3  5. Fender screw with washers   5 ...
  • Page 7: Pedal

    Quick Assembly Guide - BESV LX1   2.3 Pedal 2.3.1 Take out the pedal. 2.3.2 Set up the right pedal R  Note: There is a mark “R” on one of the pedal. Assemble it onto the right crank clockwise. L ...
  • Page 8: Battery

    Quick Assembly Guide - BESV LX1   2.4 Battery 2.4.1 Insert the key and turn it to the “OPEN” position. 2.4.2 Pull the battery cover upward. 2.4.3 Slide the battery in and push it until it firmly connects to the socket.
  • Page 9: Saddle & Seat Post

    Quick Assembly Guide - BESV LX1   2.5 Saddle & Seat Post 2.5.1 Open the seat post clamp and insert the seat post。 Attention: the depth of the seat post. The seat post must be inserted at least 10cm (3.9inch).
  • Page 10: Rear Light

    Quick Assembly Guide - BESV LX1   2.6 Rear Light 2.6.1 Introduction of the rear light parts.   2  1. Rear light 2. Bracket upper housing. 3. Bracket lower housing & reflector 4. M4 Nut*2 5. M4*L15 Screw*2   5 ...
  • Page 11: Checklist

    Quick Assembly Guide - BESV LX1   3 Checklist 3.1 Check the tire pressure is normal. 3.2 Check the function of the brakes, derailleur, and chain. 3.3 Check the function of the electric module and the battery power. Please refer to LX1 user manual.
