BESV PS1 Quick Assembly Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

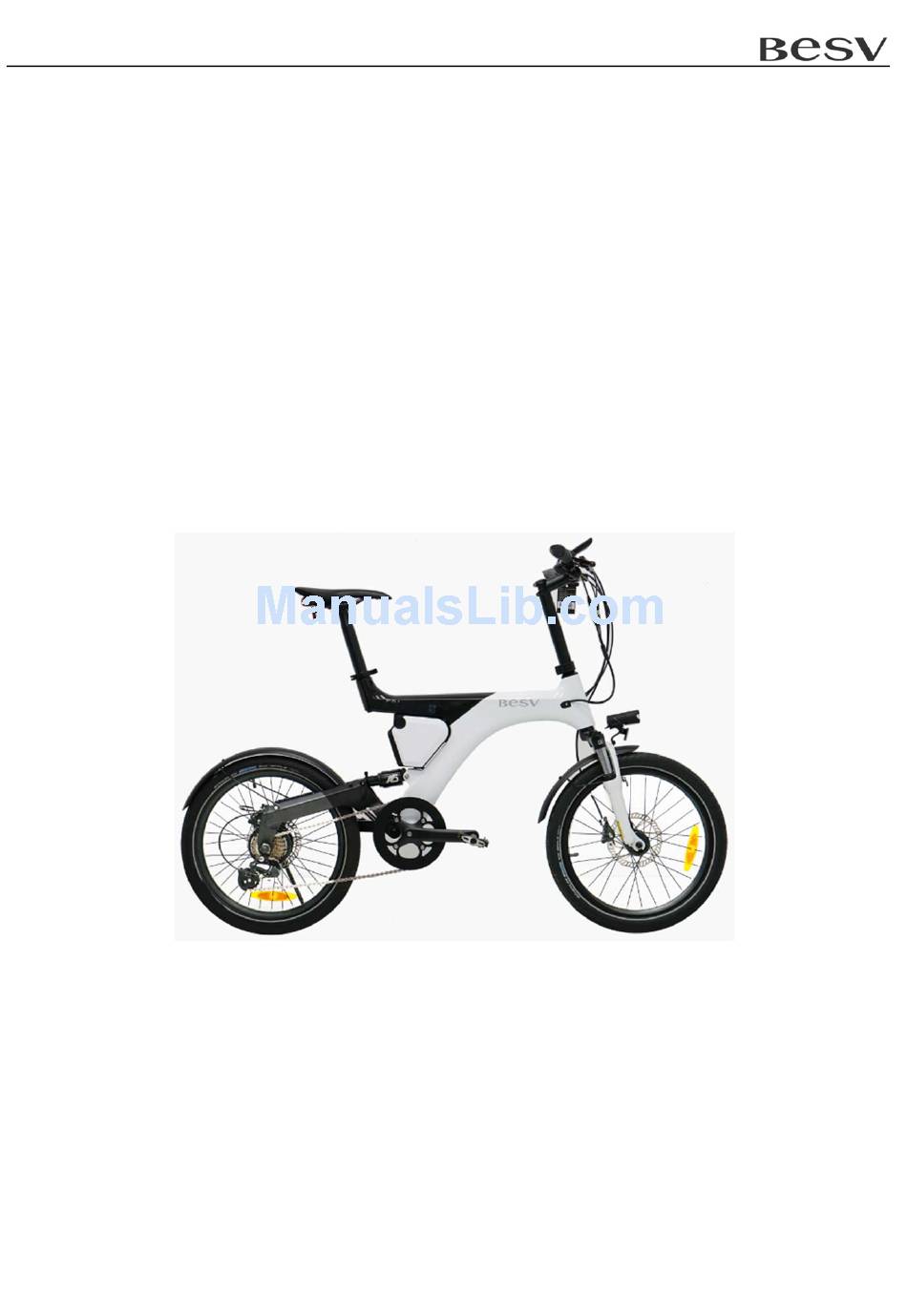

Quick Assembly Guide - BESV PS1


Quick Assembly Guide

BESV PS1
V. 1.0, Jan. 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS1 and is the answer not in the manual?

Questions and answers

Related Manuals for BESV PS1

Summary of Contents for BESV PS1

  • Page 1: Quick Assembly Guide

    Quick Assembly Guide - BESV PS1   Quick Assembly Guide BESV PS1 V. 1.0, Jan. 2015...

  • Page 2: Table Of Contents

    Quick Assembly Guide - BESV PS1   Contents What’s in the Box  ............................ 2     Main Box Contents .......................... 2     Accessory Box Contents ........................ 2     Assembly Procedures .......................... 3     Front Wheel  ............................ 3     Steering Column Extension Tube with Stem ................ 5  ...

  • Page 3: What's In The Box

    Quick Assembly Guide - BESV PS1   1. What’s in the Box 1.1 Main Box Contents 1. Main Bike Assembly 2. Accessory Box 3. Saddle/Seat Post Set 4. Front wheel 1.2 Accessory Box Contents Parts in the accessory box: 1. Product Documentation 2.

  • Page 4: Assembly Procedures

    Quick Assembly Guide - BESV PS1   2. Assembly Procedures 2.1 Front Wheel 2.1.1 Unpack the front wheel and the main bike assembly. 2.1.2 Insert the wheel into the fork end. Attention: The disk should be placed between the brake pads.
  • Page 5 Quick Assembly Guide - BESV PS1   2.1.3 Set the quick release (QR) Unscrew the nut and spring from the QR and insert the QR stem from the left side of the bike. Attention: The quick release handle should be on the left side of bike.

  • Page 6: Steering Column Extension Tube With Stem

    Quick Assembly Guide - BESV PS1   2.2 Steering Column Extension Tube with Stem 2.2.1 Insert the extension tube (a) b  into the front fork (b). 2.2.2 Adjust the alignment of the tube The tube and stem should face forward. The notch of clamp (d) must face backward.

  • Page 7: Set Up The Handle Bar

    Quick Assembly Guide - BESV PS1   2.3 Set Up the Handle Bar 2.3.1 Take the brackets(e) off the stem 2.3.2 Align the handle bar. Put the handle bar into stem and lock the brackets but not tighten it. Refer to the markings on the handle bar and align it with the center of the lock ring.

  • Page 8: Front Fender And Headlight

    Quick Assembly Guide - BESV PS1   2.4 Front Fender and Headlight 2.4.1 Fender parts introduction f  (f) Front fender h  (g) Fender support i  (h) Nylon nut. (i) M5 screw 2.4.2 Assemble the fender first f  Assemble the part (g), (f), (i) as right picture show.
  • Page 9 Quick Assembly Guide - BESV PS1   2.4.3 Positon the fender from back to front within the gap between wheel and fork. Attention: The brake cable must be kept to the outer left of the fender support 2.4.4 Push the fender forward until the hanger touches the fork.
  • Page 10 Quick Assembly Guide - BESV PS1   2.4.6 Insert the screw (k) from the front and through the light, fork, and the fender hanger. Sequentially from (m), (n), (p) and tighten them. 2.4.7 Secure the front fender support to the fork After adjusting the space between the fender and the wheel, use the M10 screw to secure to the fork.

  • Page 11: Pedal

    Quick Assembly Guide - BESV PS1   2.5 Pedal 2.5.1 Take out the pedal. 2.5.2 Set up the right pedal Note: There is a mark “R” on one of the pedal. Assemble it onto the right crank clockwise. 2.5.3 Set up the left pedal Take another pedal and assemble it to the left crank counterclockwise.

  • Page 12: Hmi

    Quick Assembly Guide - BESV PS1   2.6 HMI 2.6.1 Set up the two brackets. The C type notch face forward and lock onto the handle bar. Keep the screw loose for now. *Note the bracket location. 2.6.2 Set up the HMI Put the HMI in the bracket and adjust the angle.
  • Page 13 Quick Assembly Guide - BESV PS1   2.6.5 Set up the Switch Set up the switch and cable as shown in the picture. Place the switch close to the left brake lever. Assemble the lower case and tighten the screw after adjusting the angle.

  • Page 14: Battery

    Quick Assembly Guide - BESV PS1   2.7 Battery 2.7.1 Insert the key and turn it to the “OPEN” position. 2.7.2 Aligning the battery with the metal rail, slide the battery in until it is firmly connected to the socket.

  • Page 15: Saddle & Seat Post

    Quick Assembly Guide - BESV PS1   2.8 Saddle & Seat Post 2.8.1 Open the seat post clamp and insert the seat post. Attention: the depth of the seat post. The seat post must be inserted at least 10cm (3.9inch).

  • Page 16: Rear Light

    Quick Assembly Guide - BESV PS1   2.9 Rear Light   2  2.9.1 Introduction of the rear light parts. (1) Rear light (2) Bracket upper housing.   5    1    3  (3) Bracket lower housing & reflector (4) M4 Nut*2 (5) M4*L15 Screw*2 2.9.2 Bracket.

  • Page 17: Checklist

    Quick Assembly Guide - BESV PS1   Checklist 3.1 Check the tire pressure is normal. 3.2 Check the function of the brakes, derailleur, and chain. 3.3 Check the function of the electric module and the battery power. Please refer to PS1 user manual.   16 ...
