Termomont TKU3-W PRO Series Instructions Manual

Termomont TKU3-W PRO Series Instructions Manual

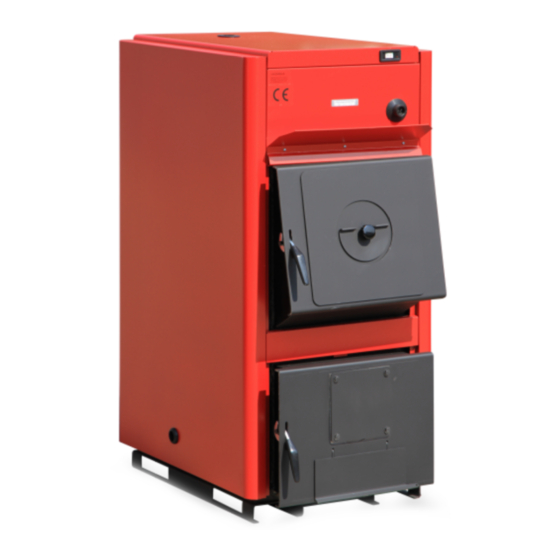

Three-pass solid fuel hot water boiler

Advertisement

Three-Pass Solid Fuel Hot Water Boiler TKU3-W PRO 20-50 KW
INSTRUCTIONS
for usage and maintenance
Prhovačka bb 22310 Šimanovci, Srbija
Tel/Fax. +381 22 480404 +381 63 259422
office@termomont.rs www.termomont.rs
January 12, 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TKU3-W PRO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Termomont TKU3-W PRO Series

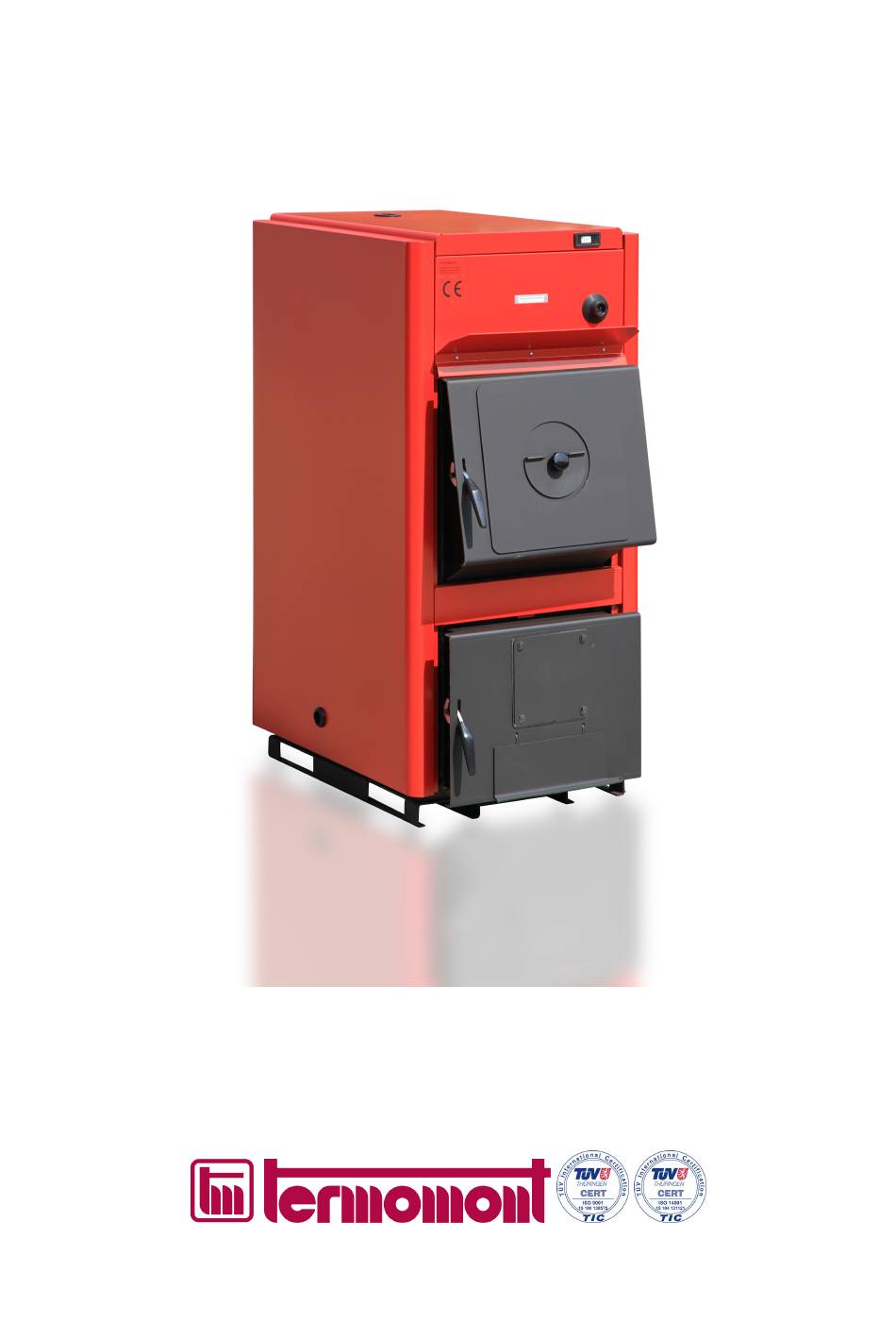

  • Page 1 Three-Pass Solid Fuel Hot Water Boiler TKU3-W PRO 20-50 KW INSTRUCTIONS for usage and maintenance Prhovačka bb 22310 Šimanovci, Srbija Tel/Fax. +381 22 480404 +381 63 259422 office@termomont.rs www.termomont.rs January 12, 2022...
  • Page 2: Table Of Contents

    Contents 1 Boiler design 1.1 Dimensions TKU3-W PRO ........1.2 Technical data chart according to EN 303-5 .
  • Page 3: Boiler Design

    Boiler design Parts of the boiler: 1. Combustion chamber 2. Grid 3. Boiler 4. Flue gas 5. Flow 6. Return 7. Upper door 8. Lower door 9. Burner mounting flange 10. Base 11. Insulation 12. Drain tap (½“ ) 13. Draught regulator mounting place 14.
  • Page 4: On Product

    On Product • Prescribed fuel declaration for this boiler is firewood or coal only with caloric value > 15 MJ/kg; • Three-pass solid fuel boiler TKU3-W PRO is fully compatible with BIOTERMEC wood pellet burner for wood pellet combustion and it fulfills the requirements of the European norm EN 303/5. •...
  • Page 5: Chimney

    Chimney Boiler connection to the chimney is shown in the figure: Proper dimensioning of the chimney is a very important premise for optimum boiler performance. The purpose of the chimney is to take out the products of combustion but also to secure necessary air draught in the boiler.
  • Page 6: Boiler Installation

    Boiler installation Fitting the boiler to a closed central heating system Depending on the position of the boiler in relation to the pipe-work and the radiators – the installation can be carried out using one of two methods. 4.1.1 Installation method 1 If the boiler is positioned on the same level or higher than the pipe-work and radiators.
  • Page 7 Aeration vessel to be fitted at highest point of the system at top of boiler outlet. This should include an overflow system with valve to discharge air from the boiler to prevent overheating. A float operated valve allows water into a cistern fitted with an overflow pipe. When the system is filling, the valve remains open.
  • Page 8: Installation Method 2

    Great care must be taken to ensure air does not enter the boiler. 4.1.2 Installation method 2 To be used in the case of the boiler being positioned and installed at a lower level than the installed pipe-work and radiators. As shown on Figure, following elements are connected along the FLOW: 1.
  • Page 9: Filling Up The Boiler And Installation With Water

    Filling up the boiler and installation with water Filling is done using the drain tap valve (to be found on the return line close to boiler). The filling process is done when no air is coming out. Working pressure depends on the overall height of the system and the open expansion vessel (1 bar for each 10 m is an estimate).
  • Page 10: Boiler Cleaning And Maintenance

    2. Heating from below – put small amount of solid fuel over the fireplace pipes (“grid”) (no ash should be present) and set up a fire. The draught regulator is at the maximum position. When the fire begins to burn, add larger amount of fuel and set draught regulator on desired temperature / position.
  • Page 11 Connection scheme for the thermal safety valve: 1. Cold water entering from the water supply system 2. Cold water entry into boiler 3. Hot water going outside the boiler 4. hot water ending in the sewage water system 5. Thermo-valve sensor To connect the safety valve: •...
  • Page 12: A Mounting The Housing Of The Tku3 Boiler

    Mounting The Housing of the TKU3 Boiler...
