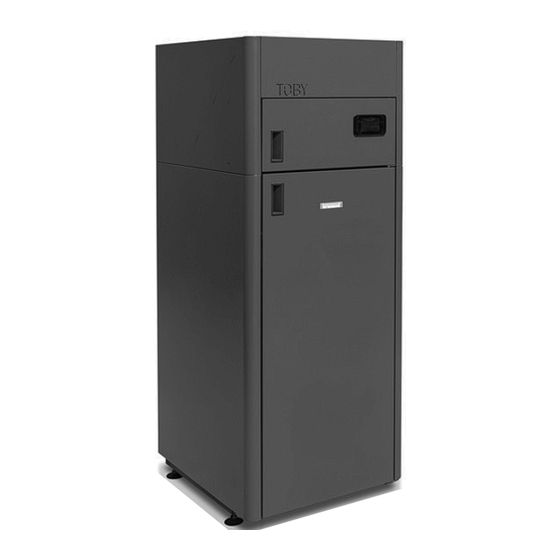

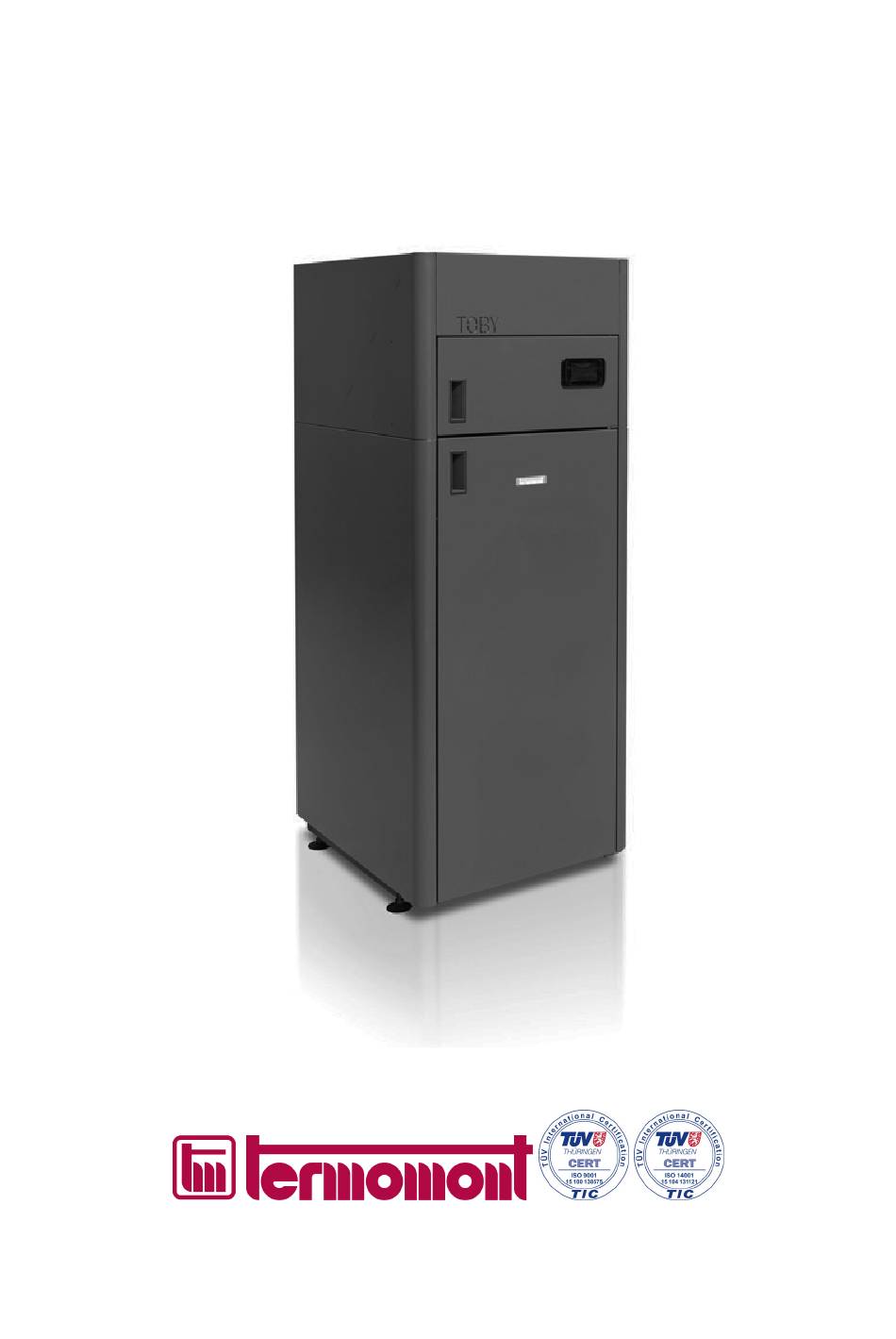

- Page 1 TOBY B Automatic self-cleaning wood pellet boiler "compact" 14-19-23-32-42-52 DIRECTIONS for use and maintenance Prhovačka bb 22310 Šimanovci, Srbija Tel/Fax. +381 22 480404 +381 63 259422 podrska@termomont.rs www.termomont.rs September 4, 2018...
-
Page 2: Table Of Contents
Contents 1 Basic boiler data 1.1 Technical Data Chart ........1.2 On Product . -
Page 3: Basic Boiler Data
Basic boiler data... -
Page 4: Technical Data Chart
Type Width B (mm) Height H (mm) Depth L (mm) B 14 1450 B 19 1450 B 23 1545 B 32 1545 B 42 1595 B 52 1595 1005 Technical Data Chart Boiler type TOBY B Total power 13.1 KW 18,5 KW 22,1 KW 31,1 KW... - Page 5 2. Self-cleaning bottom of the burner to automatically remove the ash residues from the burner Ignition, start-up and turning-off are fully automatized. Combustion control is optimized using algorithms such as ‘modulation’ which automatically decreases pellet dose as the difference between desired and reached temperature is decreasing.
-
Page 6: Boiler Parts
Boiler parts Delovi kotla: 1. Boiler door (external) 2. Inner boiler door (including visor and insulation) 3. Inner door for cleaning 4. Ash cleaning area of the tubulators 5. Ash-tray of the burner 6. Pellet doser 7. Embedded pellet burner 8. Upper external door with display 9. Tubulator handels 10. Cover of tubulators handles 11. Boiler housing-upper part 12. - Page 7 Delovi kotla posmatrano sa zadnje strane: 17. Back housing-upper part 18. Back housing 19. Back revision opening lid 20. Small pellet magazine 21. Start line 22. Return line 23. Water probe 24. Spiral dispenser with motor 25. Fill/drain tap 26. Boiler fan 27. Fumes probe 28. Flue line element 29. Spisal dispenser probe 30.
-
Page 8: Directions For Storage And Transport
SET VERSION: 33. Circulation pump 34. Safety valve 35. Expansion vessel Directions for storage and transport Delivery form Boiler is shipped with plastic protection sleeve on a europallet. Boiler must be in its upright position all the time. -
Page 9: Delivery Range
The rotation of the boiler during the shipment or installation represents a serious risk and can lead to damaging the boiler. It is forbidden to place one boiler onto another. The boiler can be stored only in closed rooms with no atmospheric influence. The humidity in the storing room also must not exceed the critical value of 80%, so as not to create any condensate. -
Page 10: Safety Remarks
Clean the boiler on a regular base. An expert should be entrusted with the mounting of the heating and the initial operation. This must be a person who will take over the responsibility and guarantee the correct operation of the boiler and of the complete central heating system. -
Page 11: Connecting To The Chimney
Front side should have free access. Boiler base must be stable and made of fireproof material. Connecting to the chimney TOBY H kamin is a boiler with natural draught so it requires a chimney not just to transport flue gases out of the boiler but also to create negative pressure necessary for boiler function. -
Page 12: Filling The System With Water
1) Flue pipe 2) Gasket 3) Fireproof protection cap 4) Chimeny dimater not greater than 200x200mm with max height 5-6 metars. Filling the system with water Filling the system with water is to be done using the tap valve connection of the boiler. When filling the system with water take care that no air remains in the boiler. - Page 13 1) Boiler TOBY B 2) Boiler valve 3) Automatic air vent 4) Termo-manometer 5) Safety valve 6) Mix valve 7) Expansion vessel 8) Circulation pump 9) Dirt catcher The safety valve (with preset 2,5 bar threshold) should be mounted closed to the boiler (Po- sition 5 at the image above).
-
Page 14: Connecting The Boiler With A Closed Central Heating System With Circulation Pump On The Flow Line
Connecting the boiler with a closed central heating system with circulation pump on the flow line Recommended connection scheme is depicted below: 1) Boiler TOBY B 2) Boiler valve 3) Automatic air vent 4) Termo-manometer 5) Safety valve 6) Mix valve 7) Expansion vessel 8) Circulation pump 9) Dirt catcher The safety valve (with preset 2,5 bar threshold) should be mounted closed to the boiler (Po- sition 5 at the image above). -
Page 15: Connecting The Boiler With A Closed Central Heating System Set Version
ratio 1 KW :1 l. Connecting the boiler with a closed central heating system SET version Recommended connection scheme is depicted below: 1) Boiler TOBY H 2) Boiler valve 3) Automatic air vent 4) Termo-manometer 5) Mix valve 6) Dirt catcher The safety valve (with preset 2,5 bar threshold) is already mounted on the backside of the boiler and its connected directly to the boiler water jacket (Position 18, drawing in Chapter 1) Sigurnosni ventil (sa pragom otvaranja podešenim na 2,5 bar) je već... -
Page 16: Use Of Temperature Relief Valve With Obligatory Filling
It is recommended to install a dirt catcher and also an anticondensation valve on the return line. (3-way mixing valve). Please not that air-vent is not premounted with the boiler. It should be connected externally. Use of temperature relief valve with obligatory filling The temperature relief valve (shown below) must be present in the system. -
Page 17: Boiler Cleaning And Maintenance
1. 3-end mixing valve 2. Circulation pump 3. Thermostate The purpose of this valve is to transmit a portion of the hot water to the return line cold water in order to compensate the temperature difference between the flow and return line. Boiler cleaning and maintenance Regular maintenance and cleaning of pellet boilers is necessary to ensure product functionality and long- life operation. - Page 18 Open the lower, chamber door with the boiler KEY. Release the upper mobile part of the burner pot. Attention: Some boiler parts may be hot! Clean the area around the burner. Clean the area around the burner. If you dont have a ash vacuum cleaner, use the manual tools that are delivered with the boiler.
- Page 19 Burner is now free of ash. Put the upper burner part back in place. Release the screw-balls that hold the plate below. Clean the area inside with the ash cleaner or using manual tools. When screwing back the holders, screw completely, so that no air can pass inside.
- Page 20 If no vacuum cleaner is present, use the hand tools as shown below.
-
Page 21: Weekly Cleaning Of The Heat Exchangers
Weekly cleaning of the heat exchangers Necessary equipment: Gloves, boiler KEY (delivered with the boiler). Make sure you perform this operation while boiler is cold. Open the doors on the top panel of the boiler. There are two bars coming out. Now take the boiler KEY, mount on the bar and move up-down to release the ash from the heat exchanger tubulators. - Page 22 Metal cap with tubulator lifters and one screw in the middle is visible. The insulation coat is attached below this metal cap. To unsrew the cap use boiler KEY. Put the metal cap aside. make sure you make no damage to the stone-wall insulation below.
- Page 23 With fork-key size 13 or boiler KEY, unscrew the upper cover of the heating chamber. Lift the cover and put it on side. Perform detailed cleaning of all parts that can be accessed. Remove the ash. The use of the ash-vacuum cleaner would make this job faster and easier.
- Page 24 After the cleaning put back the cover and screw the holders. Put everything back in its place. Prhovačka bb 22310 Šimanovci, Srbija Tel/Fax. +381 22 480404 +381 63 259422 podrska@termomont.rs www.termomont.rs...
