K o l o 1 P l u s
A s s e m b l y I n s t r u c t i o n s
H E A D S U P !
· Assemble Pod as closely as possible to its final placement
· Provided instructions are for left hand reverse door assembly only.

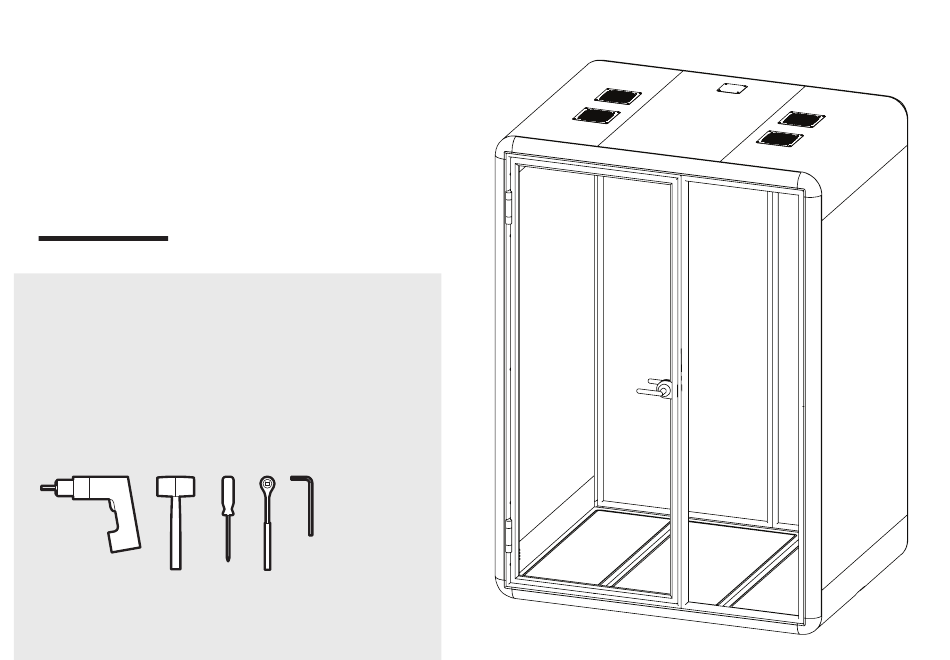

T O O L S R E Q U I R E D
· Drill
· Soft mallet
· Phillips screwdriver
· Ratchet with metric socket set
· Allen wrench set
Kimball International
1600 Royal Street
Jasper, IN 47546
©2023 Kimball International, Inc.
CUSTOMER SERVICE
(800) 482-1717
UL_V02 _Sep2022
PA G E 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kimball Kolo 1 Plus
Summary of Contents for Kimball Kolo 1 Plus
- Page 1 · Drill · Soft mallet · Phillips screwdriver · Ratchet with metric socket set · Allen wrench set Kimball International CUSTOMER SERVICE 1600 Royal Street (800) 482-1717 Jasper, IN 47546 ©2023 Kimball International, Inc. UL_V02 _Sep2022 PA G E 1...
-
Page 2: Important Safety Instructions
Kolo IMPORTANT SAFETY INSTRUCTIONS When using an electrical furnishing, basic precautions should always be followed, including the following: Read all instructions before using this Pod . DANGER To reduce the risk of electric shock: Mount only approved work surfaces and secondary surfaces in accordance with instructions. - Page 3 Kolo 1 Plus I N S T R U C T I O N S F O R U S E & M A I N T E N A N C E P O D I N T E R I O R...
- Page 4 Kolo 1 Plus I N N E R C A R T O N D E TA I L S Q2+Q3 Floor Finishing Panels Ceiling Corner Ceiling Side Floor Tiles Ceiling Finishing Panels Side Wall Ceiling Corner + Electric Side Wall + Electric...
- Page 5 Kolo 1 Plus T O O L B O X C O N T E N T S · S C R E W S 1 : 1 M4 x 25mm Exterior Handle [blank] QTY. QTY. M8 x 50mm - Hex...
- Page 6 Kolo 1 Plus C O M P O N E N T S Floor Horizontal Frames Horizontal Fins QTY. QTY. QTY. Floor Corner + Electric Corner Frames Vertical Fins QTY. QTY. QTY. Side Walls + Electric Vertical Frames Glass Door QTY.
- Page 7 Kolo 1 Plus · Begin Floor assembly 7 x4 2 x4 F R O N T PA G E 5...
- Page 8 Kolo 1 Plus · Expose the cable connectors from the wall and floor sections · Make the electrical and data cable connections · Attach the side walls to the floor 2 x4 F R O N T 2 x4 PA G E 6...
- Page 9 Kolo 1 Plus · Make the electrical connections · Install four alignment pins · Screw the ceiling corners and ceiling together using four screws 2 x4 F R O N T 7 x4 PA G E 7...
- Page 10 Kolo 1 Plus · Install the ceiling and make the electrical connections 2 x4 2 x4 F R O N T PA G E 8...
- Page 11 Kolo 1 Plus · Ensure that A/C power, USB outlets, light, and fan are in working order · If failure, recheck all connection points · If all components function, move to next phase of assembly HEADS UP! P o w e r C o r d...
- Page 12 Kolo 1 Plus · Attach horizontal frame H1 4 x5 F R O N T 3 x5 PA G E 1 0...
- Page 13 Kolo 1 Plus · Insert vertical frame J1 onto corner 1 · Insert this assembled unit into horizontal frame H1 · Attach vertical frame H1 4 x5 3 x5 PA G E 1 1...
- Page 14 Kolo 1 Plus · Orient the glass panels outward · Fit the glass panels into horizontal frame H1 · Engage with vertical frame J1 F R O N T Sticker Face Outwards PA G E 1 2...
- Page 15 Kolo 1 Plus · Insert fin M1 into corner 1 · Insert vertical frame J2 onto corner 2 · Insert this assembled unit into horizontal frame H1 and fin M1 F R O N T PA G E 1 3...
- Page 16 Kolo 1 Plus · Attach vertical frame J2 4 x5 3 x5 F R O N T PA G E 1 4...
- Page 17 Kolo 1 Plus · Assemble corners 3 and 4 onto horizontal frame H2 and fin M2 · Lower this assembled unit into place, while also inserting fins N1 and N2 into corners 1 and 2 PA G E 1 5...
- Page 18 Kolo 1 Plus · Attach horizontal frame H2 · Use a mallet to close the four hinged fins N1, N2, M1 and M2 4 x5 3 x5 F R O N T PA G E 1 6...
- Page 19 Kolo 1 Plus · Begin front face assembly · Attach horizontal frame H3 4 x5 F R O N T 3 x5 PA G E 1 7...
- Page 20 Kolo 1 Plus · Insert vertical frame J3 onto corner 5 · Insert this assembled unit into horizontal frame H3 · Attach vertical frame J3 4 x5 3 x5 F R O N T PA G E 1 8...
- Page 21 Kolo 1 Plus · Fit the bezels between the door handles use the two screws provided to secure the handle. E X T E R I O R I N T E R I O R 2 x2 3 x2...
- Page 22 Kolo 1 Plus · Orient the door and side glass panel outward · Slide the glass panels into horizontal frame H3 · Engage with vertical frame J3 F R O N T Sticker Face Outwards PA G E 2 0...
- Page 23 Kolo 1 Plus · Insert fin M3 into corner 5 · Insert vertical frame J4 onto corner 6 · Insert this assembled unit into horizontal frame H3 and fin M3 PA G E 2 1...
- Page 24 Kolo 1 Plus · Attach vertical frame J4 4 x5 3 x5 PA G E 2 2...
- Page 25 Kolo 1 Plus · Assemble corners 7 and 8 onto horizontal frame H4 and fin M4 · Lower this assembled unit into place, while also inserting fins N3 and N4 into corners 5 and 6 PA G E 2 3...
- Page 26 Kolo 1 Plus · Attach horizontal frame H4 4 x5 3 x5 PA G E 2 4...
- Page 27 Kolo 1 Plus · Install screws to secure door and side panel · Install screw caps 6 x4 Double Screw 5 x5 Cap x4 Double Screw Cap x5 Single Screw Cap x2 5 x2 PA G E 2 5...
- Page 28 Kolo 1 Plus · Use mallet to close all the hinged screw access fins · Remove 4 “OUT” orientation stickers · Use an allen wrench to disengage the glides · Roll the Pod to it’s desired location · Adjust each of the 4 glides, leveling the Pod...
- Page 29 Kolo 1 Plus · Install Floor Cap · Install Floor tiles P Floor Cap PA G E 2 7...
- Page 30 Kolo 1 Plus · Press finishing panels into place · Plug in the Pod · Check function of all electrical components 1 x2 PA G E 2 8...
- Page 31 Kolo 1 Plus CEILING EXTERIOR VIEW · Unplug the power cord SPRINKLER COVER PANEL REMOVED · Remove the cover plate 31.5” · Drill a pilot hole from the exterior · Use a 2 3/8” hole saw from interior 7 3⁄16”...
- Page 32 Kolo 1 Plus · Plug in the Pod PA G E 3 0...
