K o l o 2 A D A
A s s e m b l y I n s t r u c t i o n s
H E A D S U P !
· Assemble Pod as closely as possible to its final position
· Place excess cardboard under each of the 8 feet during assembly to ease
final positioning of the Pod

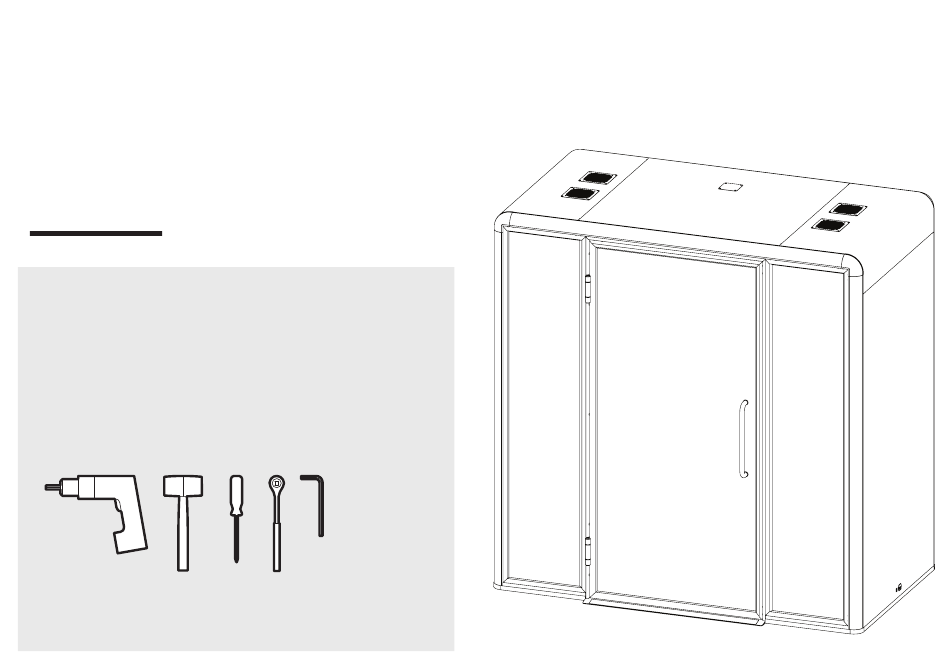

T O O L S R E Q U I R E D
· Drill
· Soft mallet
· Phillips screwdriver
· Ratchet with metric socket set
· Allen wrench set
Kimball International
1600 Royal Street
Jasper, IN 47546
©2023 Kimball International
CUSTOMER SERVICE
(800) 482-1717
UL_V2 _Sep2022
PA G E 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kimball Kolo 2 ADA
Summary of Contents for Kimball Kolo 2 ADA
- Page 1 T O O L S R E Q U I R E D · Drill · Soft mallet · Phillips screwdriver · Ratchet with metric socket set · Allen wrench set Kimball International CUSTOMER SERVICE 1600 Royal Street (800) 482-1717 Jasper, IN 47546 ©2023 Kimball International UL_V2 _Sep2022 PA G E 1...
-
Page 2: Important Safety Instructions
Kolo IMPORTANT SAFETY INSTRUCTIONS When using an electrical furnishing, basic precautions should always be followed, including the following: Read all instructions before using this Pod . Vertical Frame (2pcs) Top Panels - singular? DANGER Top Panels (2pcs) To reduce the risk of electric shock: Mount only approved work surfaces and secondary surfaces in accordance Floor Side Panels (2pcs) Side Wall... - Page 3 Kolo 2 ADA I N S T R U C T I O N S F O R U S E & M A I N T E N A N C E P O D I N T E R I O R...
- Page 4 Kolo 2 ADA C A R T O N P L A N Corner Frames Horizontal Frames + Fins Ceiling Corner + Electric Left Vertical Frames + Fins Ceiling Floor Corner Glass Door Ceiling Corner Side Wall + Electric Floor Corner...
- Page 5 Kolo 2 ADA T O O L B O X C O N T E N T S M5x10 M4x30 PET Blocks QTY. QTY. QTY. M8x16 M6x16 Door Handles QTY. QTY. QTY. M8x50 Single Screw Cap Alignment Pin QTY. QTY.
- Page 6 Kolo 2 ADA C O M P O N E N T S Floor Right Vertical Frames Corner Frames QTY. QTY. QTY. Floor Corners Left Vertical Frames Horizontal Frames QTY. QTY. QTY. Side Walls + Electric Back Glass Side Panels Horizontal Fins QTY.
- Page 7 Kolo 2 ADA C O M P O N E N T S Front Glass Panels QTY. Glass Door QTY. Center + Side Floor Tiles QTY. Finishing Panels QTY. PA G E 5...
- Page 8 Kolo 2 ADA · Begin Floor assembly HEADS UP! · Assembly drawing is depicted upside down · Orient the the right and left floor corner brackets before securing together · Flip the assembled floor upright 1 x8 HEADS UP! flip the...
- Page 9 Kolo 2 ADA · Secure the side walls to the floor assembly 2 x8 F R O N T PA G E 7...
- Page 10 Kolo 2 ADA · Remove the two screws connecting the ceiling corners and ceiling · Make the electrical connections · Install four alignment pins · Secure the ceiling corners and ceiling together using four screws F R O N T...
- Page 11 Kolo 2 ADA · Install the ceiling and make the electrical connections 3 x4 3 x4 F R O N T PA G E 9...
- Page 12 Kolo 2 HEADS UP! · Ensure that A/C power, USB outlet, light, and fan are in working order · If failure, recheck all connection points · If all components function, move to next phase of assembly F R O N T Powercord HEADS UP! Ensure that A/C power,...
- Page 13 Kolo 2 ADA · Insert right vertical frame and secure to rear of Pod HEADS UP! · Be sure to install right vertical frames on the right side and left vertical frames on the left side 5 x5 4 x5...
- Page 14 Kolo 2 ADA · Orient the glass panels outward · Fit glass panels into frame and slide into position · Engage with right vertical frame F R O N T Sticker Face Outwards PA G E 1 2...
- Page 15 Kolo 2 ADA · Remove sticker orientation labels · Insert left vertical frame and secure to rear of Pod HEADS UP! · Be sure to install right vertical frames on the right side and left vertical frames on the left side...
- Page 16 Kolo 2 ADA · Assemble corners onto horizontal frame and horizontal fin · Lower this assembled unit into place, while also inserting vertical fins into the pins on the corners and floor assembly F R O N T PA G E 1 4...
- Page 17 Kolo 2 ADA · Secure horizontal frame · Use a mallet to close horizontal and vertical fins 5 x7 4 x7 F R O N T PA G E 1 5...
- Page 18 Kolo 2 ADA HEADS UP! · Assemble door frame on the floor · Secure door frame to Pod 1 x4 F R O N T PA G E 1 6...
- Page 19 Kolo 2 ADA · Orient glass panel outward · Fit glass panel into floor frame · Insert right vertical frame and secure to front of Pod HEADS UP! · Be sure to install right vertical frames on the right side and left vertical frames...
- Page 20 Kolo 2 ADA · Orient glass panel outward · Fit glass panel into floor frame · Insert left vertical frame and secure to front of Pod HEADS UP! · Be sure to install right vertical frames on the right side and left vertical frames on the left side...
- Page 21 Kolo 2 ADA · Remove sticker orientation labels · Assemble corners onto horizontal frame and horizontal fin · Lower this assembled unit into place, while also inserting vertical fins into the pins on the corners and floor assembly PA G E 1 9...
- Page 22 Kolo 2 ADA · Secure horizontal frame · Use a mallet to close horizontal and vertical fins 5 x7 4 x7 PA G E 2 0...
- Page 23 Kolo 2 ADA 6 x1 Single Screw Cap x1 6 x10 Double Screw Cap x10 PA G E 2 1...
- Page 24 Kolo 2 ADA · Secure glass door HEADS UP! · Use PET blocks to prop door while securing door to hinges 7 x6 PET Block x2 PA G E 2 2...
- Page 25 Kolo 2 ADA · With door in open position, use hex key provided to secure arm closer to door · Remove PET Blocks PA G E 2 3...
- Page 26 Kolo 2 ADA · Attach handle Handle PA G E 2 4...
- Page 27 Kolo 2 ADA · Install floor tiles 1 x2 PA G E 2 5...
- Page 28 Kolo 2 ADA · Press finishing panels into place 1 x2 PA G E 2 6...
- Page 29 Kolo 2 ADA · Unplug the power cord · Remove the cover plate · Drill a pilot hole from the exterior · Use a 2 3/8” hole saw from interior · Install grommet, plumbing and sprinkler head guard (not provided)
- Page 30 Kolo 2 ADA · Plug in Pod PA G E 2 8...
