Kimball Om Stand Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
O m S t a n d
A s s e m b l y I n s t r u c t i o n s

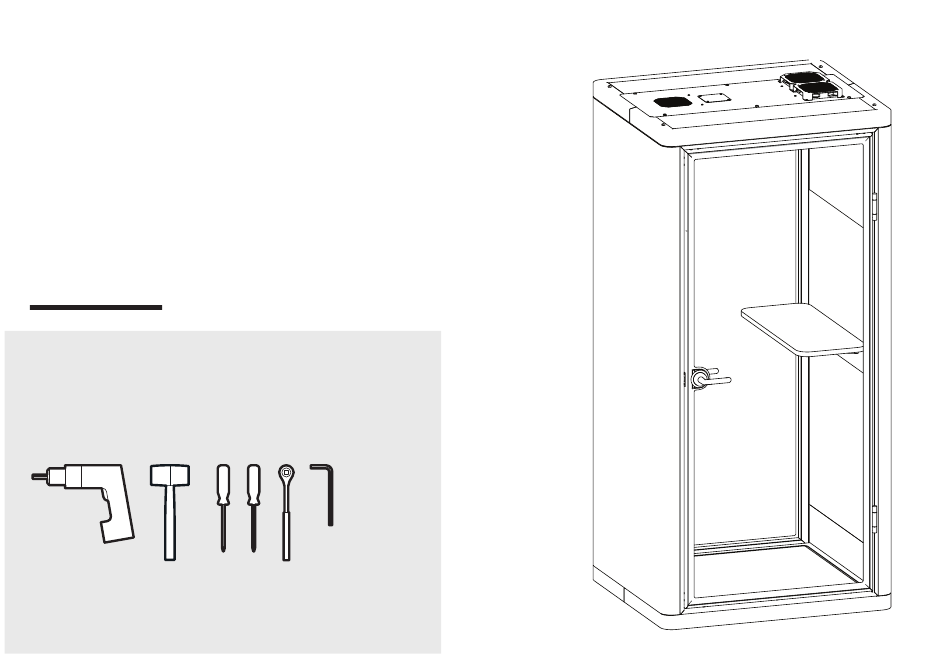

T O O L S R E Q U I R E D
· Drill
· Soft mallet
· Phillips + Flat head screwdriver
· Ratchet with metric socket set
· Allen wrench set
Kimball International
1600 Royal Street
Jasper, IN 47546
©2023 Kimball International, Inc.
CUSTOMER SERVICE
(800) 482-1717
UL_V02 _Sep2022
PA G E 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Om Stand and is the answer not in the manual?

Questions and answers

Related Manuals for Kimball Om Stand

Summary of Contents for Kimball Om Stand

  • Page 1 · Soft mallet · Phillips + Flat head screwdriver · Ratchet with metric socket set · Allen wrench set Kimball International CUSTOMER SERVICE 1600 Royal Street (800) 482-1717 Jasper, IN 47546 ©2023 Kimball International, Inc. UL_V02 _Sep2022 PA G E 1...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using an electrical furnishing, basic precautions should always be followed, including the following: Read all instructions before using this Pod . DANGER To reduce the risk of electric shock: Mount only approved work surfaces and secondary surfaces in accordance with instructions.
  • Page 3 Om Stand I N S T R U C T I O N S F O R U S E & M A I N T E N A N C E P O D I N T E R I O R...
  • Page 4 Om Stand C A R T O N P L A N Glass Door Frame Floor Back Glass Frame Side Wall Side Wall + Electric Floor Tile Ceiling Floor Finishing Panels Tool Box 82.3” 29.5” Work Surface + Frame 44.5”...
  • Page 5 Om Stand T O O L B O X C O N T E N T S · S C R E W S Interior Handle M8x60 QTY. QTY. M8x40 Handle Bezel Power cord QTY. QTY. QTY. M8x80 Handle Trim QTY.
  • Page 6 Om Stand FA S T E N E R S + C O M P O N E N T S Floor Ceiling QTY. QTY. Side Wall + Electric Work Surface Frame QTY. QTY. Back Glass Frame Work Surface QTY.
  • Page 7 Om Stand · Remove the face plate from the side wall + electric and set aside to reinstall later Face plate PA G E 5...
  • Page 8 Om Stand · Expose the cable connectors from the wall and floor sections · Make the electrical and data cable connections · Attach the side wall + electric to the floor 1 x4 PA G E 6...
  • Page 9 Om Stand · Intall the back glass panel 2 x9 PA G E 7...
  • Page 10 Om Stand · Connect the electrical harness · Reinstall the face place, isolating electrical wires from data cables · Connect the data cables HEADS UP! · Electrical and data cables must be isolated · Failure to install this component can result in...
  • Page 11 Om Stand · Fit the bezel and trim between the door handle and door · Use the two screws provided to secure the handle 5 x2 EXTERIOR PA G E 9...
  • Page 12 Om Stand PA G E 1 0...
  • Page 13 Om Stand 2 x9 PA G E 1 1...
  • Page 14 Om Stand 2 x12 PA G E 1 2...
  • Page 15 Om Stand 1 x4 PA G E 1 3...
  • Page 16 Om Stand HEADS UP! · Remove grommet from the side wall · Pull connectors through opening · Make the electrical connections and install the ceiling PA G E 1 4...
  • Page 17 Om Stand · Install the ceiling · Screw door and window frames to the ceiling 2 x6 PA G E 1 5...
  • Page 18 Om Stand 3 x4 PA G E 1 6...
  • Page 19 Om Stand HEADS UP! · Ensure that A/C power, light, and fan are in working order · If failure, recheck all connection points · If all components function, move to next phase of assembly HEADS UP! Ensure that A/C power, light, and fan are in working order.
  • Page 20 Om Sit · Remove the top left corner screw from the panel · Install the top left hole of the work surface bracket HEADS UP! · Remove only the screw shown; remove both screws and the wall panel will fall out of place 4 x 1 PA G E 1 8...
  • Page 21 Om Stand · Remove the top right screw from the panel · Install the Work Surface Bracket with the remaining three screws HEADS UP! · Dispose of the two screws removed from the wall 4 x 3 PA G E 1 9...
  • Page 22 Om Stand · Attach the work surface 5 x4 PA G E 2 0...
  • Page 23 Om Stand · Press the finishing panels in place PA G E 2 1...
  • Page 24 Om Stand · Use an allen wrench to disengage the glides · Roll the Pod to it’s desired location · Adjust each of the 4 glides, leveling the Pod so that the seams and shadow lines are square PA G E 2 2...
  • Page 25 Om Stand · Install the floor tile Floor cap PA G E 2 3...
  • Page 26 Om Stand CEILING EXTERIOR VIEW HEADS UP! SPRINKLER COVER PANEL REMOVED Sprinkler Installation Optional · Unplug the power cord · Remove the cover plate 17 ½” · Drill a pilot hole from the exterior · Use a 2 3/8” hole saw from interior Fans ·...
  • Page 27 Om Stand · Plug in the Pod PA G E 2 5...
