Kimball Definition Keyhole Top Assembly Instructions

Definition ®
Keyhole Top, U Top, and P Top

Tools Required

Tape Measure
#2 Phillips Head Bit

Hardware Required

#8 x " Flathead
#8 x " Panhead

Installation

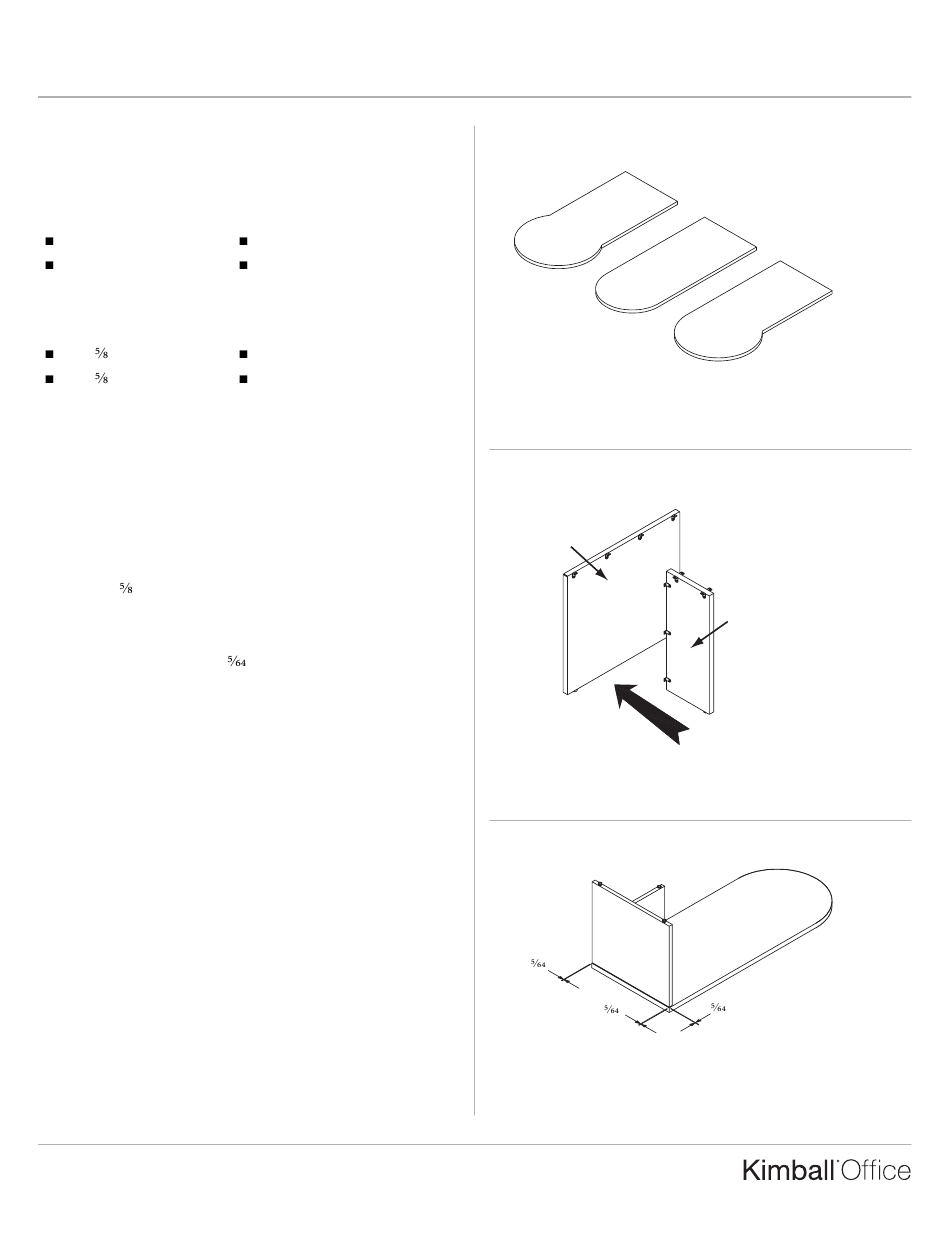

1. Keyhole tops, U tops or P tops can be configured either as
work returns or as desking elements. These tops should
never be used as freestanding furniture. (Figure A).
2. To assemble the T-leg end panel, attach the brackets to
the end panels, then attach brackets to support panel using
the #8 x " flathead screws provided. (Figure B).
3. To install the end panel, place worksurface on a clean, soft
surface, underside facing up. The end panel should be
located with a margin of
back. (Figure C).
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part No. 1741611 Revision D-04
Screw Gun
Level
#8 x 1" Flathead
Bracket
" around the front, side, and
Casegoods Assembly Instructions
Figure A
Keyhole Top
Figure B
End Panel
Figure C
"
"
Page 1 of 2
U Top
P Top
Support Panel
"
