Microscan MS-2 User Manual page 17

Autoconnect
St e p 5 — Aut oc onne c t

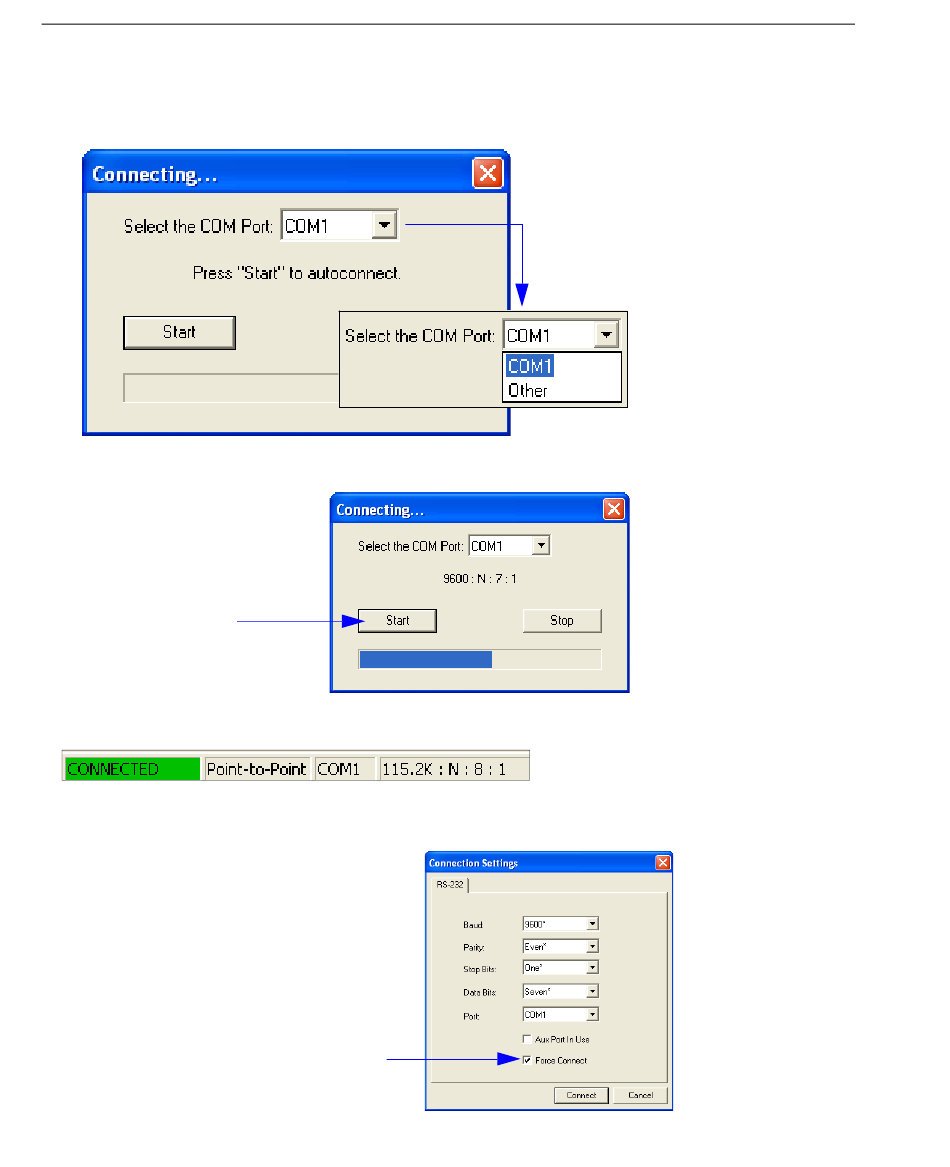

• Click Start when the Autoconnect dialog appears.
• If your communications port is not the default COM1, use the dropdown menu to change
your port.
• Once you have chosen
the correct port, click
Start to connect.
When you are connected, you will see the green connection indicator in the status bar at
the bottom right of your screen:
• If the connection attempt fails, click the Autoconnect button, select a different communications
port, and try again.
Note: If your RS-232 or USB host
settings cannot be changed to match
the reader's settings, select Connect
from the Connect dropdown menu
on ESP's menu toolbar. When the
Connection Settings dialog
appears, check the Force Connect
box and click the Connect button.
1-6
MS-2 CCD Reader User's Manual
