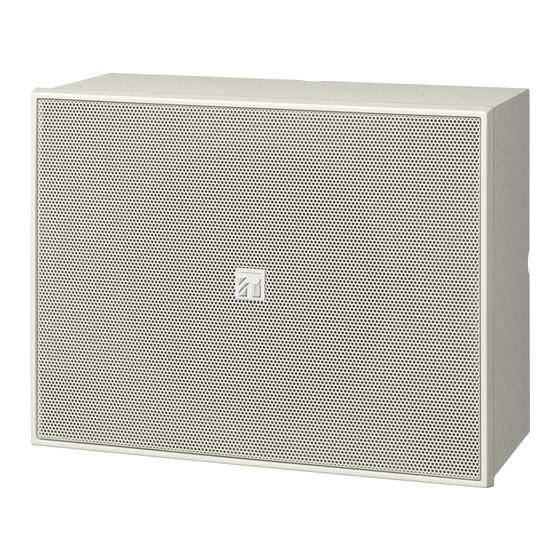

Ip wall-mounted speaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User's manual
IP Wall-mounted Speaker
BS-P678IP1
Thanks for your purchase of TOA products IP-1000 series.
Please read the manual carefully to ensure the machine operating in long time and fault-free.
TOA Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BS-P678IP1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa BS-P678IP1

Summary of Contents for Toa BS-P678IP1

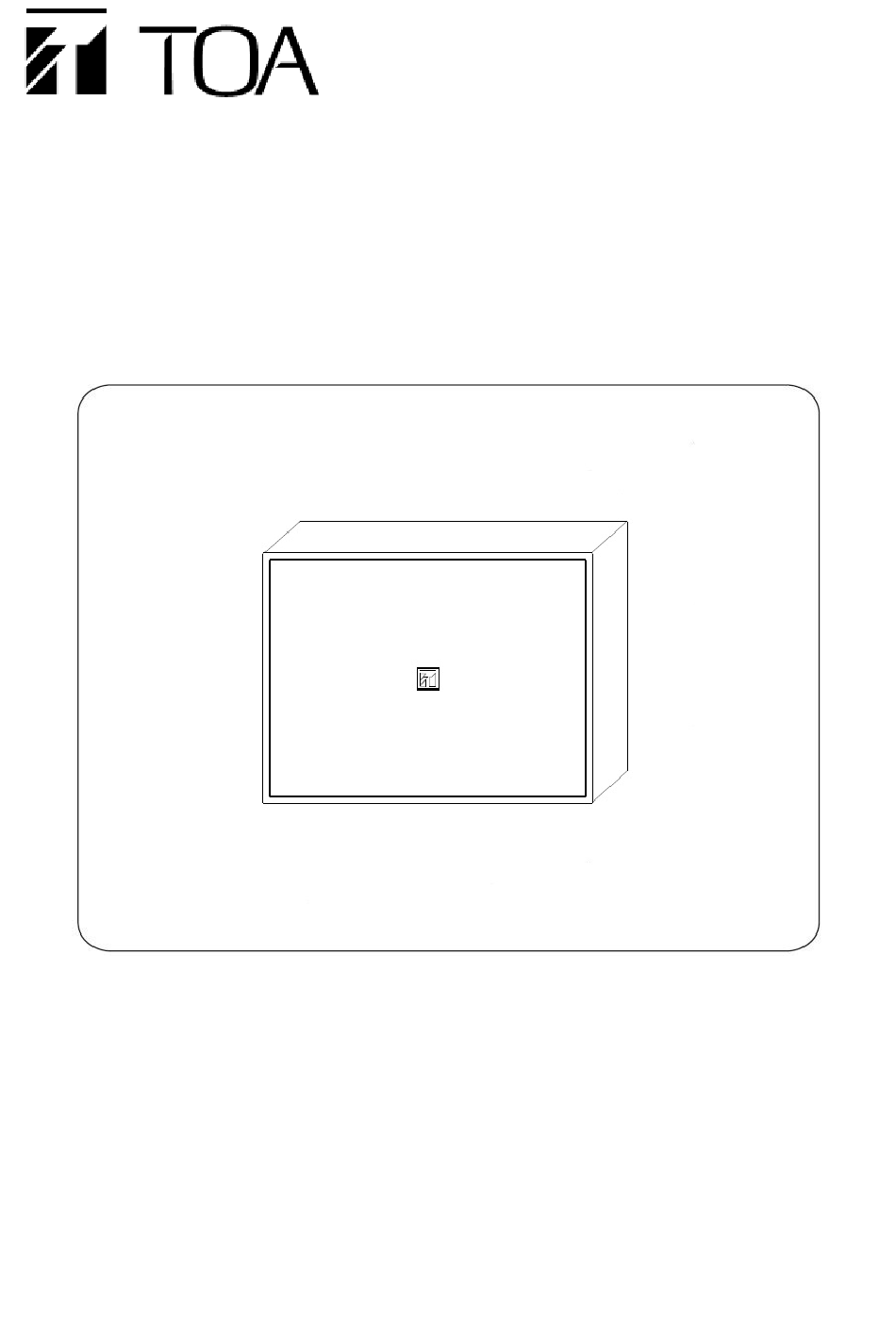

  • Page 1 User’s manual IP Wall-mounted Speaker BS-P678IP1 Thanks for your purchase of TOA products IP-1000 series. Please read the manual carefully to ensure the machine operating in long time and fault-free. TOA Corporation...
  • Page 2 Chapter 1 Safety precaution...

  • Page 3: Chapter 1: Safety Precaution

    Chapter 1: safety precaution Please abide by the warning and the relevant safety tips. Please place this manual in convenient place after you reading the guide for future reference. Warning The sign means there is potential safety hazard, when operate wrong may result in death or serious injury.
  • Page 4 Chapter 2 Products description...

  • Page 5: Chapter 2: Products Description

    Chapter 2: products description 2.1Summary 2.1 Summary BS-P678I is an IP wall-mounted speaker, which can receive broadcast from other devices or servers. It supports system setting via browser with loop detection function to check the speaker, and to select sound source at the same time. ...

  • Page 6: Connector Description

    Chapter 2: products description 2.2 Connector description ①Amplifier output connector: connector color is black, specification is 3.81-2P, connecting external speaker, when the speaker receives the broadcasting, the same sound can be heard from the speaker. The Rated impedance: 8Ω, the rated output power:10W The "+"...
  • Page 7 Chapter 3 Wiring...
  • Page 8 Chapter 3: wiring 3.1 Wiring 3.1 .1 BS-P678IP1 Wiring diagram Note: 2P green conntector is for line input, 2P black conntector is for amplifier output. 3.1.2 BS-P678E wiring diagram (1) Separating the cover and the back shell, the specific steps please refer to P3-2.

  • Page 9: Installation Description

    Step 3: the mask is re-installation on the shell. Note: When the angle of the speaker and trademark is different, please pull up it gently and turning it to the appropriate location. Note：BS-P678E and BS-P678IP1 is in the same installation.
  • Page 10 Chapter 3: wiring 3.3 Reference size 3.3Reference size (unit: mm)
  • Page 11 Chapter 4 System setting via browser...
  • Page 12 Chapter 4: system setting via browser 4.1 Entering browser 4.1Entering the browser Step 1: Please input: IP address of the speaker (factory defaults is 192.168.1.101), then press Enter. Step 2: Please input the user name and password in the login window of the Web page ( the defaults is admin).

  • Page 13: Network Parameters

    Chapter 4: system setting via browser 4.2 Network parameters 4.2 Network parameters Identify the unique number of the speaker and it can’t be repeated with Device number other devices or hosts. IP address IP address of speaker The defaults port number is 2046, please don’t modify it if not in Device port specially situation.

  • Page 14: Audio Parameters

    Chapter 4: system setting via browser 4.3 Audio parameters 4.3 Audio parameters Broadcast coding, PCM means no data be compressed, ADPCM Coding mode means packed data (low network data value). Line input volume The volume of audio line input In order to avoid circuit and sound source noise, when the line input audio range is smaller than the value (line input threshold value), it will Line input...

  • Page 15: Web Management

    Chapter 4: system setting via browser 4.4 Web management 4.4 Web management You can modify the account number and password in the Web management parameters.
  • Page 16 Chapter 4: system setting via browser 4.5 Restarting device 4.5 Restarting device User can click “restart device” to restart the speaker.

  • Page 17: Chapter 4: System Settings Via Browser

    Chapter 4: system settings via browser 4.6 resetting to defaults 4.6 Resetting to defaults resetting to defaults: all the parameters will reset to defaults.

  • Page 18: Firmware Upgrade

    Chapter 4: system setting via browser 4.7Firmware upgrade 4.7Firmware upgrade clicking “into the firmware upgrade mode” to enter the firmware upgrade interface. Click browse in the upgrade firmware interface, please select the correct upgrade files, click on "upgrade", it will automatically restart after completed the upgrade.

  • Page 19: System Log

    Chapter 4: system setting via browser 4.8 System log 4.8 System log Browser the log of the speaker in the Web page, clicking “delete all logs”, all logs can be deleted in the Web page.
  • Page 20 Chapter 5 Appendix...

  • Page 21: Chapter 5: Appendix

    Chapter 5: appendix 5.1 Specification 5.1.1 IP Wall-mounted Speaker BS-P678IP1 Model number BS-P678IP1 Loudspeaker assembly 6 "(16 cm) double cone type Power DC24V / 1A Power consumption (static 1.85W power) 8Ω，10W Load impedance SPL （1m/1w） 94dB Frequency response 150-20,000Hz Input terminal...
