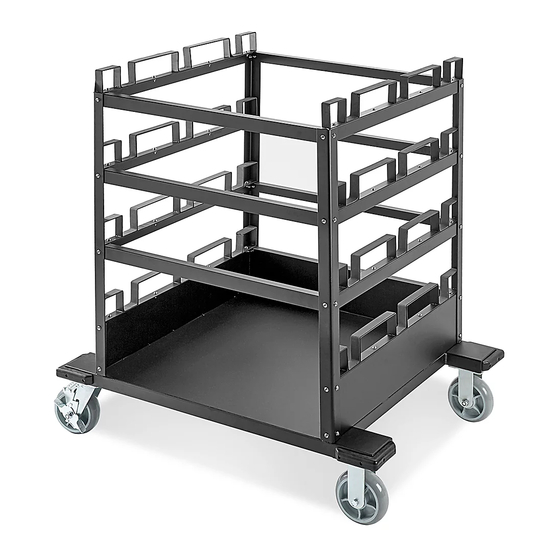

Crowd control cart
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Available languages

Available languages

Table of Contents

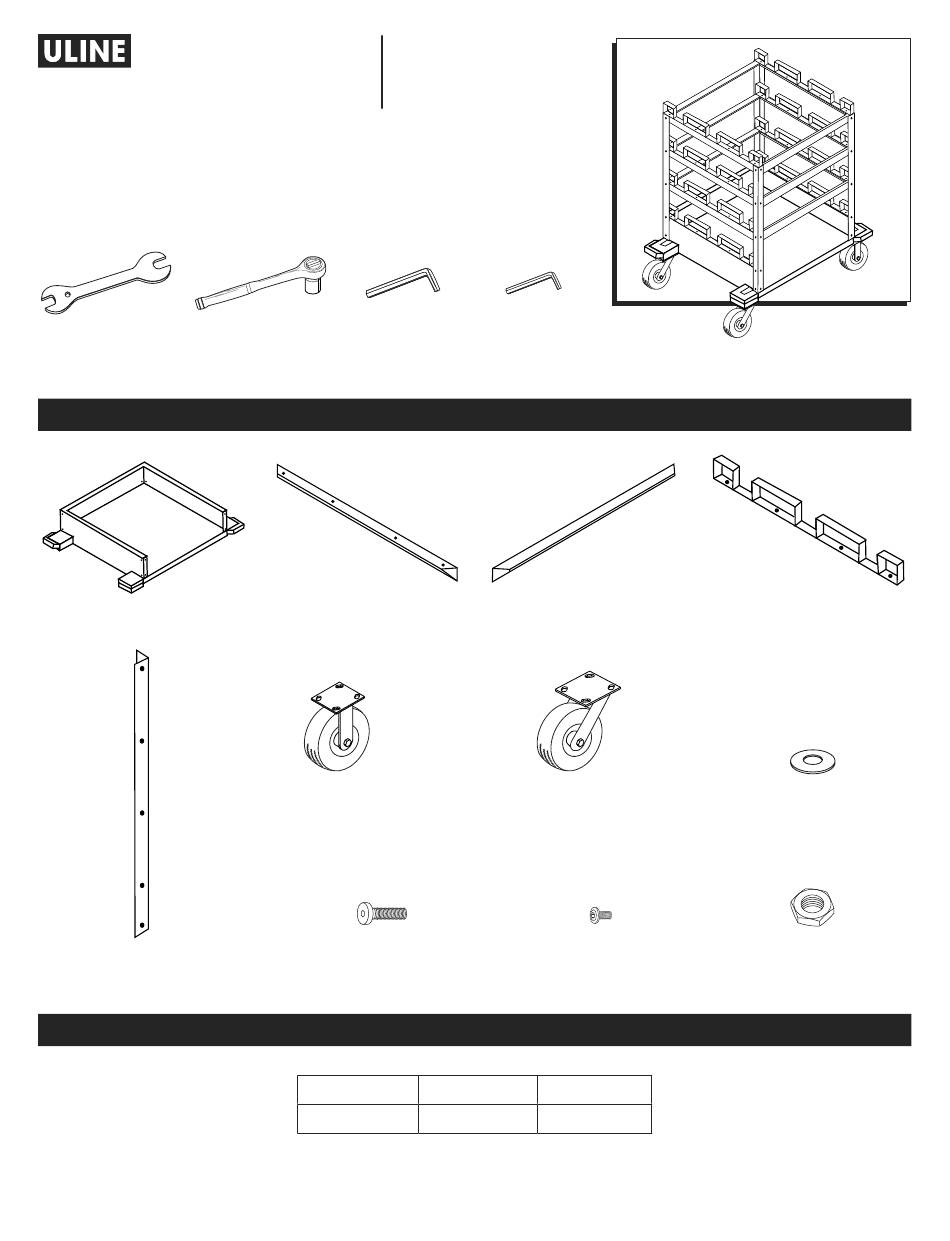

H-6601
CROWD CONTROL CART
TOOLS NEEDED
10 mm/12 mm Wrench
10 mm Socket Wrench
(Included)
(Recommended)
Storage Tray x 1
Upright Support Beam x 4
PAGE 1 OF 9
1-800-295-5510
uline.com
M10 x 25 mm
Allen Wrench
(Included)
PARTS
Crossbar with
Screw Holes x 6
Caster x 2
25 mm Bolt x 16
SPECIFICATIONS
CAPACITY
DIMENSIONS
12 Barriers
54 x 31 x 31"
Pour le français, consulter les pages 7-9.
M6 x 15 mm
Allen Wrench
(Included)
Crossbar without
Center Screw Holes x 6
Locking Caster x 2
15 mm Bolt x 72
WEIGHT
154 lbs.
Para Español, vea páginas 4-6.
Post Rack x 8
Washer x 72
Nut x 72
0521 IH-6601

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-6601 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U-Line H-6601

Summary of Contents for U-Line H-6601

  • Page 1 Para Español, vea páginas 4-6. Pour le français, consulter les pages 7-9. H-6601 1-800-295-5510 uline.com CROWD CONTROL CART TOOLS NEEDED M10 x 25 mm M6 x 15 mm 10 mm/12 mm Wrench 10 mm Socket Wrench Allen Wrench Allen Wrench...
  • Page 2 ASSEMBLY Flip storage tray on its side. 5. The base of the storage tray has three walls. The side that does not have a wall on the storage tray should 2. Using 25 mm bolts, attach casters to storage tray. be faced forward.
  • Page 3 ASSEMBLY CONTINUED Using 15 mm bolts, attach post racks to crossbars with 8. Tighten bolts on all 12 crossbars and 8 post racks. screw holes. Do not fully tighten bolts. (See Figure 5) (See Figure 6) Figure 6 Figure 5 Post Rack 1-800-295-5510 uline.com...

  • Page 4: Herramientas Necesarias

    H-6601 800-295-5510 uline.mx CARRITO PARA CONTROL DE MULTITUDES HERRAMIENTAS NECESARIAS Llave Allen Llave Allen Llave de Matraca de 10 mm M10 x 25 mm M6 x 15 mm 10 mm/12 mm (Recomendada) (Incluida) (Incluida) (Incluida) PARTES 1 Bandeja de 6 Travesaños con 6 Travesaños sin Orificios...
  • Page 5 ENSAMBLE 1. Voltee de lado la bandeja de almacenamiento. 5. La base para la bandeja de almacenamiento consta de tres paredes. El lado sin pared en la 2. Fije las ruedas a la bandeja de almacenamiento bandeja deberá quedar al frente. Con los pernos utilizando los pernos de 25 mm.
  • Page 6 CONTINUACIÓN DE ENSAMBLE Con los pernos de 15 mm, fije los racks para postes 8. Apriete los pernos de los 12 travesaños y los 8 racks a los travesaños con orificios para tornillo. No para postes. (Vea Diagrama 6) apriete totalmente los pernos. (Vea Diagrama 5) Diagrama 6 Diagrama 5 Rack para...

  • Page 7: Outils Requis

    H-6601 1-800-295-5510 uline.ca CHARIOT POUR SYSTÈME DE CANALISATION DES FOULES OUTILS REQUIS Clé Allen Clé Allen Clé de 10-12 mm Clé à douille de 10 mm M10 de 25 mm M6 de 15 mm (incluse) (recommandée) (incluse) (incluse) PIÈCES Plateau de rangement x 1...
  • Page 8 ASSEMBLAGE 1. Couchez le plateau de rangement sur le côté. 5. La base du plateau de rangement a trois rebords. Le côté qui n'a pas de rebord doit faire face à 2. À l'aide des écrous de 25 mm, fixez les roulettes l'avant.
  • Page 9 MONTAGE SUITE 7. À l'aide de boulons de 15 mm, fixez les supports 8. Serrez les boulons des 12 barres transversales et des de poteaux aux barres transversales avec les trous 8 supports de poteaux. (Voir Figure 6) de vis. Ne serrez pas complètement les boulons. (Voir Figure 5) Figure 6 Figure 5...
