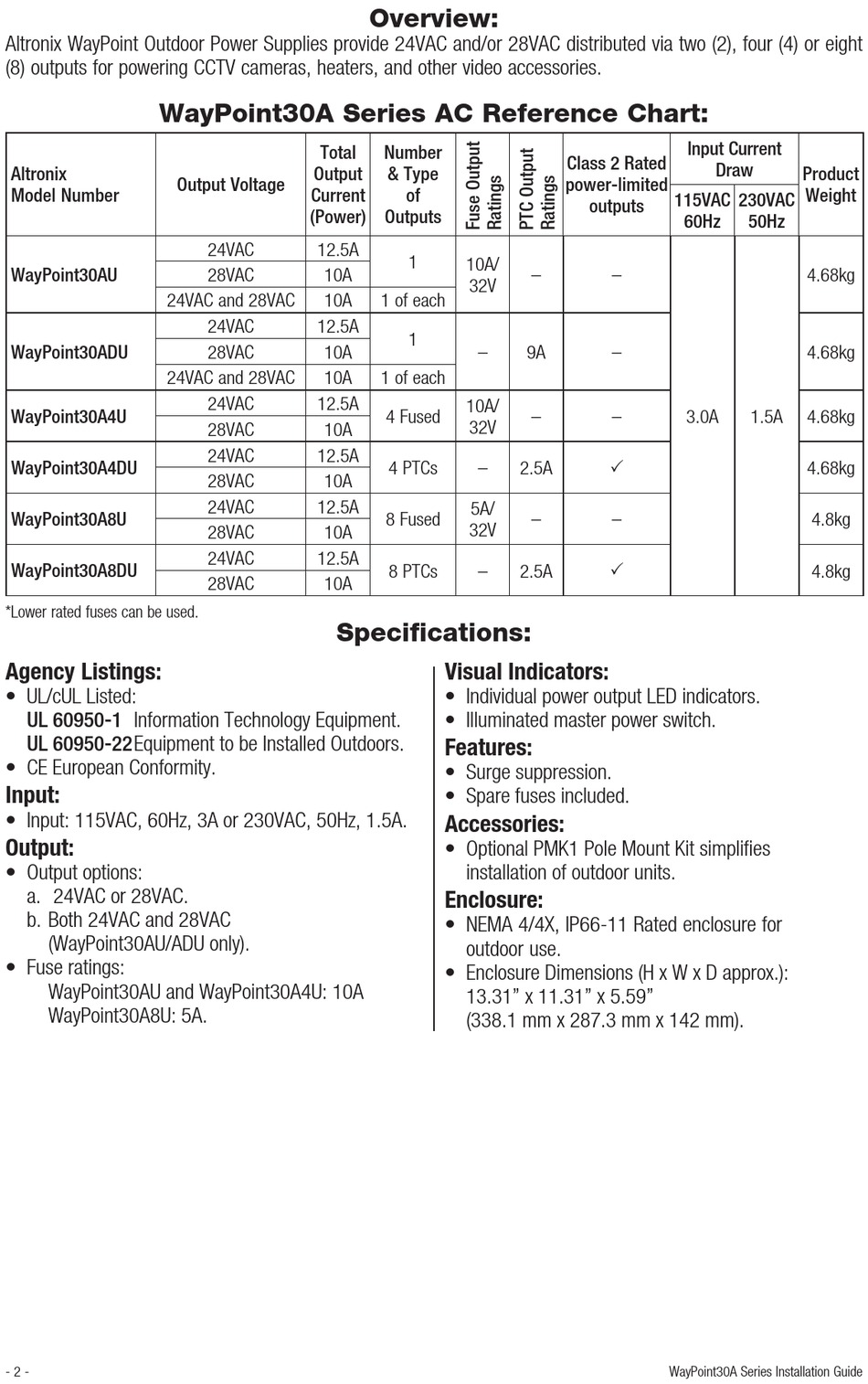

Specifications - Altronix WayPoint30A Series Installation Manual

Altronix WayPoint Outdoor Power Supplies provide 24VAC and/or 28VAC distributed via two (2), four (4) or eight
(8) outputs for powering CCTV cameras, heaters, and other video accessories.
WayPoint30A Series AC Reference Chart:
Altronix
Model Number
WayPoint30AU
24VAC and 28VAC
WayPoint30ADU
24VAC and 28VAC
WayPoint30A4U
WayPoint30A4DU
WayPoint30A8U
WayPoint30A8DU
*Lower rated fuses can be used.
Agency Listings:
• UL/cUL Listed:
UL 60950-1 Information Technology Equipment.
UL 60950-22 Equipment to be Installed Outdoors.
• CE European Conformity.
Input:
• Input: 115VAC, 60Hz, 3A or 230VAC, 50Hz, 1.5A.
Output:
• Output options:
a. 24VAC or 28VAC.
b. Both 24VAC and 28VAC
(WayPoint30AU/ADU only).
• Fuse ratings:
WayPoint30AU and WayPoint30A4U: 10A
WayPoint30A8U: 5A.
- 2 -
Total
Output
Output Voltage
Current
(Power)
24VAC 12.5A
28VAC 10A
10A
24VAC 12.5A
28VAC 10A
10A
24VAC 12.5A
28VAC 10A
24VAC 12.5A
28VAC 10A
24VAC 12.5A
28VAC 10A
24VAC 12.5A
28VAC 10A

Specifications:

Overview:
Number
& Type
of
Outputs
1
10A/
–
32V
1 of each
1
– 9A
1 of each
10A/
4 Fused –
32V
4 PTCs – 2.5A
5A/
8 Fused –
32V
8 PTCs – 2.5A
Visual Indicators:
• Individual power output LED indicators.
• Illuminated master power switch.
Features:
• Surge suppression.
• Spare fuses included.
Accessories:
• Optional PMK1 Pole Mount Kit simplifies
installation of outdoor units.
Enclosure:
• NEMA 4/4X, IP66-11 Rated enclosure for
outdoor use.
• Enclosure Dimensions (H x W x D approx.):
13.31" x 11.31" x 5.59"
(338.1 mm x 287.3 mm x 142 mm).
Input Current
Class 2 Rated
Draw
power-limited
115VAC
outputs
60Hz
–
–
– 3.0A
P
–
P
