IP66 protection is guaranteed only when:
• Maximum deviation from the plane surface to
the cut-out is ≤ 0.019 in.
• Thickness of the case where it is mounted to
the equipment is 0.059 in. to 0.23 in.
• Maximum surface roughness where the
gasket is applied is ≤ 0.004 in.

Cabling a display with a single controller

Figure 11 shows the connections made to the
display for power and communications in a single
controller application.

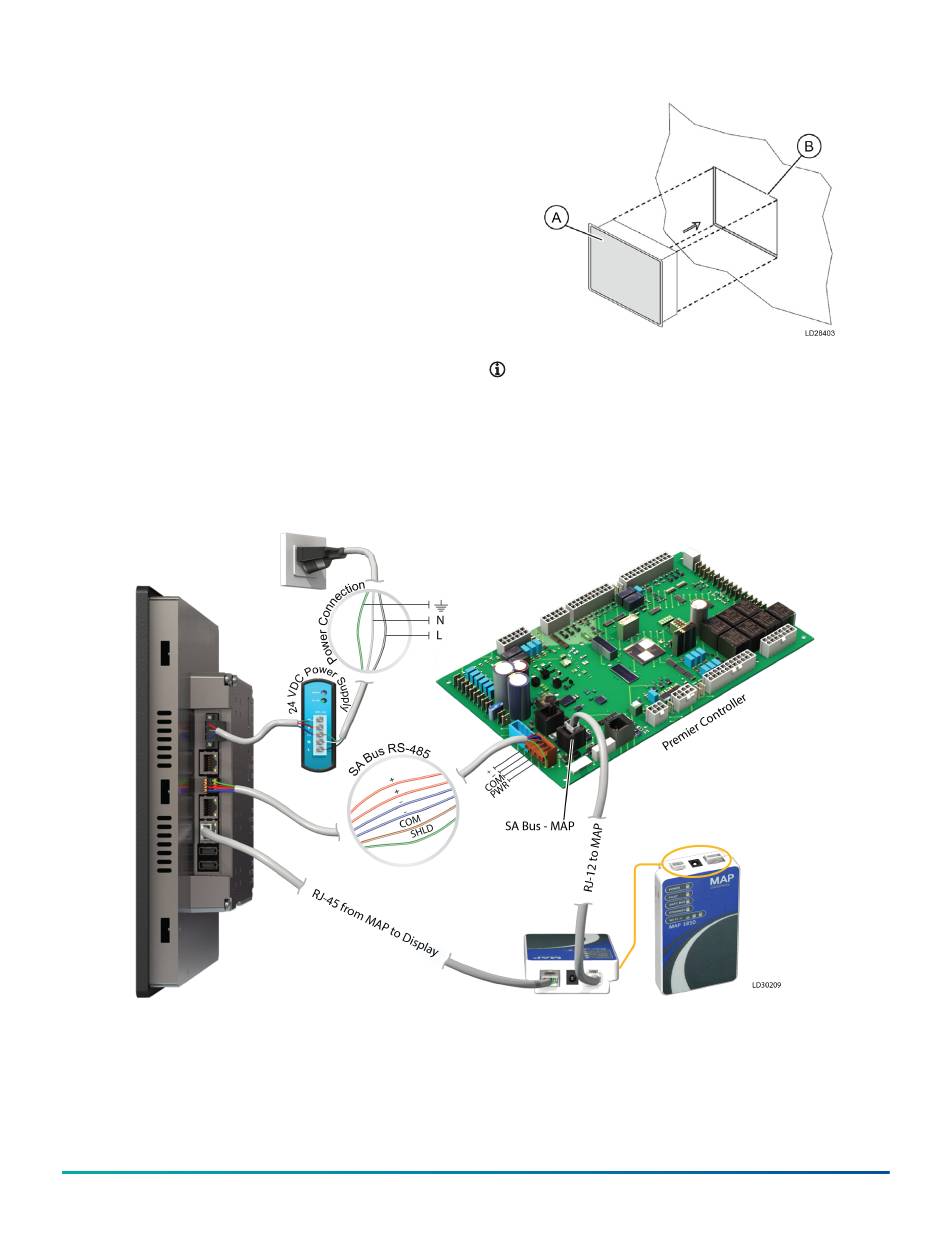

Figure 11: Single controller cable connection
14 Advanced Graphic Touchscreen Display on 25 Ton to 80 Ton Johnson Controls Premier Rooftop Units
Figure 10: Cutout and display clearances
Note: A = Display; B = Installation cutout
