4. Connect a 24 VDC supply voltage to power up
the display.
Note: Multiple field bus device
integration with the display is only
available on a common FC bus. For
cable type requirements and distance
limitations, refer to Table 15 .

Detailed procedures

Mount display on a wall or in a remote
panel
Note: A display enclosure is required to mount
the display on a wall or in a remote panel. Refer
to Table 14.

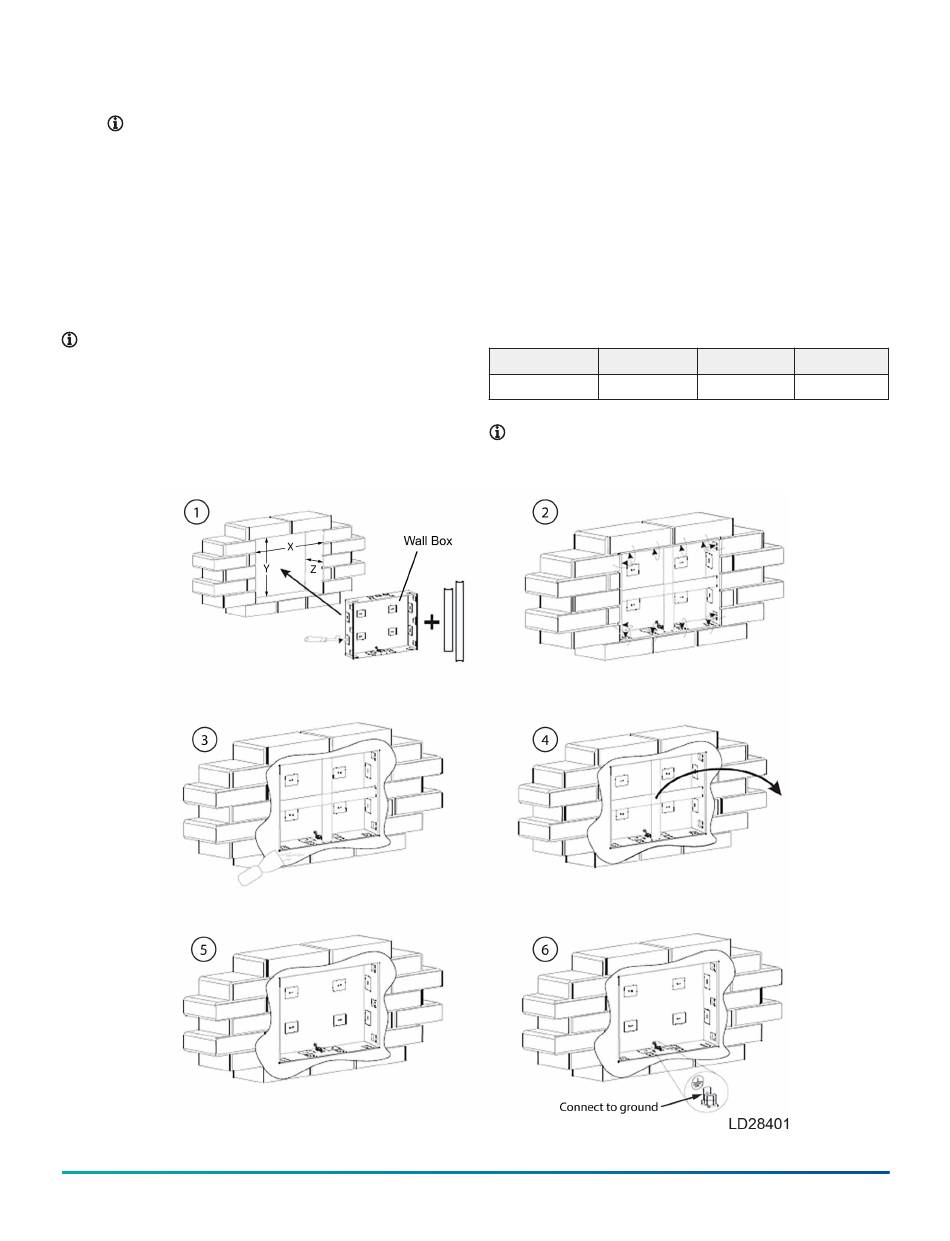

Figure 8: Wall-mounting the Display
12 Advanced Graphic Touchscreen Display on 25 Ton to 80 Ton Johnson Controls Premier Rooftop Units
To mount the display on a wall:
1. Find an easily accessible location where
wire connections can be made and display
parameters can be viewed from a floor level.
Mount the display box on a dry surface. Avoid
prolonged exposure to direct sunlight to
prevent the risk of overheating the device.
2. Drill appropriate holes for the wall-mounting
box using the dimensions shown in Figure 8.
3. Attach the wall-mounting box to the wall
using the screws provided in the wall
mounting kit.
4. Place the display in the box.
Cutout
BOX710-01
Note: Dimension in inches (mm).
Johnson Controls
X Y
11.57 (294) 8.26 (210)
Z
3.38 (86)
