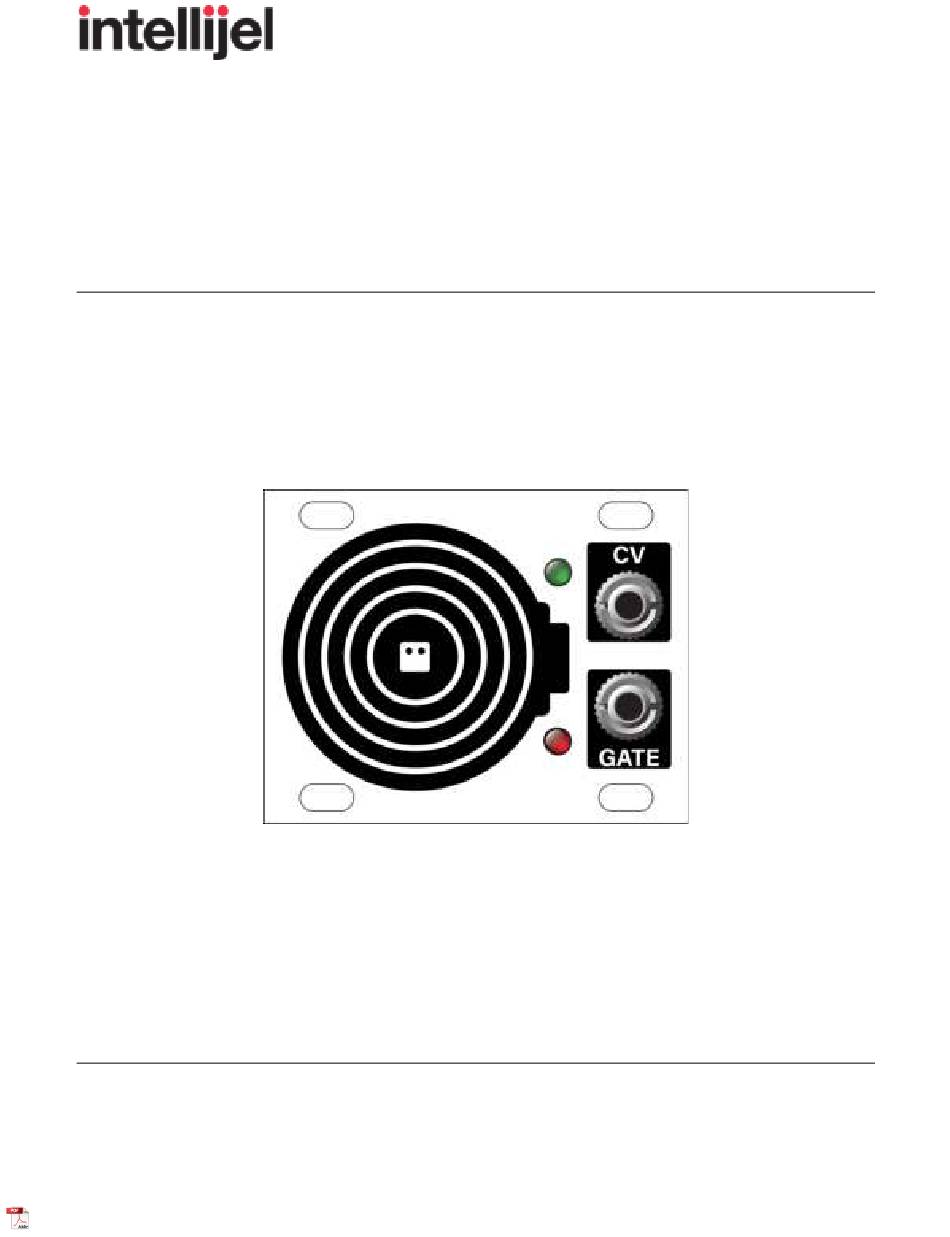

- Page 1 FSR 1U Force Sensing CV and Gate Generating Pad Manual (English) Revision: 2021.07.26...
-
Page 2: Table Of Contents
TABLE OF CONTENTS COMPLIANCE INSTALLATION Before Your Start Installing Your Module FRONT PANEL Controllers & LEDs Inputs & Outputs TECHNICAL SPECIFICATIONS FSR 1U Manual... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. -
Page 4: Installation
Before You Start Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free power header and sufficient available capacity to power the module: ●... -
Page 5: Installing Your Module
Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: If you are using another manufacturer’s power... - Page 6 You should immediately check that all your modules have powered on and are functioning correctly. If you notice any anomalies, turn your system off right away and check your cabling again for mistakes. FSR 1U Manual...
-
Page 7: Front Panel
. Pressing very lightly sends voltages near 0V. Maximum pressure outputs +5V. GATE out - This jack outputs +5V gate signal for as long as the FSR is touched, returning to 0V when you lift your finger off the pad. FSR 1U Manual... -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Width 10 hp Maximum Depth 23 mm Current Draw 24 mA @ +12V 9 mA @ -12V FSR 1U Manual...
