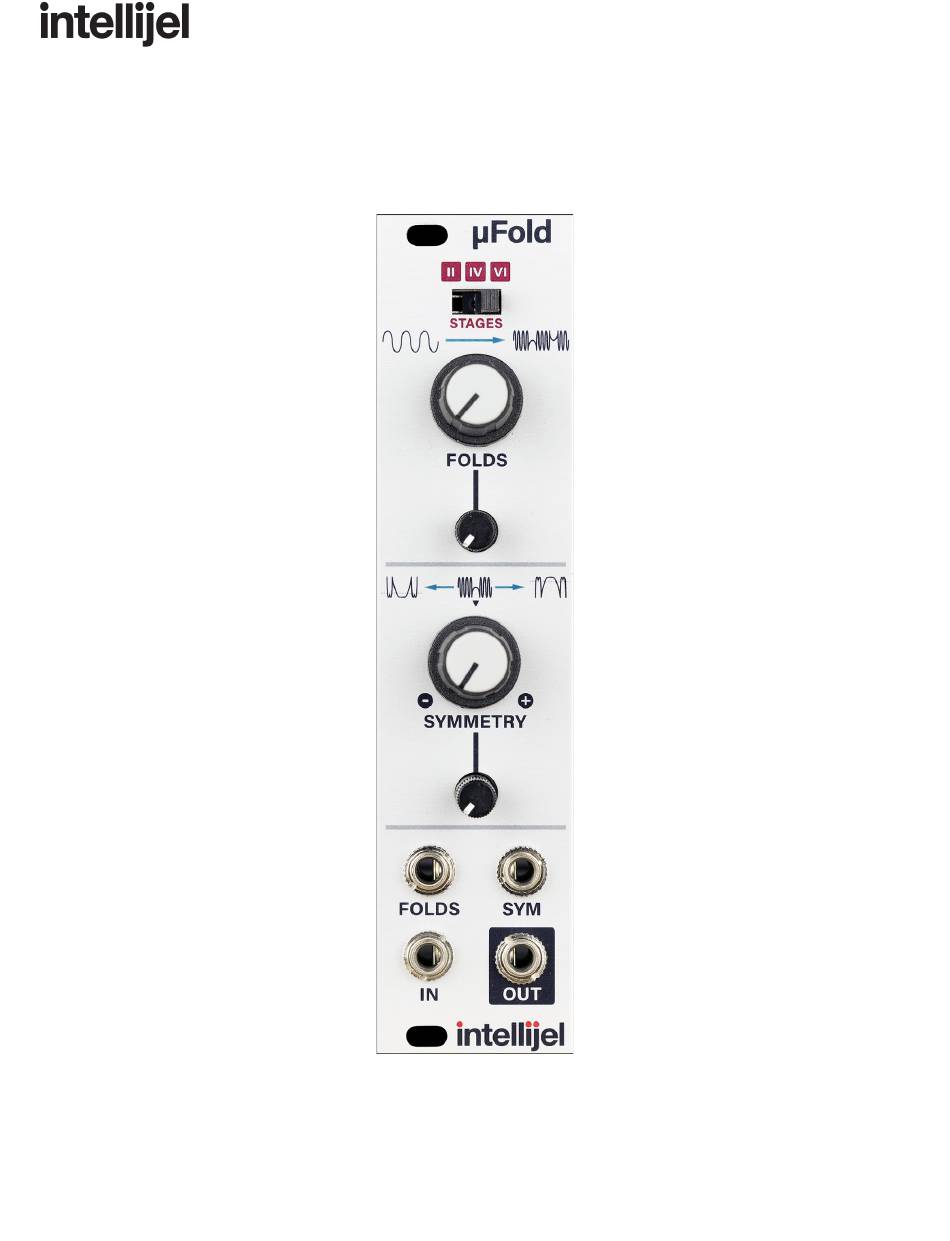

- Page 1 µFold Manual µFold Wavefolder / Waveshaper Manual Revision: 2018.09.13 ...
-
Page 2: Table Of Contents
µFold Manual Table of Contents Table of Contents Compliance Installation Installing Your Module Overview Features Front Panel: Controls Front Panel: Inputs & Outputs Trim Pots Technical Specifications Page 1 ... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a ... -
Page 4: Installation
Installation Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free ... - Page 5 Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: ...
-
Page 6: Overview
Combining a µFold with one of the Intellijel Dixie oscillators and either the Rubicon or Rubicon enables you to achieve the extremely rich palette of sounds normally associated with complex ... -

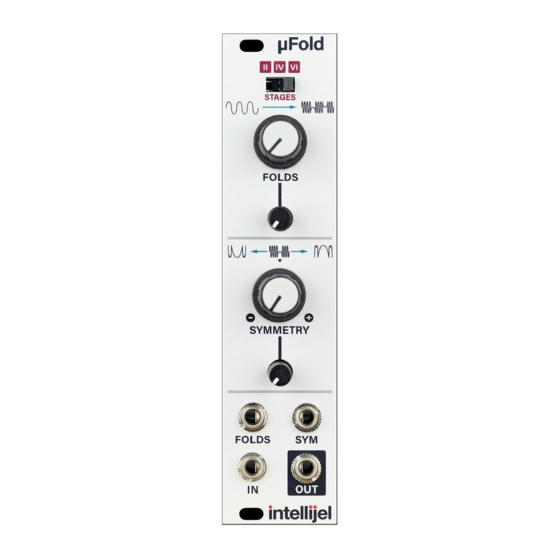

Page 7: Front Panel: Controls
µFold Manual Front Panel: Controls 1. FOLDS - Rotating the knob clockwise increases the gain of the signal present at the IN jack. The greater the amount of gain, the more (and more often) the waveform is folded. When set fully counterclockwise, no folding occurs. - Page 8 µFold Manual 2. FOLDS attenuator - You can modulate the FOLDS amount with a control signal patched into the FOLDS input. The FOLDS attenuator adjusts the extent to which that control signal is added to the value set with the FOLDS knob. 3.
-
Page 9: Front Panel: Inputs & Outputs
µFold Manual The following illustration shows actual oscilloscope photos of how the SYMMETRY setting affects the wavefolding: 4. SYMMETRY attenuator - You can modulate the SYMMETRY amount with a control signal patched into the SYM input. The SYMMETRY attenuator adjusts the extent to which that control signal is added to the value set with the SYMMETRY knob. ... -
Page 10: Trim Pots
µFold Manual Trim Pots The µFold has two trimpots behind the front panel. In general, you should never need to adjust either trimmer. However, should you wish to decrease the module’s maximum fold amount, or if you need to center the ...
