- Page 1 Springray Manual 2 Springray Spring Reverb Manual Revision: 2018.09.13 ...
-
Page 2: Table Of Contents
Springray Manual Table of Contents Table of Contents Compliance Installation Installing Your Module Connecting Tanks Overview Features Front Panel Controls Inputs and Outputs Architecture & Usage Technical Specifications Page 1 ... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a ... -
Page 4: Installation
Installation Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free ... - Page 5 Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: ...
-
Page 6: Connecting Tanks
SEND jack into the INPUT of your reverb tank, and plug the tank’s OUTPUT into the corresponding RTN (return) jack on the Springray . Note that all Springray2 SEND jacks are colored white, and all RTN jacks are colored red. ... - Page 7 Springray Manual The smallest of the three Accutronics tanks does not come with an RCA connecting cable. Instead, it connects to the Springray via two small, keyed connectors on the Springray back panel A connector, as shown below: ...
-
Page 8: Overview
At Intellijel we have a huge love for true analog devices and it has always been important for us to explore as many of these fundamental analog building blocks of synthesis as possible. ... -
Page 9: Front Panel

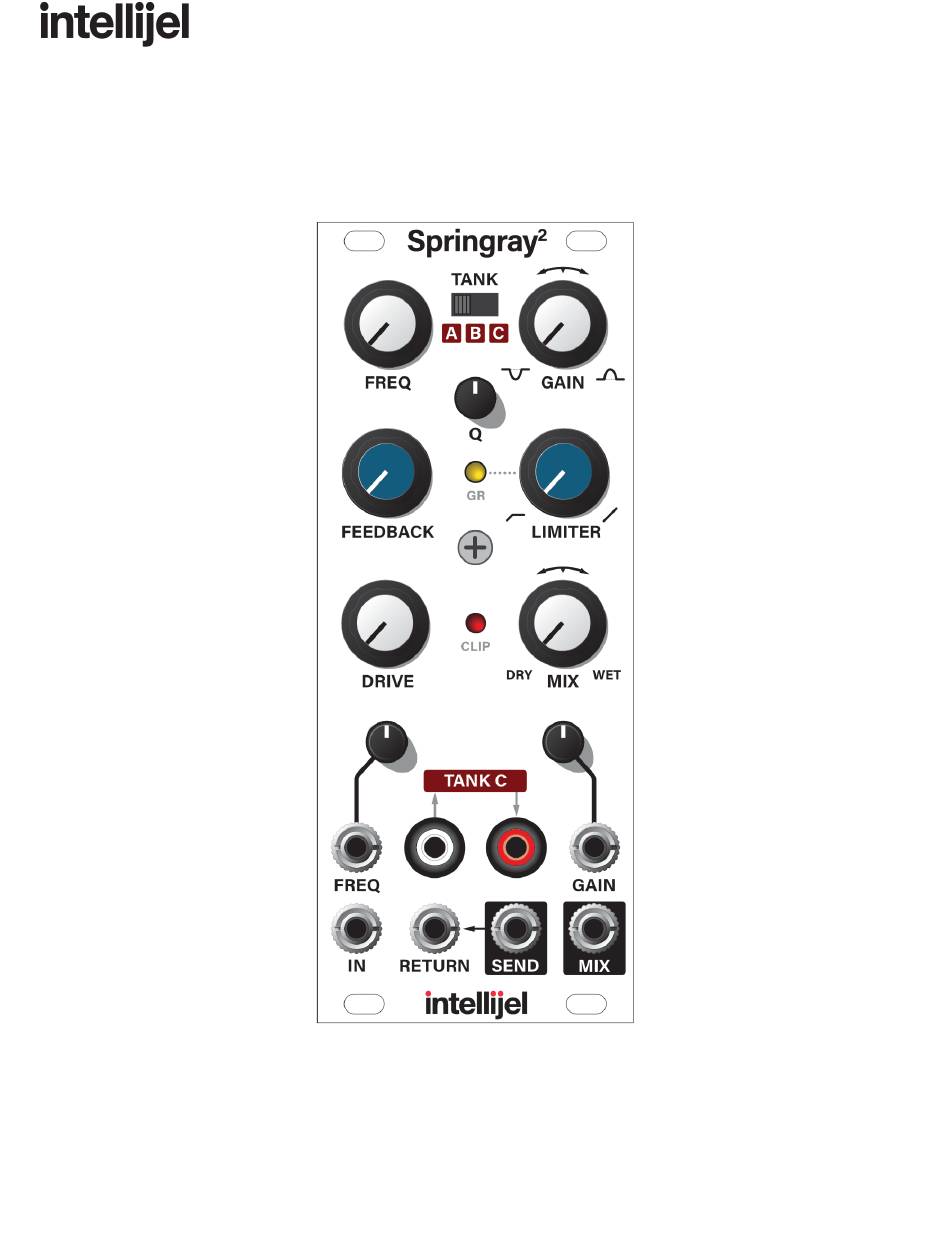

Springray Manual Front Panel Controls TANK - Selects which of three tanks Springray will use. Tank C has its connections on the front of the modules, while Tanks A and B are connected to the back. FREQ - Sets the frequency of the parametric EQ. -
Page 10: Inputs And Outputs
Springray Manual GAIN - Adjusts the amount of boost or cut applied by the parametric EQ. No gain is applied when this knob is pointing straight up in the center detent position. Turning the knob counterclockwise results in a frequency cut;... -
Page 11: Architecture & Usage
TANK switch. Tank C connects to the RCA jacks on the front of the module, while tanks A and B have their connections on the back. Intellijel offers three sizes of tank from Accutronics, each with their own character. The tiny tank is small enough to fit inside ... -
Page 12: Technical Specifications
Springray Manual Technical Specifications Width 10 hp Maximum Depth 42 mm Current Draw 44 mA @ +12V 34 mA @ -12V Page 11 ...
