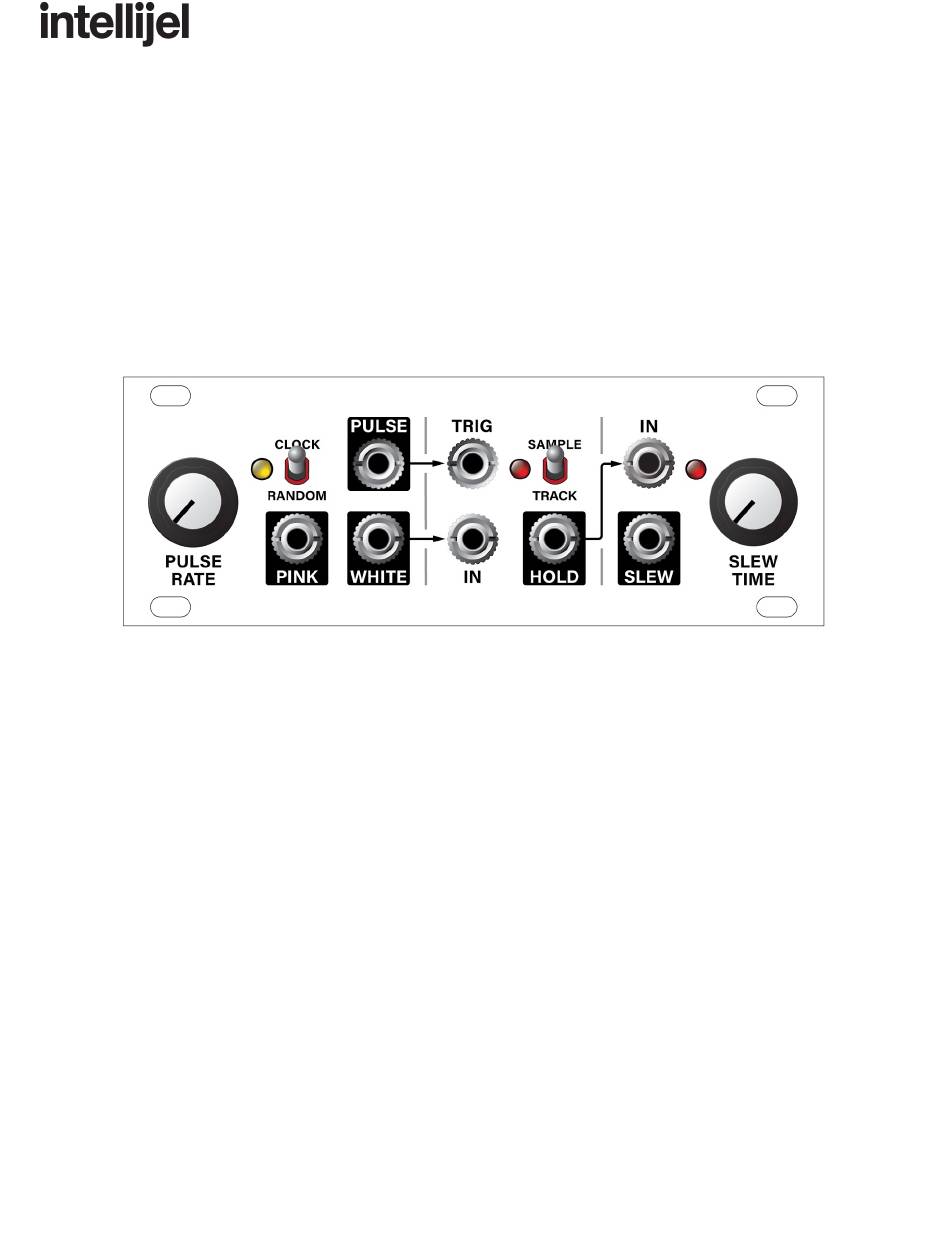

- Page 1 Noise Tools 1U Manual Noise Tools 1U Clock, Random Pulse, Analog Noise, Sample & Hold, and Slew Manual Revision: 2018.09.13 ...
-
Page 2: Table Of Contents
Noise Tools 1U Manual Table of Contents Table of Contents Compliance Installation Before Your Start Installing Your Module Overview Front Panel Controls Inputs and Outputs Technical Specifications Page 1 ... -
Page 3: Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Intellijel Designs, Inc. could void the user’s authority to operate the equipment. Any digital equipment has been tested and found to comply with the limits for a ... -
Page 4: Installation
Before Your Start Intellijel Eurorack modules are designed to be used with a Eurorack-compatible case and power supply. We recommend you use Intellijel cases and power supplies. Before installing a new module in your case, you must ensure your power supply has a free ... -
Page 5: Installing Your Module
Eurorack case. Ensure the red stripe on the cable lines up with the -12V pins on the bus board. On Intellijel power supplies the pins are labelled with the label “-12V” and a thick white stripe: ... - Page 6 Noise Tools 1U Manual Once connected, the cabling between the module and power supply should resemble the picture below: Before reconnecting power and turning on your modular system, double check that the ribbon cable is fully seated on ...
-
Page 7: Overview

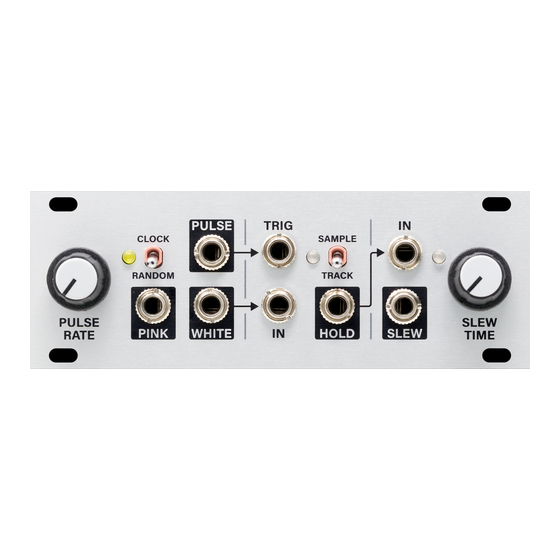

Noise Tools 1U Manual Overview Noise Tools collects and connects a number of practical modular synthesis utilities beneath a single 1U, 22 hp panel. Specifically, it contains: A clock and random pulse source with adjustable rate ... -
Page 8: Front Panel
Noise Tools 1U Manual Front Panel Controls PULSE RATE - Sets the rate at which pulses appear at the PULSE output and (unless you plug an external clock into the TRIG input) determines the sampling/tracking clock ... - Page 9 Noise Tools 1U Manual CLOCK/RANDOM - Sets whether or not the internal clock generates pulses at a steady, metrical rate; or whether it generates pulses at random intervals. The rate at which either mode generates pulses is set by the PULSE RATE knob, described earlier. ...
-
Page 10: Inputs And Outputs
Noise Tools 1U Manual SLEW TIME - Sets how quickly (or slowly) the output voltage responds to a change in input voltage, thus converting any instantaneous voltage changes appearing at the SLEW IN to a gradual “slewed” voltage change at the SLEW OUT. ... - Page 11 Noise Tools 1U Manual D. TRIG - A pulse sent here determines the rate at which the signal appearing at the SAMPLE IN jack is sampled (or tracked). If nothing is plugged into the TRIG input, then ...
-
Page 12: Technical Specifications
Noise Tools 1U Manual Technical Specifications Width 22 hp Maximum Depth 25 mm Current Draw 20 mA @ +12V 15 mA @ -12V Page 11 ...
