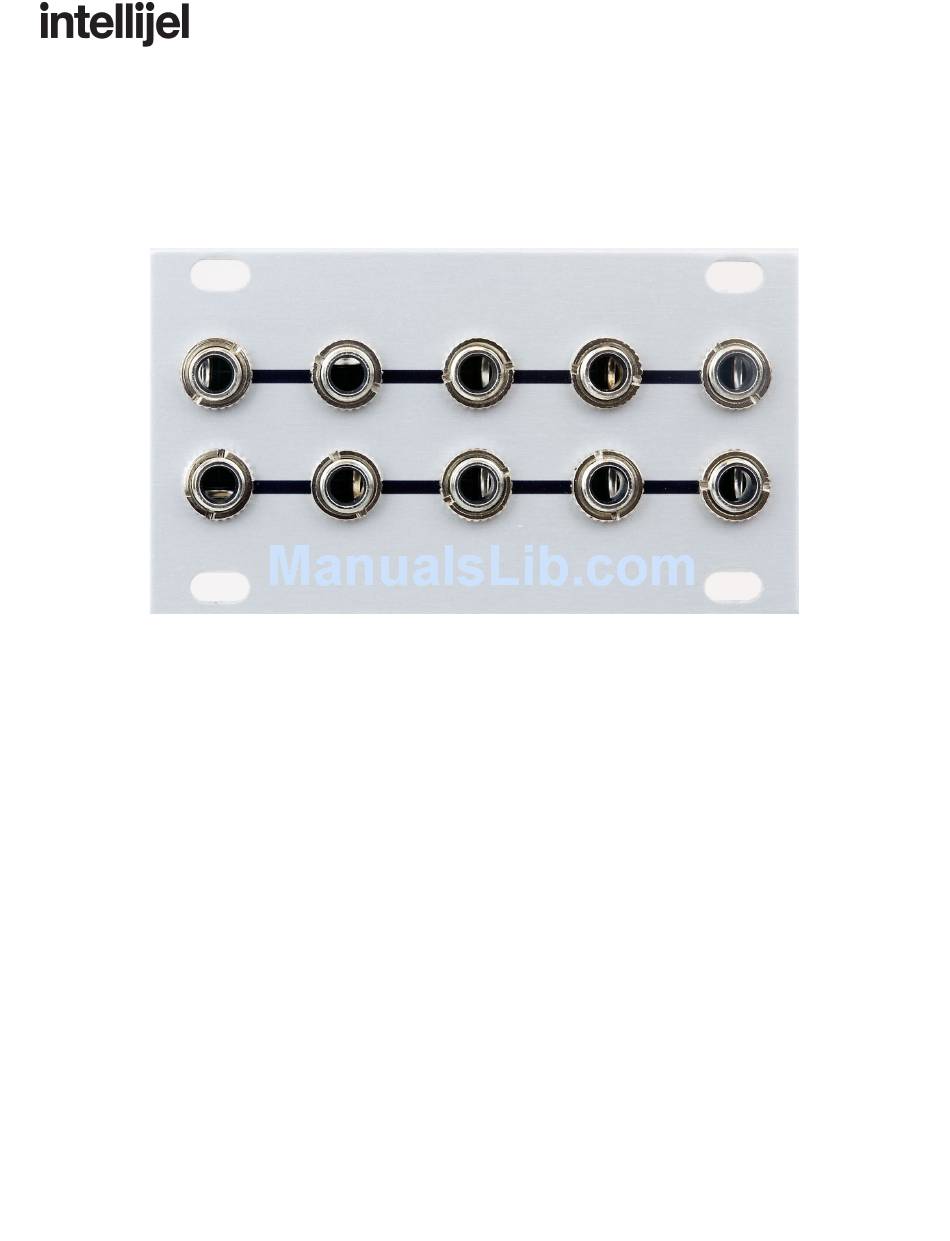

Mult 1U Manual Mult 1U Dual 5-Way Passive Multiple Manual Revision: 2018.03.26 ...
Page 2
Installation This module is designed for use within an Intellijel-standard 1U row, such as contained within the Intellijel 4U and 7U Eurorack cases. Intellijel’s 1U specification is derived from the Eurorack mechanical specification set by Doepfer that is designed to support the use of lipped rails ...
Page 3
Mult 1U Manual Operation Mult 1U is a dual 5-way passive signal multiplier. A signal multiplier takes one input signal and routes it to multiple outputs simultaneously. For example, you might want a keyboard’s gate CV ...
Page 4
Mult 1U is divided into two sections — upper and lower. Each section is its own 5-way passive multiplier, completely independent of the other. Plug an audio or CV signal into any of the five top jacks [1], and Mult 1U sends an unbuffered ...
